本技術規范適用于3.45“彩色TFT-LCD面板。這個3.45英寸的彩色TFT-LCD面板是為GPS、攝像機、數碼相機應用程序和其他需要高質量平板顯示器的電子產品而設計的。此模塊遵循RoHS。
高分辨率： 230,400個點（320 RGB x 240）FW035TFT。是一種采用非晶薄膜晶體管（TFT）作為開關器件的傳輸型彩色有源矩陣液晶顯示器（TFT）。本產品由TFT液晶面板、驅動ic、FPC和背光單元組成。
This technical specification applies to 3.45“color TFT-LCD panel. The 3.45“ color TFT-LCD
panel is designed for GPS, camcorder, digital camera application and other electronic products
which require high quality flat panel displays.
This module follows RoHS.

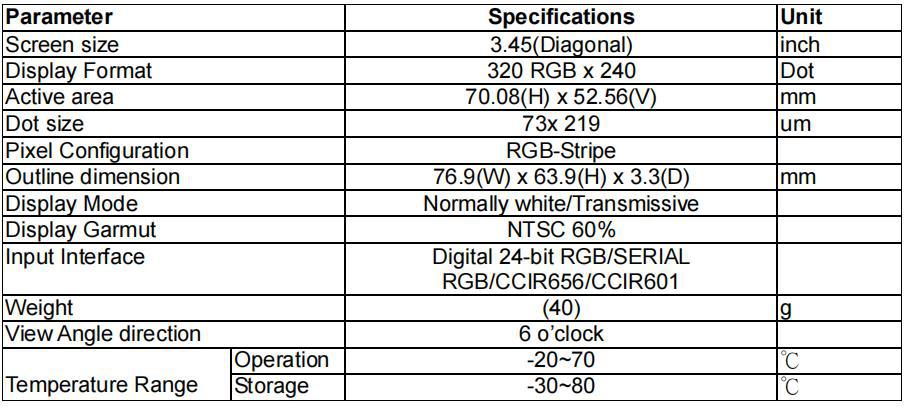

High Resolution: 230,400 Dots (320 RGB x 240) FW035TFT is a transmissive type color
active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as
switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a
backlight unit.
