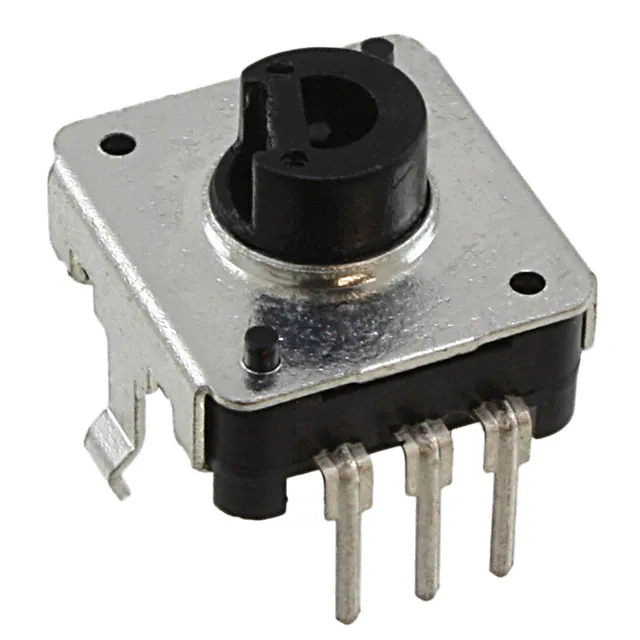

ENCODER, VERTICAL, 18PPR + SW; Supply Voltage Min: -; Supply Voltage Max: 5V; No. of Channels: 2Channels; Rotational Speed Max: -; Product Range: -; SVHC: No SVHC (20-Jun-2016); Connector Type: Pin; Encoder Resolution: 18; External Depth: 11.7mm; External Length / Height: 4.5mm; External Width: 12mm; No. of Detents: 0; No. of Pulses Per Revolution: 18; Operating Temperature Max: 85°C; Operating Temperature Min: -30°C; Operating Temperature Range: -30°C to +85°C; Pulse Output Count: 18; Rotation Mechanical Angle: 360°; Rotational Life Cycles: 15000; Shaft Diameter: 6mm; Shaft Length: 20mm; Supply Current: 10mA; Supply Voltage V DC: 5V; Torque: 7mN-m; Type: Vertical
ALPSALPINE
