關鍵詞： Powerint , LNK460KG , LED驅動

Powerint公司的LinkSwitch-PL系列產品集成了725V功率MOSFET,間斷模式可變頻率可變開態時間控制器,頻率抖動器,逐個周期的限流和滯后熱關斷等功能,具有高效率和高功率因素,它的控制算法提供無閃爍TRIAC調光,而外接元件最少.本文介紹了LNK460KG產品亮點,方框圖,典型應用電路,替代A19白熾燈5W 15V LED驅動電路圖以及20W LED驅動演示板主要特性和指標,電路圖,材料清單和PCB元件布局圖.

High Efficiency (>90%), High Power Factor (>0.97), Low A-THD (<15%), 20 W Output Non-Isolated Buck LED Driver Using LinkSwitchTMPL LNK460KGHigh Efficiency (>90%), High Power Factor (>0.97), Low A-THD (<15%), 20 W Output Non-Isolated Buck LED Driver Using LinkSwitchTMPL LNK460KG

The LinkSwitch-PL family enables a very small and low cost single-stage power factor corrected constant current driver for solid state lighting. Optimized for direct LED current sensing, the LinkSwitch-PL operates over a wide input voltage range delivering an output power of up to 16 W. The LinkSwitch-PL control algorithm provides flicker-free TRIAC dimming with minimal external components.

Each device incorporates a 725 V rated power MOSFET, a novel discontinuous mode variable frequency variable on-time controller, frequency jitter, cycle by cycle current limit and hysteretic thermal shutdown in a monolithic 4-pin IC, available in SO-8C, eSOP-12, and eDIP-12 packages.

LNK460KG產品亮點:

Dramatically Simplifies Off-line LED Drivers

• Flicker-free phase-controlled TRIAC dimming

• Single stage power factor correction and accurate constant current (CC) output

• Very low component count with small non-electrolytic bulk capacitor for compact replacement lamp designs

• Compact SO8, eSOP, and eDIP packages

• Completely eliminates control loop compensation

Advanced Performance Features

• Optimized for non-isolated flyback designs

• Frequency jitter greatly reduces EMI filter size and costs

• Low dissipation direct sensing of LED current

Advanced Protection and Safety Features

• Cycle skipping regulation for abnormally low output power to clamp peak output current delivered

• 725 V integrated power MOSFET allows small bulk capacitance and maximizes power capability

• Short-circuit, overload, open feedback and output overvoltage protection

• Hysteretic thermal shutdown

• Meets high-voltage creepage between DRAIN and all other pins both on PCB and at package

EcoSmart™ - Energy Efficient

• High power factor optimizes system lumen per input VA

• Control algorithm balances switching and conduction losses over line and load to maintain optimum efficiency

2012-8-21 11:16:17 上傳

下載附件 (18.36 KB)

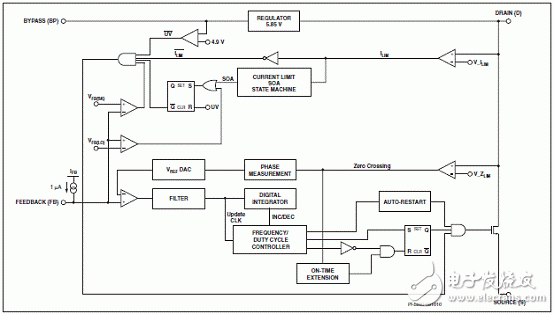

圖1.LNK460KG方框圖

2012-8-21 11:16:15 上傳

下載附件 (12.77 KB)

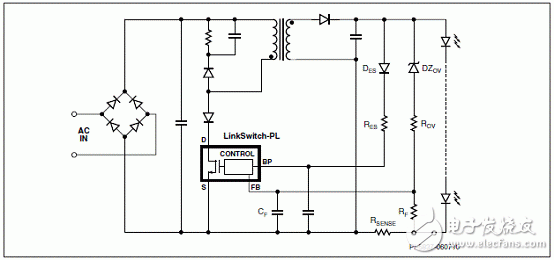

圖2.LNK460KG典型應用電路圖

2012-8-21 11:16:15 上傳

下載附件 (22.22 KB)

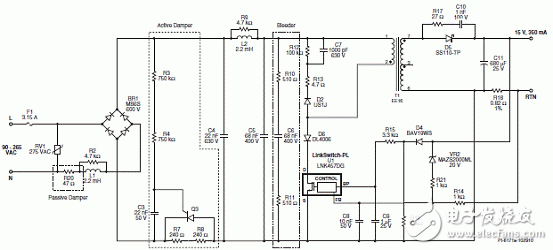

圖2.替代A19白熾燈5W 15V LED驅動電路圖

20W LED驅動演示板

The document describes a non-isolated, high efficiency, high power factor (PF) LED driver designed to drive a nominal LED string voltage of 85 V at 240 mA from an input voltage range of 195 VAC to 265 VAC (47 Hz – 63 Hz). The LED driver utilizes the LNK460KG from the LinkSwitch-PL family of ICs.

The topology used is a single-stage non-isolated buck that meets the stringent space and efficiency requirements for this design. LinkSwitch-PL based designs provide high power factor (>0.9) meeting international requirements.

This document contains the LED driver specification, schematic, PCB details, bill of materials, transformer documentation and typical performance characteristics.

20W LED驅動演示板主要特性:

 Low cost, low component count (29 parts), small size (height <8 mm), and single-sided PCB

 Single-stage power factor correction and constant current (CC) output

 Highly energy efficient, >90%

 Integrated protection and reliability features

 Output short-circuit protection with auto-recovery

 Auto-recovering thermal shutdown with hysteresis

 No damage during brown-out conditions

 PF >0.97, % ATHD <15% at nominal 230 VAC input

 Easily meets Class C harmonic requirement (>25 W) even with multiple tubes in parallel operation

 Meets 1 kV differential line surge and EN55015 conducted EMI
