Cirrus公司的CS1630和CS1631是高性能離線AC/DC LED驅動器,采用Cirrus公司的數字調光控制技術和數字相關彩色溫度(CCT)控制系統,能進行兩路LED色彩混合. CS1630用于120VAC,CS1631用于230VAC火線電壓, 主要用于可調光LED燈和LED照明,高CRI照明,離線LED驅動器和商用照明.本文介紹了CS1630和CS1631主要特性, 典型應用電路,以便及CRD1631-9W 9瓦參考設計主要特性,電路圖,反激變壓器和電感電路圖和材料清單.

The CS1630 and CS1631 are high-performance offline AC/DC LED drivers for dimmable and high color rendering index (CRI) LED replacement lamps and luminaires. It features Cirrus Logic’s proprietary digital dimmer compatibility control technology and digital correlated color temperature (CCT) control system that enables two-channel LED color mixing. The CS1630 is designed for 120VAC line voltage applications, and the CS1631 is optimized for 230VAC line voltage applications.

The CS1630/31 integrates a critical conduction mode boost converter, providing power factor correction and superior dimmer compatibility with a primary-side regulated quasi-resonant second stage, which is configurable for isolated and non-isolated topologies. The digital CCT control system provides the ability to program dimming profiles, such as constant CCT dimming and black body line dimming. The CS1630/31 optimizes LED color mixing by temperature compensating LED current with an external NTC. The IC controller is also equipped with power line calibration for remote system calibration and end-of-lineprogramming. The CS1630/31 provides a register lockout feature for security against potential access to proprietary registers.

CS1630和CS1631主要特性:

• Best-in-class Dimmer Compatibility

- Leading-edge (TRIAC) Dimmers

- Trailing-edge Dimmers

- Digital Dimmers (with Integrated Power Supply)

• Correlated Color Temperature (CCT) Control System

• Up to 85% Efficiency

• Flicker-free Dimming

• Programmable Dimming Profile

- Constant CCT Dimming

- Black Body Line Dimming

• 0% Minimum Dimming Level

• Temperature Compensated LED Current

• End-of-line Programming Using Power Line Calibration

- Lower LED Binning Requirement

• Programmable Series or Parallel 2-Channel Output

- Interleaved Output Eliminates Additional Transformer

• Programmable Quasi-resonant Second Stage with Constant-current Output

- Flyback, Buck, and Tapped Buck

• Register Lockout

• Fast Startup

• Tight LED Current Regulation: Better than ±5%

• Primary-side Regulation (PSR)

• >0.9 Power Factor

• IEC-61000-3-2 Compliant

• Soft Start

• Protections:

- Output Open/Short

- Current-sense Resistor Open/Short

- External Overtemperature Using NTC

CS1630和CS1631應用:

• Dimmable Retrofit LED Lamps and LED Luminaries

• High CRI Lighting

• Offline LED Drivers

• Commercial Lighting

2012-5-29 13:21:05 上傳

下載附件 (24.57 KB)

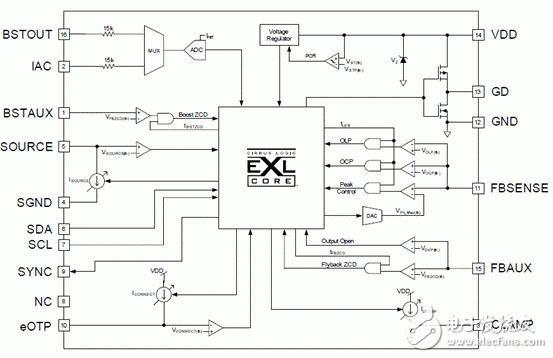

圖1.CS1630/31方框圖

2012-5-29 13:21:05 上傳

下載附件 (18.06 KB)

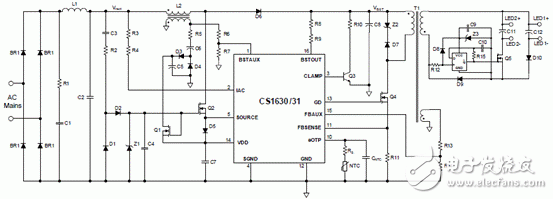

圖2.CS1630/31典型應用電路圖

CRD1631-9W 9瓦參考設計

The CRD1631-9W reference design demonstrates the performance of the CS1631 resonant mode AC/DC dimmable LED driver IC with constant current output driving 419mA for white LEDs and 190mA for red LEDs in series 2 channel output configuration. It offers best-in-class dimmer compatibility with leading-edge, trailing-edge, and digital dimmers. Additionally, it offers superior 2 channel control with single channel LED temperature compensation for LED color mixing applications. The form factor is targeted to fit into many LED bulb applications (A19, PAR).

CRD1631-9W 9瓦參考設計主要特性:

• Quasi-resonant Flyback with Constant-current Output

• Independent Regulation for Series 2 Channel Output

• Flicker-free Dimming

• Line Voltage 230VAC, ±10%

• Rated Input Power: 9.72W

• Rated Output Power: 7.32W

• Efficiency: 75.33% at 419mA for 4 White LEDs and 190mA for 5 Red LEDs in Series 2 Channel Output

• Red LEDs Output Voltage: VRED = 10V

• White LEDs Output Voltage: VWHITE = 12.96V

• Fast Startup

• Tight LED Current Regulation: < ±5%

• Supports Cirrus Logic Product CS1631

2012-5-29 13:21:05 上傳

下載附件 (116.76 KB)
