關鍵詞： GreenChip , LED照明 , NXP , SSL2109T
NXP 公司的SSL2109T是高壓集成電路,是GreenChip LED照明控制器,具有小PCB面積,效率高達95%.參考設計能工作在230V(50 Hz)或120VAC(50 Hz 或60 Hz),輸出電壓30V或更高,最大輸出功率23W.本文介紹了SSL2109T主要特性,方框圖,典型應用電路以及參考設計板主要特性和指標,電路圖,材料清單和PCB布局圖.
2012-7-12 19:49:19 上傳
SSL2109T主要特性
•小型印刷電路板（PCB），和緊湊的解決方案
•高效率（高達95％）
•易于集成，具有多保護功能
•經濟的電子物料清單（BOM）
該IC是SSL2108X系列的補充，但沒有內部開關，采用一個內部高壓電流源，從高壓電源直接啟動。dV/dt電源和漏電電容耦合，或任何其他的輔助電源一起被使用。此功能提供了應用設計的充分的靈活性。內部鉗位來限制電源電壓。
該IC提供準確的輸出電流控制（在5％以內的LED電流精度）。 可使用脈沖寬度調制（PWM）調光操作，并具有多種保護功能，包括便捷的LED溫度反饋。

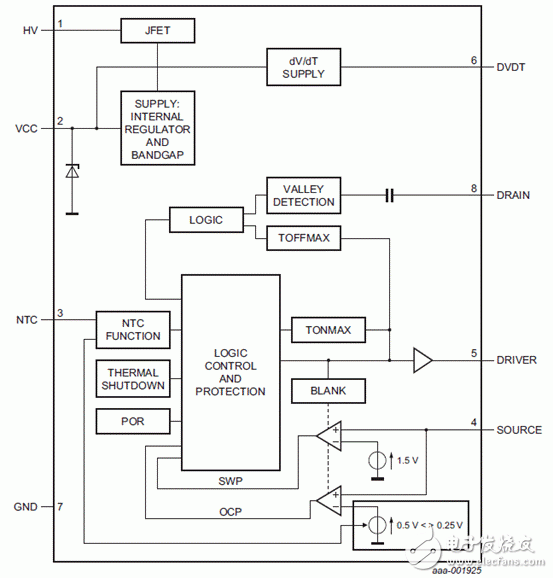

圖1 SSL2109T方框圖
2012-7-12 19:49:19 上傳
下載附件 (10.24 KB)圖2 SSL2109T基本應用框圖
SSL2109T性能
• LED控制器IC用于驅動LED串，或高電壓LED模塊（從整流電源）
•高效率開關模式的一部分，驅動器產品系列降壓
•控制器，具有功率效率邊界傳導操作模式
–freewheel二極管沒有反向恢復損耗
–開關導通零電流開關（ZCS）
–開關關閉的零電壓或山谷開關
–電感值和大小較小化
–直接PWM調光
•通過逐周期電流控制，快速瞬態響應
–可以忽略不計的LED電流電源紋波和總電容值
– LED電流沒有過流，或低流
–所需LED的正向電壓沒有分級
•內部保護
–欠壓鎖定（UVLO）
–前沿消隱（LEB）
–過流保護（OCP）
–短繞組保護（SWP）
–內部過熱保護（OTP）
–掉電保護
–輸出短路保護（OSP）
•低元件數量LED驅動器解決方案
–沒有PWM調光所需的調光開關，和高邊驅動器
–單一的NTC，容易外部溫度保護
–軟啟動的功能選項
–在待機時，兼容內置指示燈墻壁開關
– IC的壽命很容易匹配，超過LED燈的壽命
2012-7-12 19:49:19 上傳
下載附件 (16.44 KB)圖3 SSL2109T典型應用電路圖
2012-7-12 19:49:19 上傳
下載附件 (15.03 KB)圖4 SSL2109參考板電路圖
SSL2109T應用
SSL2109T可用于緊湊，小型的LED燈及單電源輸入電壓，精確的固定電流輸出。主電源輸入電壓包括，100V，120V和230V（交流）。使用PWM信號，其輸出信號可調制,其電壓的范圍由外部元件決定。
SSL2109參考板
SSL2109是恩智浦半導體的控制器IC，旨在提供低成本，小尺寸的LED驅動器。該參考板工作電壓為230V或120V（交流），使用30V或更高的輸出電壓。
該參考板優化了230V（50Hz）或120V（50Hz或60Hz）的主電源板。除了主電源電壓的優化外，該板可以與多個LED一起工作，或與一個具有較高正向電壓的LED模塊一起工作。其主電源電壓的連接不同于其他一般的評估/參考板。電源與螺絲連接器J6連接。
The SSL2109T is a high-voltage Integrated Circuit (IC), intended to drive LED lamps in general lighting applications.
SSL2109T主要特性:
•Small Printed-Circuit Board (PCB) footprint, and compact solution
•High efficiency (up to 95 %)
•Ease of integration and many protection features
•Low electronic Bill Of Material (BOM)
The IC is supplementary to the SSL2108X series, but without internal switch. The IC range has been designed to start up directly from the HV supply by an internal high-voltage current source. Thereafter, the dV/dt supply is used with capacitive coupling from the drain, or any other auxiliary supply. This functionality provides full flexibility in the application design. An internal clamp limits the supply voltage.
The IC provides accurate output current control to within 5 % LED current accuracy. The IC can be operated using Pulse-Width Modulation (PWM) dimming and has many protection features including easy LED temperature feedback.
SSL2109T性能和優勢:
LED controller IC for driving strings of LEDs or high-voltage LED modules from a rectified mains supply
part of a high-efficiency switch mode buck driver product family
Controller that has power-efficient boundary conduction mode of operation with:
No reverse recovery losses in freewheel diode
Zero Current Switching (ZCS) for switch turn-on
Zero voltage or valley switching for switch turn-off
Minimal required inductance value and size
Direct PWM dimming possible
Fast transient response through cycle-by-cycle current control:
Negligible AC mains ripple in LED current and minimal total capacitor value
No over or undershoots in the LED current
No binning on the LED forward voltage required
Internal Protections:
UnderVoltage LockOut (UVLO)
Leading-Edge Blanking (LEB)
OverCurrent Protection (OCP)
Short-Winding Protection (SWP)
Internal OverTemperature Protection (OTP)
Brownout protection
Output Short Protection (OSP)
Low component count (see Figure 3) LED driver solution:
No dim switch and high-side driver required for PWM dimming
Easy external temperature protection with a single NTC
Option for soft-start function
Compatible with wall switches with built-in indication light during standby
IC lifetime easily matches or surpasses LED lamp lifetime
SSL2109T應用:
The SSL2109T is intended for compact LED lamps with accurate fixed current output for single mains input voltages. Mains input voltages include 100 V, 120 V and 230 V (AC). The output signal can be modulated using a PWM signal. The power range is determined by external components.
