基于TI TPS6206x 的3MHz 高效2A DC電源轉(zhuǎn)換方案

TI 公司的TPS6206x 系列是3MHz 高效同步降壓DC/DC電源轉(zhuǎn)換器，輸出電流高達2A。輸入電壓從3V到6V，效率高達97%。主要應用在POL，筆記本電腦，手持媒體播放器和DSP電源。本文介紹了TPS6206x 主要特性，方框圖，典型應用電路以及評估板TPS62065-67EVM電路圖和材料清單（BOM）。

The TPS6206x is a family of highly efficient synchronous step down DC-DC converters. They provide up to 2.0A output current.

With an input voltage range of 3.0V to 6V the device is a perfect fit for power conversion from a 5V or 3.3V system supply rail. The TPS6206x operates at 3MHz fixed frequency and enters Power Save Mode operation at light load currents to maintain high efficiency over the entire load current range. The Power Save Mode is optimized for low output voltage ripple. For low noise applications, TPS62065 can be forced into fixed frequency PWM mode by pulling the MODE pin high. TPS62067 provides an open drain power good output.

In the shutdown mode, the current consumption is reduced to less than 1μA and an internal circuit discharges the output capacitor.

TPS6206x 主要特性：

3 MHz Switching Frequency

V_IN Range from 3.0V to 6V

Up to 97% Efficiency

Power Save Mode/3MHz Fixed PWM Mode

Power Good Output

Output Voltage Accuracy in PWM Mode ±1.5%

Output Capacitor Discharge Function

Typical 18 μA Quiescent Current

100% Duty Cycle for Lowest Dropout

Voltage Positioning

Clock Dithering
Supports Maximum 1mm Height Solutions

Available in a 2x2x0.75mm SON

TPS6206x 應用：

POL

Notebooks, Pocket PCs

Portable Media Players

DSP Supply

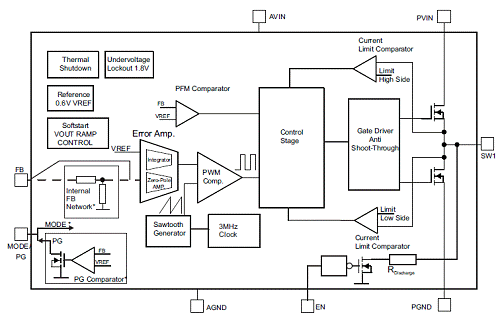

圖1。TPS6206x方框圖

TPS6206x 典型應用電路

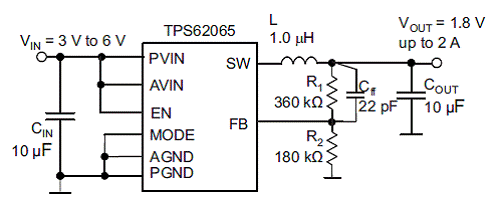

圖2。TPS62065 1.8V 可調(diào)輸出電壓電路圖

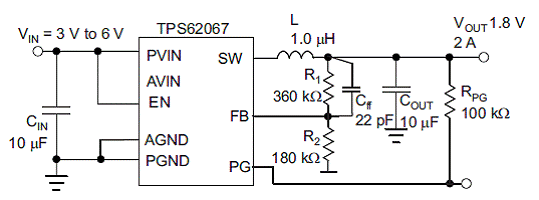

圖3。TPS62067 1.8V 可調(diào)輸出電壓電路圖

評估板TPS62065-67EVM-347

The TPS62065-67EVM-347 is a fully assembled and tested pair of PCBs for evaluating the TPS62065 and TPS62067 2-A step-down converters. The EVM comes configured with both a TPS62065 IC and a TPS62067 IC; there are two PCBs, one for each respective step-down converter IC.

評估板TPS62065-67EVM-347主要特性：

? Input voltage range: 3.0 V to 6.0 V

? Adjustable output voltage: 0.8 V to VIN

? Up to 2.0-A output current

? 3-MHz switching frequency

? Power Good output (TPS62067EVM only)

? Clock dithering

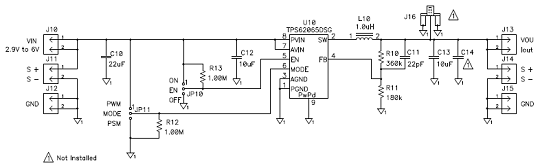

圖4。TPS62065EVM電路圖

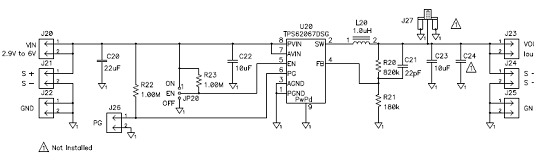

圖5。TPS62067EVM電路圖

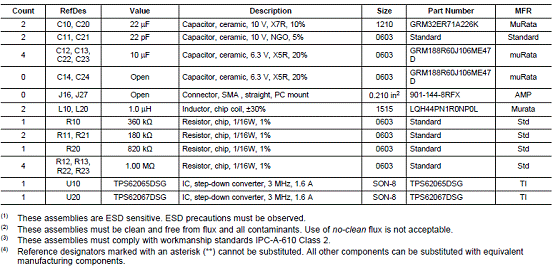

TPS62065/67EVM材料清單（BOM）：
