MIC2829是Micrel公司的高度集成的電源管理集成電路(PMIC),設計用于3G/4G (HEDGE/LTE 與WiMAX) USB無線應用. MIC2829是完整的電源管理解決方案,能給處理器,雙路標準的RF(如HEDGE/LTE 或WiMAX)收發器,功率放大器,存儲器, USB-PHY相關的I/O接口和其它系統要求提供電源.輸入電壓為2.7V-5.5V,有六個DC降壓穩壓器,兩個PWM降壓穩壓器和11個LDO.主要應用在4G LTE USB調制解調器,3G/4G (HEDGE/LTE)無線芯片組,WiMAX調制解調器,Express卡調制解調器,UMPC/筆記本電腦無線數據通信以及手提設備.本文介紹了MIC2829主要特性,方框圖, 典型應用框圖及其材料清單, MIC2829 評估板電路圖和所用板材料清單(BOM).

3G/4G HEDGE/LTE PMIC with Six Buck Converters, Eleven LDOs and SIM Card Level Translation

The MIC2829 is a highly integrated Power Management Integrated Circuit (PMIC) designed for 3G/4G (HEDGE/LTE and WiMAX) USB wireless applications. It is a complete power management solution which provides power to processors, dual standard RF (such as HEDGE/LTE or WiMAX) transceivers and power amplifiers, memory, USB-PHY associated I/O interfaces and other system requirements.

The MIC2829 incorporates six DC/DC buck converters, eleven LDOs and digital level shifters for SIM Card support inside a single package. Four of the six integrated DC/DC buck converters incorporate HyperLight Load TM (HLL) technology. Each of these buck regulators operate at high switching speed in PWM mode (4MHz/2.5MHz) and maintain high efficiency in light load conditions. The high speed PWM operation allows the use of very small inductors and capacitors minimizing board area while the HLL mode enables 87% efficiency at 1mA. HyperLight Load TM technology also has unmatched load transient response to support advance portable processor requirements.

The remaining two DC/DC buck converters support 100% duty cycle operation and can deliver greater than 96% efficiency. This allows pre-regulation of system LDOs for high efficiency power system partitioning.

The MIC2829 has eleven low dropout regulators (LDOs). Five general purpose LDOs provide low dropout, excellent output accuracy of ±3% and only require 40 μA of ground current for each to operate. The remaining six are high performance Low Noise Regulators (LNRs) provide high PSRR and low output noise for sensitive RF subsystems. Each LNR requires only 20 μA of ground current to operate. The MIC2829 also has three high speed level shifters for digital SIM Card signal translation and a 50mA SIM power supply.

The MIC2829 is available in a 76-pin 5.5mm x 5.5mm LGA package with an operating junction temperature range from –40℃ to +125℃.

MIC2829主要特性:

Input voltage range: 2.7V to 5.5V

Six DC Step-Down Regulators

Four HyperLight LoadTM step-down regulators

- Low quiescent current – typical 40 μA

- DC1: 4MHz / 1000mA

- DC2: 4MHz / 300mA (with voltage scaling)

- DC3: 2.5MHz / 600mA

- DC4: 4MHz / 600mA (with adjustable delay POR)

Two PWM step-down regulators

- DC5 and DC6: Fixed 2MHz / 800mA

- 100% duty cycle

Eleven Low Dropout Regulators (LDOs)

Five general purpose 200mA LDOs (LDO1-4, LDO11)

- LDO3: 38mV dropout at 100mA

- LDO2 and LDO4: 80mV dropout at 100mA

- LDO1 and LDO11: 115mV dropout at 100mA

- Output accuracy ± 3%

- 40μA ground current

Six high performance 200mA LNRs (LDO5-10)

- High PSRR 70dB at 1kHz

- Low noise: 20 μV RMS

- 40mV dropout at 100mA

- Output accuracy ± 3%

- 20μA ground current

SIM card level translator

SIM card power supply (50mA)

Thermal shutdown and current limit protection

UVLO – under voltage lockout protection

76-pin 5.5mm x 5.5mm LGA package

–40℃ to +125℃ operating junction temperature range

MIC2829應用:

? 4G LTE USB modems

? 3G/4G (HEDGE/LTE) wireless chipsets

? WiMAX modems

? Express card modems

? UMPC/notebook PC wireless data communications

? Portable applications

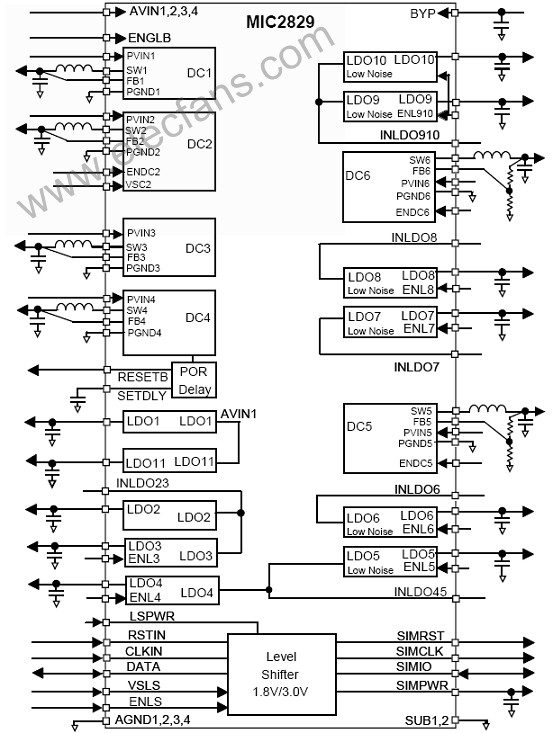

圖1.MIC2829功能方框圖

圖2.MIC2829典型應用框圖

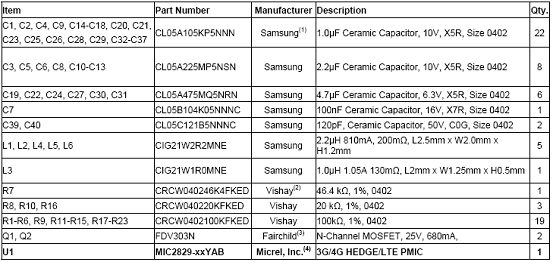

典型應用材料清單(BOM):

MIC2829評估板

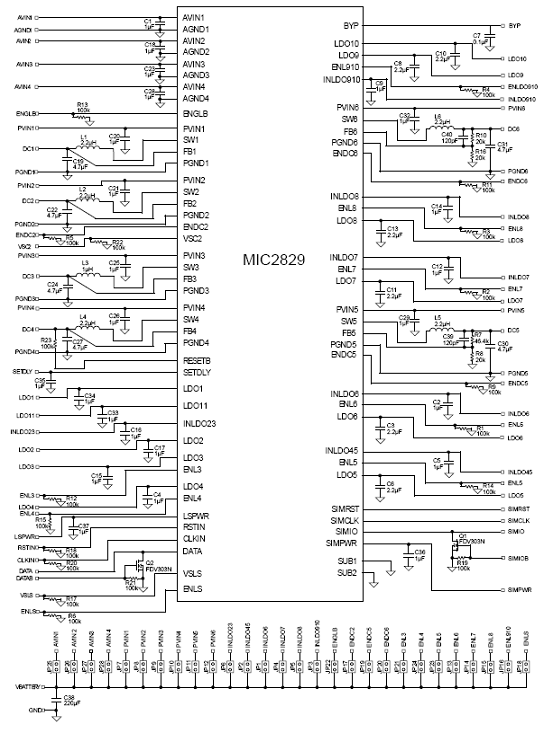

圖3.MIC2829 評估板電路圖

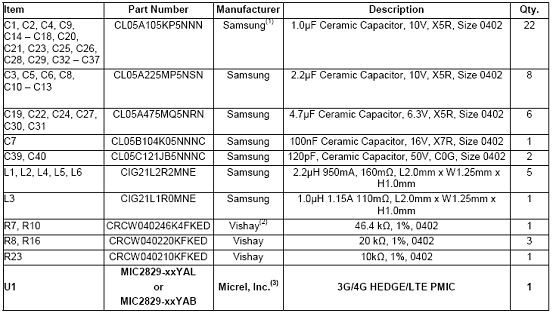

MIC2829 評估板材料清單(BOM):
