1 簡介

本文基于 RK3506開發板的監控系統的詳細方案與實現流程，結合硬件選型、軟件部署、算法優化和系統集成實現一套“低功耗、可離線、可遠程”的輕量級智能監控系統。系統架構如下所示。

2 系統功能

1、識別能力

? 識別速度：< 300 ms（含活體）

? 準確率：≥ 99.5 %

2、監控邏輯

? 事件觸發 → 本地 JPG 截圖并保存 + MQTT 告警 → 微信群通知

? MQTT 上報記錄（JSON：ID、時間、抓拍圖 base64）

? 與安防系統聯動：安防信號輸入→觸發視頻監控→上傳報警視頻

3、管理后臺

? Web 端（Python+ Django）

? 支持 HTTPS Web 端、微信小程序、企業微信推送

? HTTP RESTful API（遠程監控、參數配置）

3 硬件架構

1、計算平臺

? 睿擎派，采用 Rockchip處理器 RK3506（三核 Cortex-A7+單核Cortex-M0, 主頻最高1.5GHz）,

2、視覺采集

? USB 攝像頭，視頻數據采集入口

3、網絡與交互

? 100 M 以太網

4、人體檢測模塊

? 安信可RD-03_V2雷達模組，感應警報、配合攝像頭觸發聯動

4 軟件與算法棧

4.1 系統鏡像

? RuiChing_RC-Pi-3506_Firmware_SMP_FACTORY_V1.5.0.img

4.2 視頻推流實現

這里使用USB攝像頭作為視頻流。核心組件如下：

• WebNet HTTP 服務器：處理 HTTP 請求和響應
• UVC 設備驅動：USB 視頻類設備采集
• MJPEG 流協議：基于 multipart/x-mixed-replace 的流式傳輸

核心代碼如下：

#include < rtthread.h >
#include < stdio.h >
#include < stdlib.h >
#include < string.h >
#include < webnet.h >
#include < wn_module.h >
#include < fcntl.h >
#include < unistd.h >

#define DBG_TAG "webnet.video"
#define DBG_LVL DBG_INFO
#include < rtdbg.h >

#define RT_UVC_CTRL_SET_CALLBACK          0x0             /**< Set the callback control command */
#define RT_UVC_CTRL_START_STREAM          0x1             /**< Start the video stream control command */
#define RT_UVC_CTRL_STOP_STREAM           0x2             /**< Stop the video stream control command */

struct usbh_videoframe
{
    uint8_t *frame_buf;
    uint32_t frame_size;
};

static struct webnet_session* g_session = RT_NULL;
static struct rt_device *uvc_device = RT_NULL;
static rt_bool_t stream_running = RT_FALSE;

static const char* boundary = "frame";
static const char* mimetype = "multipart/x-mixed-replace; boundary=";

static void video_frame_callback(struct usbh_videoframe *frame)
{
    if (stream_running && g_session)
    {
        webnet_session_printf(g_session, "Content-Type: image/jpegrnrn");
        webnet_session_write(g_session, frame- >frame_buf, frame- >frame_size);
        webnet_session_printf(g_session, "rn--%srn", boundary);
    }
}

static void cgi_mjpeg_stream_handler(struct webnet_session* session)
{
    uint8_t type = 1;

    g_session = session;
    RT_ASSERT(g_session != NULL);

    /*Initialize the UVC device*/
    if (!uvc_device)
    {
        uvc_device = rt_device_find("uvc");
        if (!uvc_device)
        {
            LOG_E("uvc equipment cannot be found");
            return;
        }
        rt_device_init(uvc_device);
        rt_device_open(uvc_device, RT_DEVICE_FLAG_RDWR);
    }

    /*Set the response header*/
    char content_type[64];
    rt_snprintf(content_type, sizeof(content_type), "%s%s", mimetype, boundary);
    g_session- >request- >result_code = 200;
    webnet_session_set_header(g_session, content_type, 200, "OK", -1);
    webnet_session_printf(g_session, "--%srn", boundary);

    /* Start the UVC stream */
    rt_device_control(uvc_device, RT_UVC_CTRL_SET_CALLBACK, (void *) video_frame_callback);
    rt_device_control(uvc_device, RT_UVC_CTRL_START_STREAM, &type);

    stream_running = RT_TRUE;
    LOG_I("The video stream has been started");

    while (stream_running)
    {
        char read_buf[32];
        int read_len;
        read_len = webnet_session_read(g_session, read_buf, sizeof(read_buf) - 1);
        if (read_len < 0)
        {
            LOG_I("The client connection has been disconnected（read_len = %d，errno = %d）", read_len, errno);
            stream_running = RT_FALSE;
        }
        rt_thread_mdelay(33);
    }

    g_session = RT_NULL;
    LOG_I("cgi_mjpeg_stream_handler exits");

}

/* WebNet initialization function */
void webnet_video_init(void)
{

#ifdef WEBNET_USING_CGI
    /* Register for video processing CGI */
    webnet_cgi_register("mjpeg_stream", cgi_mjpeg_stream_handler);
#endif

    webnet_init();

}

#ifdef FINSH_USING_MSH
MSH_CMD_EXPORT(webnet_video_init, initialize video stream server);
#endif

4.3 人體檢測

安信可Rd-03_V2搭載矽典微的 S1KM0000芯片、 高性能 24GHz 一發一收天線和外圍電路。 S1KM0000 是一種基于 FMCW 雷達收發器技術的集成單片機毫米波傳感器 SoC。 利用 FMCW 調頻連續波， 對設定空間內的目標進行探測。 結合雷達信號處理， 實現高靈敏度的運動檢測和微動檢測。Rd-03_V2 版模組對運動人體的最遠感應距離為 7m， 可感知區域內是否有運動或者微動的人體，實現實時檢測結果。

核心代碼如下：

#define INPUT_GPIO  0 // 定義.0號為輸入引腳
static rt_ssize_t g_pin_value =  0;

static void gpio_isr(void *args) // gpio 中斷回調函數
{
    g_pin_value = rt_pin_read((INPUT_GPIO));
    if(g_pin_value > 0)
    {
        LOG_I("input gpio %d irq trigger, level is %d", INPUT_GPIO, g_pin_value);
    }
}

static void gpio_interrupt_enable(void)
{
    rt_pin_mode(INPUT_GPIO, PIN_MODE_INPUT);   // 設置引腳為輸入模式

    // 設置 引腳為中斷模式，并且綁定中斷觸發回調函數
    rt_pin_attach_irq(INPUT_GPIO, PIN_IRQ_MODE_RISING_FALLING, gpio_isr, RT_NULL);
    rt_pin_irq_enable(INPUT_GPIO, PIN_IRQ_ENABLE);
}

static void gpio_interrupt_disable(void)
{
    // 取消 0 號引腳的中斷綁定
    rt_pin_detach_irq(INPUT_GPIO);
    rt_pin_irq_enable(INPUT_GPIO, PIN_IRQ_DISABLE);
}

當檢測到人體會，會將該事件傳遞給RK3506。

4.4 MQTT客戶端

當檢測到人體時，會觸發中斷事件，RK3506則將打開攝像頭截圖并保存到本地，同時推送到云端和微信群，提醒用戶及時查看監控情況。核心代碼如下：

#include < rtthread.h >
#include < rtdevice.h >
#include "paho_mqtt.h"
#include < stdint.h >
#include < stdlib.h >
#include < string.h >

#define DBG_TAG "example.mqtt"
#define DBG_LVL DBG_LOG
#include < rtdbg.h >

/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/
/**
 * MQTT URI farmat:
 * domain mode
 * tcp://iot.eclipse.org:1883
 *
 * ipv4 mode
 * tcp://192.168.10.1:1883
 * ssl://192.168.10.1:1884
 *
 * ipv6 mode
 * tcp://[fe80::20c:29ff:fe9a:a07e]:1883
 * ssl://[fe80::20c:29ff:fe9a:a07e]:1884
 */
#define MQTT_URI               "tcp://192.168.101.222:1883"
#define MQTT_CLIENTID          "rk3506_mqtt"
#define MQTT_USERNAME          "admin"
#define MQTT_PASSWORD          "admin"
#define MQTT_SUBTOPIC          "/rk3506_mqtt/sub"
#define MQTT_PUBTOPIC          "/rk3506_mqtt/pub"
#define MQTT_WILLMSG            "Goodbye!"
#define MQTT_QOS                1
#define MQTT_PUB_SUB_BUF_SIZE   1024
#define MAX_PAYLOAD             128
#define CMD_INFO                "'mqtt_thread_cmd < start|stop >'"
#define PUB_CYCLE_TM            1000


/* Private macro -------------------------------------------------------------*/
/* Private variables ---------------------------------------------------------*/
static rt_thread_t pub_thread_tid = RT_NULL;

/* define MQTT client context */
static MQTTClient client;

static rt_uint32_t pub_count = 0, sub_count = 0;
static int recon_count = -1;
static int is_started = 0;

/* Private function prototypes -----------------------------------------------*/
/* Private functions ---------------------------------------------------------*/

static void mqtt_sub_callback(MQTTClient *c, MessageData *msg_data)
{
    sub_count ++;
    return;
}

static void mqtt_connect_callback(MQTTClient *c)
{
    LOG_I("Start to connect mqtt server");
    return;
}

static void mqtt_online_callback(MQTTClient *c)
{
    LOG_D("Connect mqtt server success");
    recon_count ++;
    return;
}

static void mqtt_offline_callback(MQTTClient *c)
{
    LOG_I("Disconnect from mqtt server");
    return;
}

/**
 * This function create and config a mqtt client.
 *
 * @param void
 *
 * @return none
 */
static void mq_start(void)
{
    /* init condata param by using MQTTPacket_connectData_initializer */
    MQTTPacket_connectData condata = MQTTPacket_connectData_initializer;

    rt_memset(&client, 0, sizeof(MQTTClient));

    /* config MQTT context param */
    {
        client.uri = MQTT_URI;

        /* config connect param */
        rt_memcpy(&client.condata, &condata, sizeof(condata));
        client.condata.clientID.cstring = MQTT_CLIENTID;
        client.condata.keepAliveInterval = 30;
        client.condata.cleansession = 1;
        client.condata.username.cstring = MQTT_USERNAME;
        client.condata.password.cstring = MQTT_PASSWORD;

        /* config MQTT will param. */
        client.condata.willFlag = 1;
        client.condata.will.qos = MQTT_QOS;
        client.condata.will.retained = 0;
        client.condata.will.topicName.cstring = MQTT_PUBTOPIC;
        client.condata.will.message.cstring = MQTT_WILLMSG;

        /* rt_malloc buffer. */
        client.buf_size = client.readbuf_size = MQTT_PUB_SUB_BUF_SIZE;
        client.buf = rt_malloc(client.buf_size);
        client.readbuf = rt_malloc(client.readbuf_size);
        if (!(client.buf && client.readbuf))
        {
            rt_kprintf("no memory for MQTT client buffer!n");
            goto _exit;
        }

        /* set event callback function */
        client.connect_callback = mqtt_connect_callback;
        client.online_callback = mqtt_online_callback;
        client.offline_callback = mqtt_offline_callback;

        /* set subscribe table and event callback */
        client.messageHandlers[0].topicFilter = rt_strdup(MQTT_SUBTOPIC);
        client.messageHandlers[0].callback = mqtt_sub_callback;
        client.messageHandlers[0].qos = MQTT_QOS;

        /* set default subscribe event callback */
        client.defaultMessageHandler = mqtt_sub_callback;
    }

    /* run mqtt client */
    paho_mqtt_start(&client);

    return;

_exit:
    if (client.buf)
    {
        rt_free(client.buf);
        client.buf = RT_NULL;
    }
    if (client.readbuf)
    {
        rt_free(client.readbuf);
        client.readbuf = RT_NULL;
    }
    return;
}

static void show_mqtt_info(void)
{
    char temp[50] = {0};
    LOG_D("r==== MQTT Stability ====n");
    LOG_D("Server: "MQTT_URI"n");
    LOG_D("QoS   : %dn", MQTT_QOS);
    LOG_D("Number of published  packages : %dn", pub_count);
    LOG_D("Number of subscribed packages : %dn", sub_count);
    LOG_D(temp, sizeof(temp), "Packet loss rate              : %.2f%%   n", (float)((float)(pub_count - sub_count) * 100.0f / pub_count));
    LOG_D(temp);
    LOG_D("Number of reconnections       : %dn", recon_count);
}

static void thread_pub(void *parameter)
{
    char payload_buf[MAX_PAYLOAD];

    while (1)
    {
        if(g_pin_value > 0)
        {
            g_pin_value = 0;
            snprintf(payload_buf, sizeof(payload_buf), "{"Persion": 1}" );
            if (!paho_mqtt_publish(&client, QOS1, MQTT_PUBTOPIC, payload_buf))
            {
                ++ pub_count;
                LOG_D(payload_buf);
            }
        }
        rt_thread_delay(PUB_CYCLE_TM);
    }
}

static void mqtt_client_start(void)
{
    if (is_started)
    {
        return;
    }

    mq_start();

    while (!client.isconnected)
    {
        rt_kprintf("Waiting for mqtt connection...n");
        rt_thread_delay(1000);
    }

    pub_thread_tid = rt_thread_create("pub_thread", thread_pub, RT_NULL, 1024, 8, 100);
    if (pub_thread_tid != RT_NULL)
    {
        rt_thread_startup(pub_thread_tid);
    }

    is_started = 1;

    return;
}

static void mqtt_client_stop(void)
{
    MQTTClient *local_client = &client;

    if (pub_thread_tid)
    {
        rt_thread_delete(pub_thread_tid);
    }

    if (local_client)
    {
        paho_mqtt_stop(local_client);
    }
    show_mqtt_info();
    pub_count = sub_count = recon_count = 0;
    is_started = 0;

    LOG_D("==== MQTT Stability stop ====n");
}

static void mqtt_thread_cmd(uint8_t argc, char **argv)
{
    if (argc >= 2)
    {
        if (!strcmp(argv[1], "start"))
        {
            mqtt_client_start();
        }
        else if (!strcmp(argv[1], "stop"))
        {
            mqtt_client_stop();
        }
        else
        {
            LOG_D("Please input "CMD_INFO"n");
        }
    }
    else
    {
        LOG_D("Please input "CMD_INFO"n");
    }
}
MSH_CMD_EXPORT(mqtt_thread_cmd, MQTT THREAD CMD_INFO);

5 監控服務器搭建

監控服務器使用Django開發，另外使用Mosquitto作為MQTT服務器，搭建過程見下文。

5.1 Django相關軟件包安裝

1、Django以及組件安裝

$ pip install django

$ pip install dj_database_url

$ pip install whitenoise

$ pip install django-online-status

$ pip install django requests

或者

$ python3 -m pip install django

2、MySQL 數據庫驅動

$ sudo apt update

$ sudo apt install python3-dev default-libmysqlclient-dev build-essential

#使用 pip 安裝

$ pip install mysqlclient

如果 mysqlclient 安裝困難，可以使用純 Python 實現的替代品：

$ pip install pymysql

然后在 Django 項目的 init .py 中添加：

# yourproject/__init__.py
import pymysql
pymysql.install_as_MySQLdb()

3、WebSocket(AGSI)框架依賴

$ pip install channels channels-redis djangorestframework redis daphne

5.2 MQTT服務器搭建

5.2.1 安裝Mosquitto相關的軟件

#安裝依賴

$ pip install paho-mqtt channels

#安裝 MQTT 代理

$ sudo apt install mosquitto mosquitto-clients

5.2.2 修改 Mosquitto 配置

要修改 Mosquitto 的監聽地址和端口，需要編輯其配置文件。以下是詳細步驟：

1、找到并編輯 Mosquitto 配置文件

配置文件位置

• Ubuntu/Debian: /etc/mosquitto/mosquitto.conf
• Windows: 安裝目錄下的 mosquitto.conf (如 C:Program FilesMosquittomosquitto.conf)
• macOS (Homebrew): /usr/local/etc/mosquitto/mosquitto.conf

編輯配置文件

sudo vi /etc/mosquitto/mosquitto.conf

2、修改監聽設置

在配置文件中添加或修改以下內容：

# 監聽所有網絡接口的默認端口 1883
listener 1883 0.0.0.0

# pid_file /var/run/mosquitto.pid

# persistence true
# 防止重復消息
persistence false
allow_duplicate_messages false

persistence_location /var/lib/mosquitto/

log_dest file /var/log/mosquitto/mosquitto.log

include_dir /etc/mosquitto/conf.d
# 需要身份驗證 (生產環境)
password_file /etc/mosquitto/passwd
allow_anonymous false

3、配置防火墻

#開放 MQTT 端口 (1883)

sudo ufw allow 1883/tcp

#如果使用SSL/TLS

sudo ufw allow 8883/tcp

4、重啟 Mosquitto 服務

sudo systemctl restart mosquitto

5、驗證配置

檢查服務狀態：

sudo systemctl status mosquitto

檢查監聽端口：

sudo netstat -tuln | grep 1883

6、創建用戶 (如果需要身份驗證)

#創建密碼文件

sudo touch /etc/mosquitto/passwd

sudo chmod 777 /etc/mosquitto/passwd

添加用戶

sudo mosquitto_passwd -b /etc/mosquitto/passwd your_username your_password

在配置文件/etc/mosquitto/mosquitto.conf中啟用認證

password_file /etc/mosquitto/passwd

allow_anonymous false

#重啟服務

sudo systemctl restart mosquitto

7、測試連接

使用命令行工具測試

#訂閱測試

$ mosquitto_sub -h your_server_ip -t "test" -u your_username -P your_password

#發布測試 (在另一個終端)

$ mosquitto_pub -h your_server_ip -t "test" -m "Hello MQTT" -u your_username -P your_password

5.3 截圖和消息推動

截圖核心代碼如下：

from celery import shared_task
import requests
from django.core.files.base import ContentFile
from .models import DetectionEvent, CaptureImage

@shared_task
def capture_image_task(event_id):
    """觸發RK3506設備抓拍圖片"""
    try:
        event = DetectionEvent.objects.get(id=event_id)
        device = event.device

        # 調用RK3506設備的抓拍接口
        response = requests.post(
            f'http://{device.ip_address}/',
            json={'event_id': event_id},
            timeout=10
        )

        if response.status_code == 200:
            # 保存圖片
            image_data = response.content
            capture = CaptureImage(event=event)
            capture.image.save(
                f'capture_{event_id}.jpg',
                ContentFile(image_data)
            )
            capture.save()

            # 可選：觸發AI分析
            analyze_image_task.delay(capture.id)

    except Exception as e:
        print(f"Capture image failed: {e}")

消息推送企業微信代碼如下：

import requests
import os
import requests, os, json
from datetime import datetime

class Auto_Message:
    def __init__(self, webhook_key: str):
        self.key = webhook_key

    def send_text(self, msg: str, at_all: bool = False):
        """Push plain text"""
        data = {
            "msgtype": "text",
            "text": {
                "content": msg,
                "mentioned_list": ["@all"]
            }
        }
        send_url = f"https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key={self.key}"
        r = requests.post(send_url, json=data, timeout=5)
        return r.json()

    def upload_file_to_media(self, filepath: str):
         # Upload file - >Return media_id
        upload_url = f"https://qyapi.weixin.qq.com/cgi-bin/webhook/upload_media?key={self.key}&type=file"
        with open(filepath, "rb") as f:
            media = {"media": (os.path.basename(filepath), f, "application/octet-stream")}
            r = requests.post(upload_url, files=media).json()
        media_id = r["media_id"]

        return media_id

    def send_file_to_group(self, filepath: str):
        """Push local files to the enterprise WeChat group"""
        # 1. Upload file - >Return media_id
        media_id = self.upload_file_to_media(filepath)

        # 2. Send file message
        send_url = f"https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key={self.key}"
        data = {"msgtype": "file", "file": {"media_id": media_id}}
        requests.post(send_url, json=data)

    def send_image_to_group(self, image_path: str):
        """
        Push local images to the enterprise WeChat group robot
        :param image_path: Local image absolute or relative path
        :param webhook_key: robot key
        """
        # 1. Upload images to obtain media_id
        media_id = self.upload_file_to_media(filepath)

        # 2. Send picture message
        webhook_url = "https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key={self.key}"
        data = {
            "msgtype": "image",
            "image": {
                "media_id": media_id
            }
        }
        headers = {'Content-Type': 'application/json'}
        requests.post(webhook_url, headers=headers, data=json.dumps(data))

    def send_news(self, articles: list):
        """Send graphic and text messages"""
        url = f"https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key={self.key}"
        payload = {
            "msgtype": "news",
            "news": {"articles": articles}
        }
        r = requests.post(url, json=payload, timeout=5)
        return r.json()

6 性能與可靠性

? 工作溫度：-10 ℃ ~ 55 ℃，無風扇散熱片即可

? 掉電保護：超級電容保證 50 ms 數據 flush，避免庫損壞

7 統演示

7.1 監控服務器開啟

筆者使用Ubuntu22.04作為監控服務器平臺，使用 Daphne 作為 ASGI 服務器，同時配置為自啟動。開啟監控服務命令如下：

$ daphne monitor.asgi:application -b 192.168.101.222 -p 8000

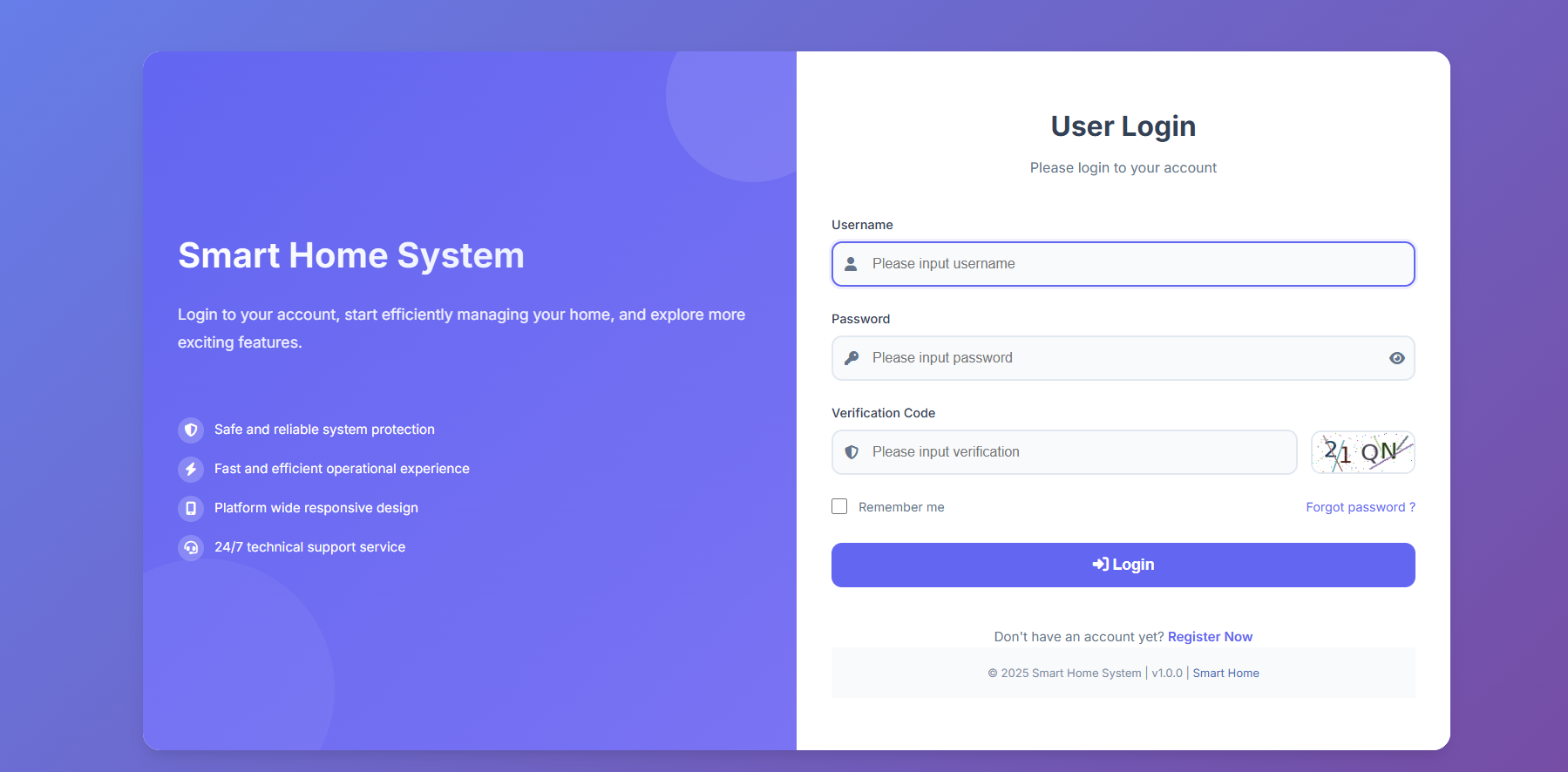

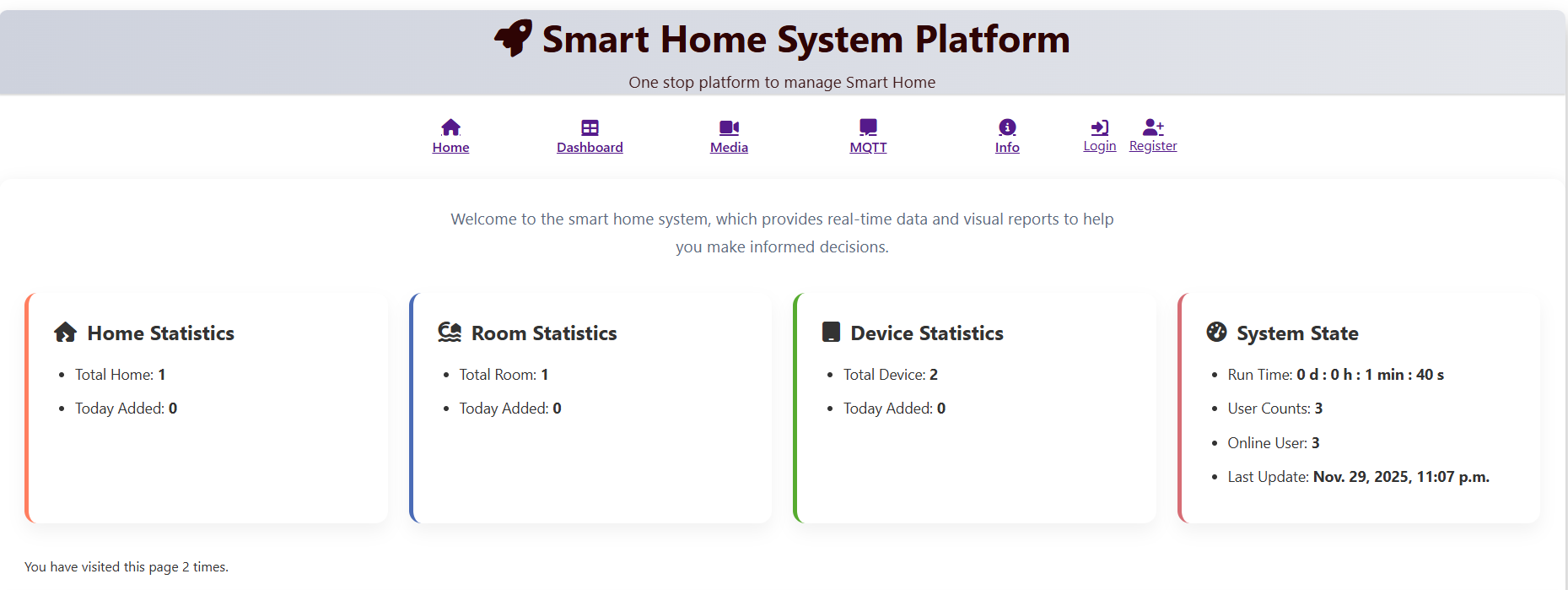

用戶可查看實時畫面，首先進入監控服務器主頁。

如果查看視頻需要先登錄。

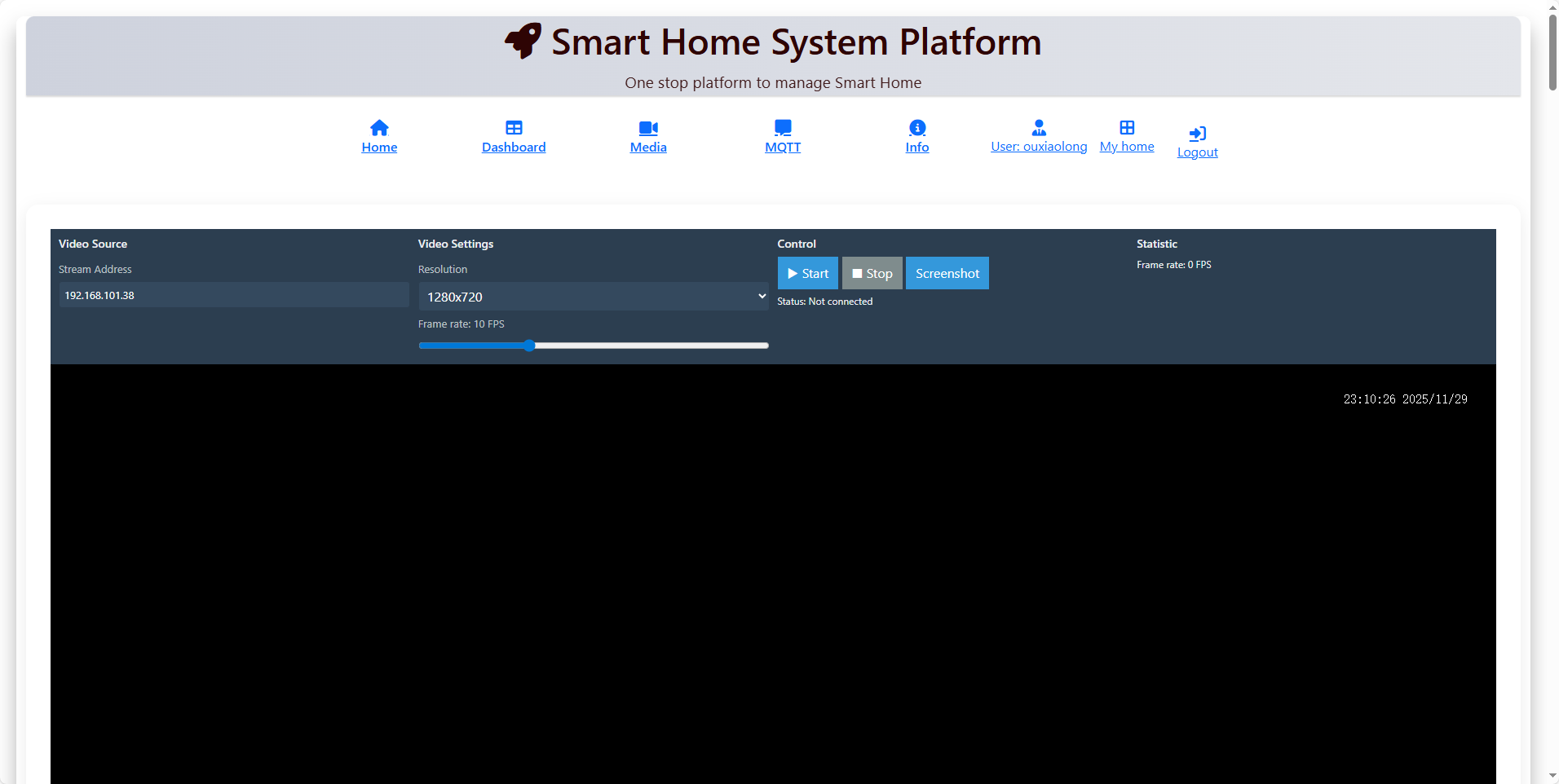

登錄賬號即可查看視頻流。

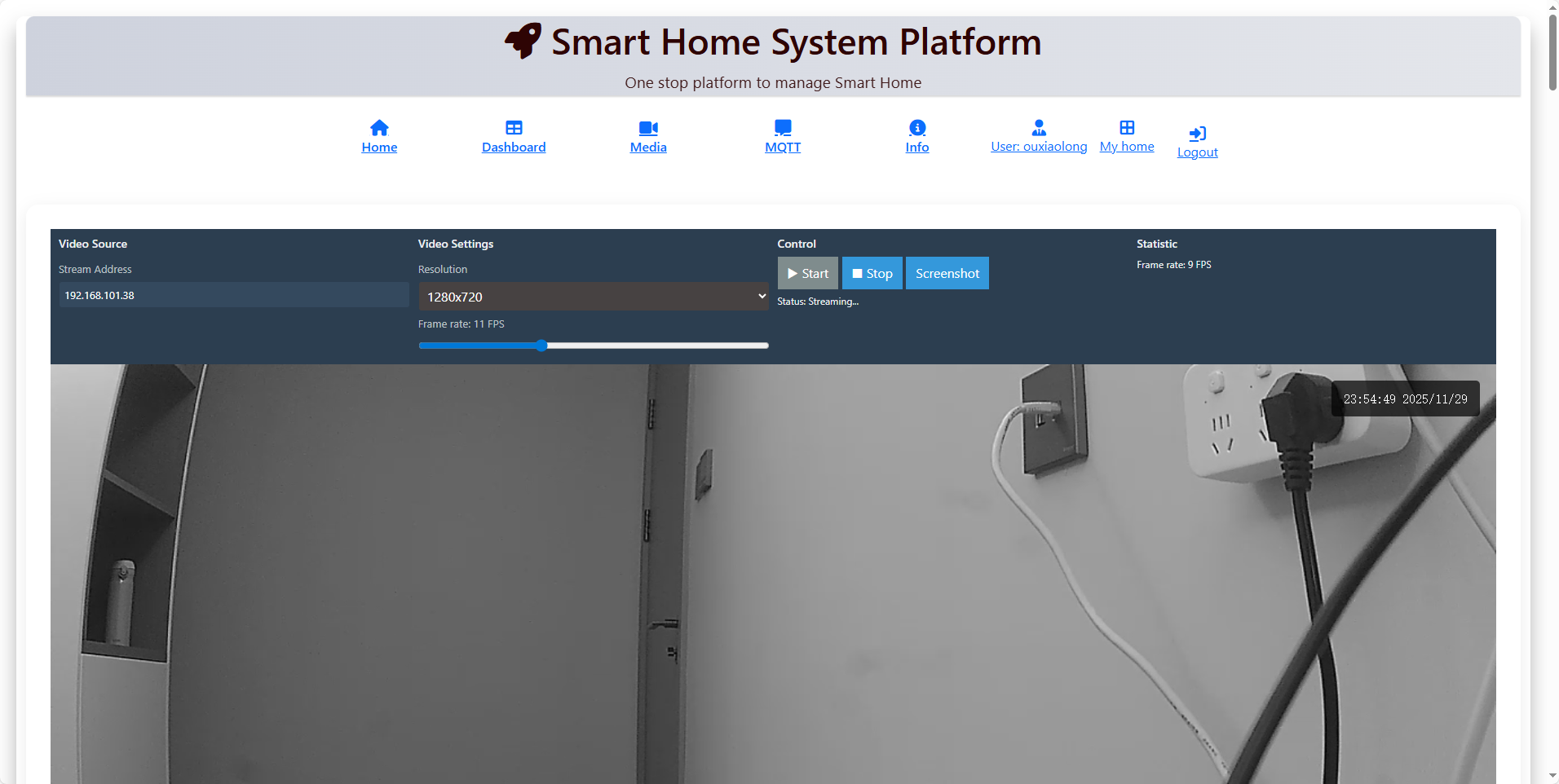

點擊開始即可查看。

7.2 監控終端配置與啟動

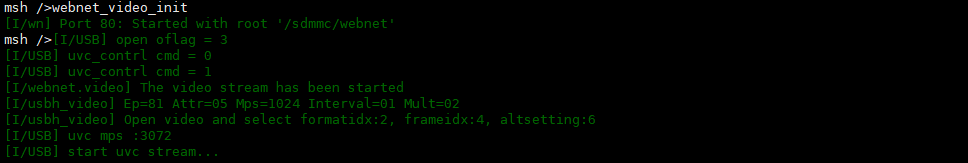

step1: set network

#ifconfig e0 192.168.101.38 192.168.101.254 255.255.255.0

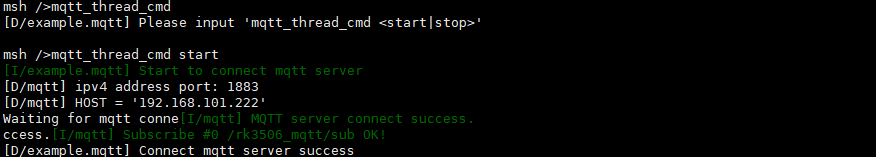

step2: mqtt thread start

#mqtt_thread_cmd start

step3: usb video

#webnet_video_init

7.3 監控效果

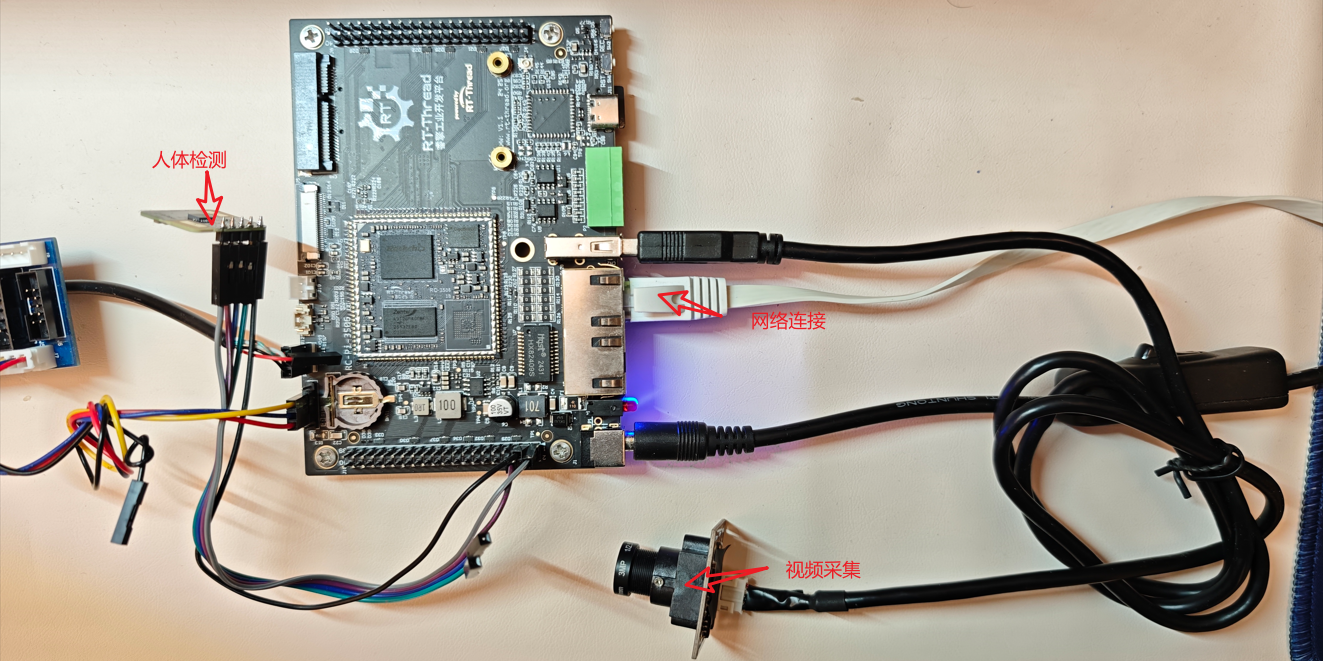

監控終端連線圖如下所示。

• RK3506開發板：作為主控制器，運行Linux系統。
• 安信可RD-03_V2：通過UART/GPIO接口與RK3506連接，用于檢測運動。
• USB攝像頭：連接到RK3506的USB接口。

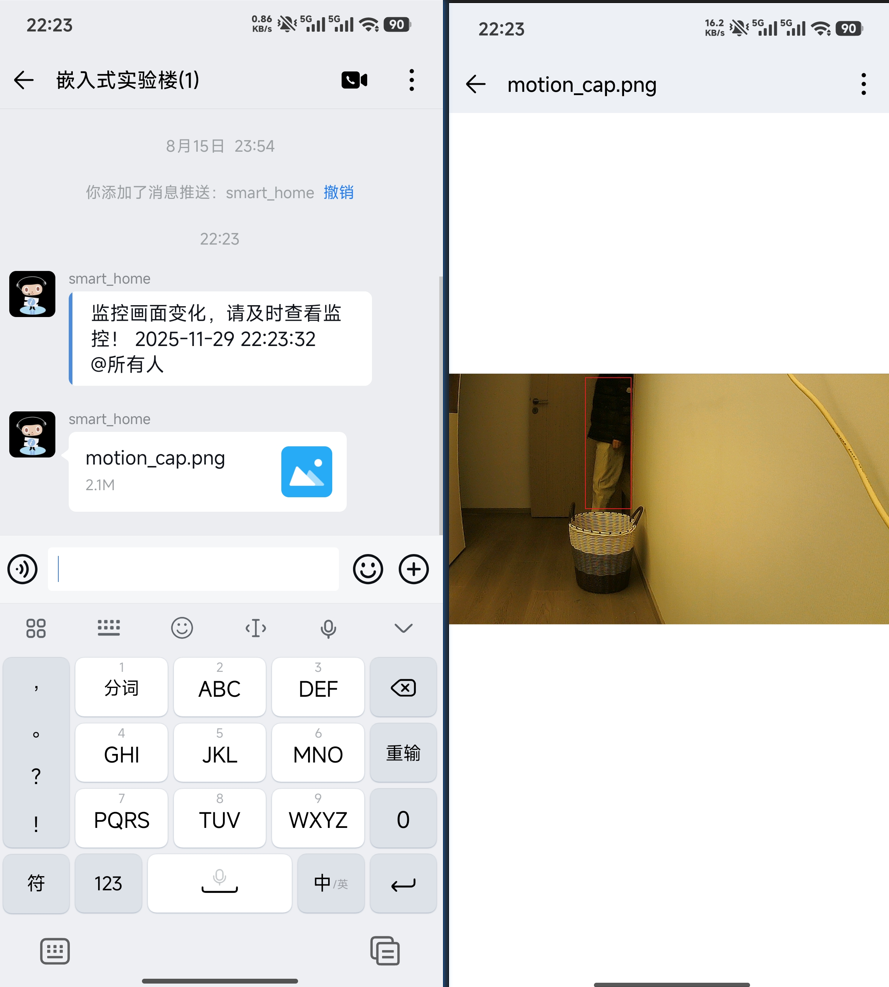

當監控到有人體是，企業微信會收到監控畫面。

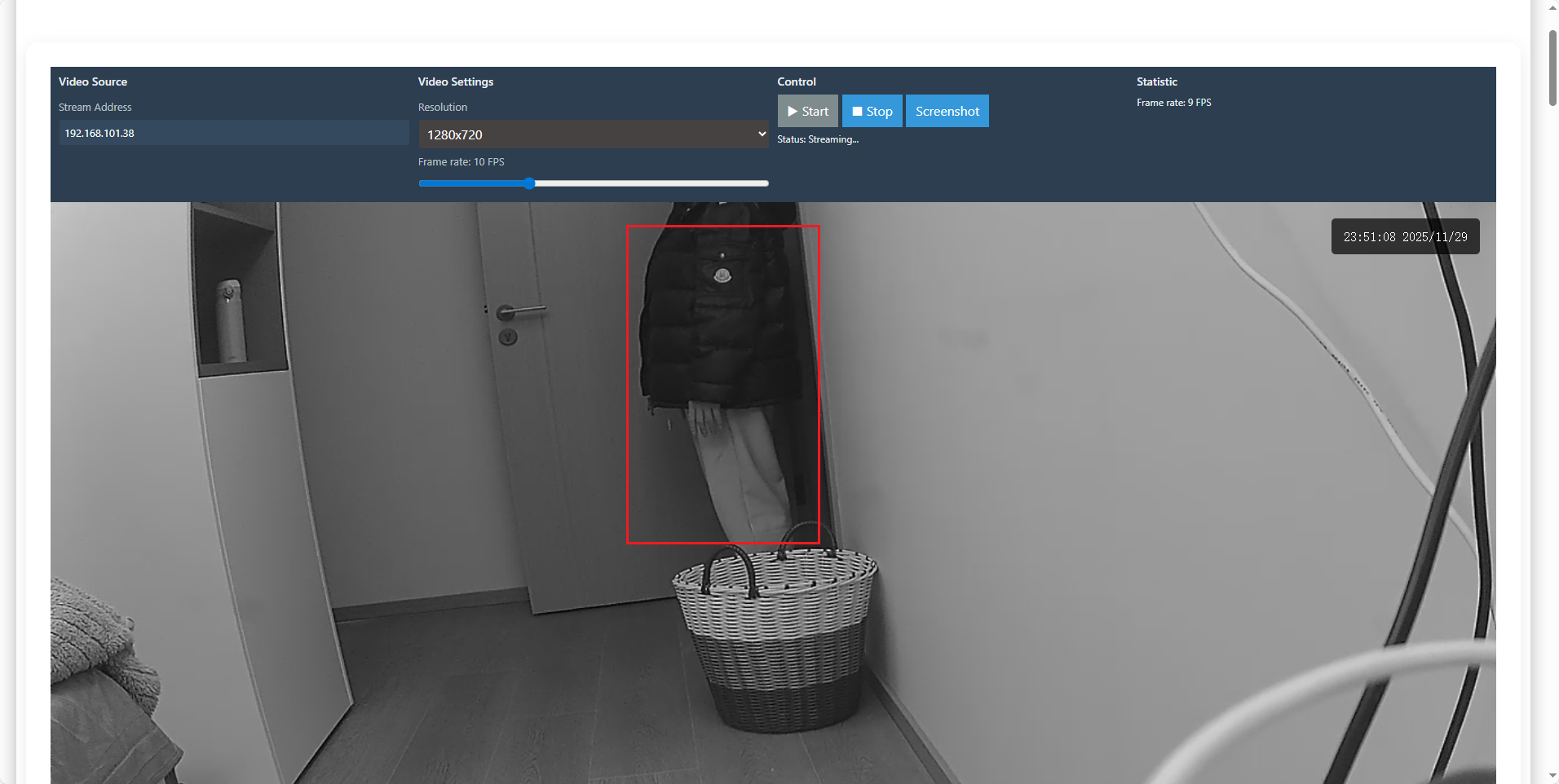

打開監控服務器，也可實時查看監控畫面。

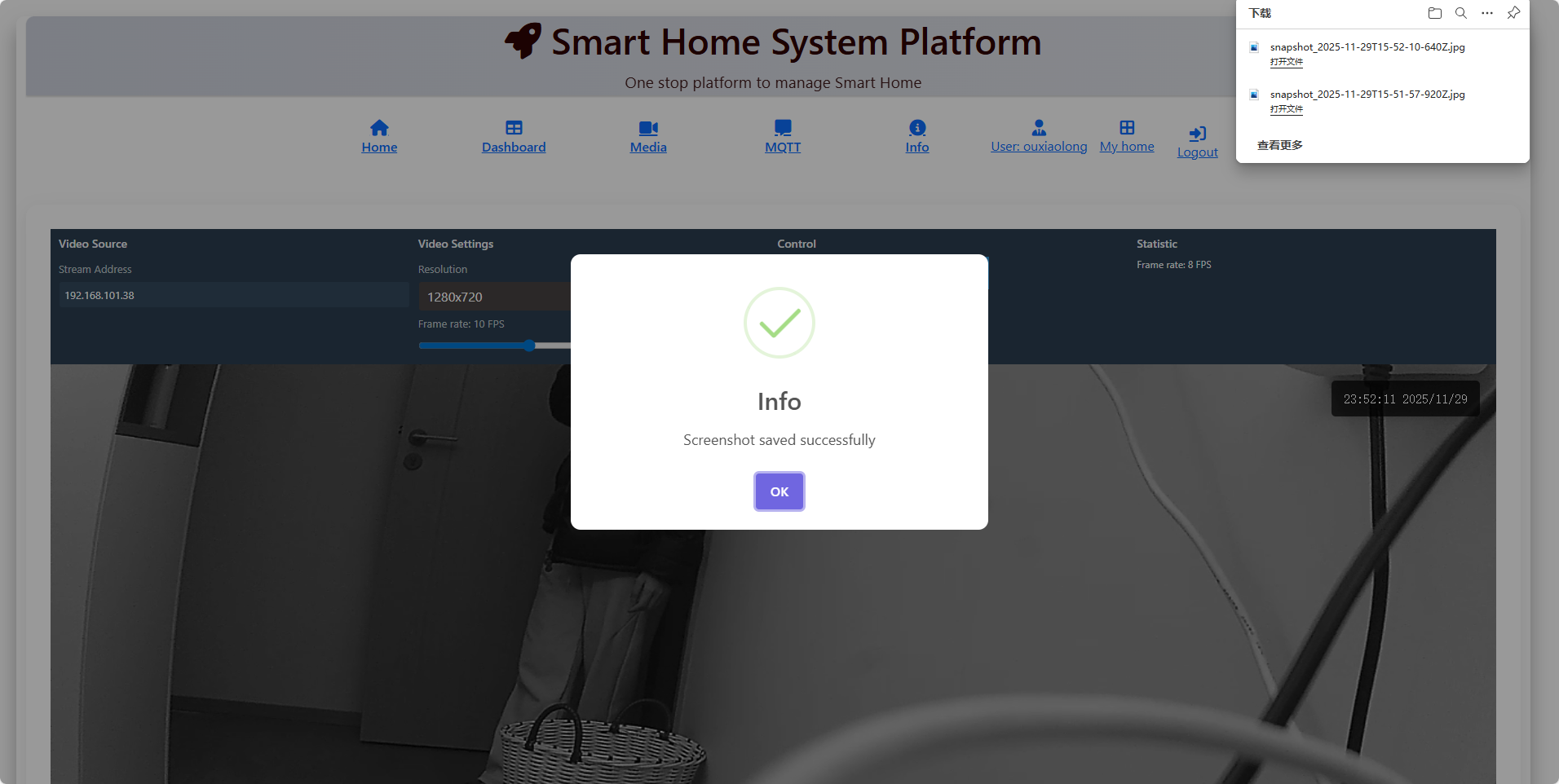

可實時截圖。

8 代碼地址

地址：https://gitee.com/ouxiaolong/rtthread_monitor

9 總結

基于RK3506、安信可RD-03_V2雷達和USB攝像頭構建了一個監控系統，并使用Django搭建了服務器。

總結如下：

• 硬件集成：成功將RK3506作為主控，連接雷達和攝像頭，實現了基于雷達觸發的圖像采集。
• 軟件設計：在RK3506上運行Linux，編寫Python程序處理雷達串口數據和控制攝像頭抓拍。
• 服務器開發：使用Django構建了RESTful API，接收并存儲檢測事件和圖片，同時提供了Web管理界面。
• 實時通信：利用WebSocket實現服務器與網頁客戶端的實時通信，及時推送檢測事件。
• 異步任務：使用Celery處理耗時的圖像保存和AI分析任務，提高系統響應速度。
• 前后端分離：前端通過JavaScript和WebSocket與后端交互，實現動態更新監控?cái)?shù)據。

總之，本項目成功構建了一個低成本、高效率、易維護的智能監控系統，主要優勢體現在：

• 技術先進性：結合雷達精準檢測與Django強大生態
• 成本優勢：國產硬件+開源軟件，性?xún)r(jià)比突出
• 實用性強：經過實際部署驗證，穩定可靠
• 擴展性好：模塊化設計，便于功能擴展
• 用戶體驗佳：完善的Web界面和API接口

這套技術方案不僅解決了具體監控需求，可用于智能家居、智能安防、智慧農業等領域，更形成了一套可復用的智能物聯網系統開發模式，

審核編輯 黃宇
