ST的SPEAr600應用于MPU嵌入式VoIP解決方案

ST公司的SPEAr600 是具有雙ARM926EJ-S核的嵌入式MPU, 性能高達733 DMIPS,支持靈活的存儲器,有功能強大的連接特性和可編程的LCD接口. ARM926EJ-S內核的工作頻率高達333MHz,其中的MMU支持虛擬的存儲器管理,是系統能和Linux操作系統兼容.主要用在需要大量計算的應用中如企業VoIP設備,可編邏輯控制器(PLC),醫療實驗室/診斷設備,無線接入設備,家用電器等.本文介紹SPEAr600主要特性,方框圖, 典型系統架構圖以及EVALSPEAR600評估板主要特性,電路圖和材料清單(BOM).

The SPEAr600 is a member of the SPEAr family of embedded MPUs for networked devices, it is based on dual ARM926EJ-S processors (up to 333 MHz), widely used in applications where high computation performance is required.

Both processors have an MMU supporting virtual memory management and making the system compliant with the Linux operating system. They also offer 16 KBytes of data cache, 16 KBytes of instruction cache, JTAG and ETM (embedded trace macro-cell) for debug operations.

To expand its range of target applications, SPEAr600 can be extended by adding additional peripherals through the external local bus (EXPI interface).

SPEAr600主要特性:

■ Dual ARM926EJ-S core up to 333 MHz:

– Each with 16 Kbytes instruction cache + 16 Kbytes data cache

■ High performance 8-channel DMA

■ Dynamic power saving features

■ Up to 733 DMIPS

■ Memory:

– External DRAM interface: 8/16-bit DDR1-333 / DDR2 – 666

– 32 Kbytes BootROM / 8 Kbytes internal SRAM

– Flexible static memory controller (FSMC) supporting parallel NAND Flash memory
Interface

– Serial NOR Flash Memory interface

■ Connectivity:

– 2 x USB 2.0 Host

– USB 2.0 Device

– Giga Ethernet (GMII port)

– I2C and fast IrDA interfaces

– 3 x SSP Synchronous serial peripheral (SPI, Microwire or TI protocol) ports

– 2 x UART interfaces

■ Peripherals supported:

– TFT/STN LCD controller (resolution up to 1024 x 768 and colors up to 24 bpp)

– Touchscreen support

■ Miscellaneous functions

– Integrated real-time clock, watchdog, and system controller

– 8-channel 10-bit ADC, 1 Msps

– JPEG codec accelerator

– 10 GPIO bidirectional signals with interrupt capability

– 10 independent 16-bit timers with programmable prescaler

■ 32-bit width External local bus (EXPI interface).

■ 3 x I2S interfaces for audio features:

– One stereo input and two stereo outputs (audio 3.1 configuration capable)

■ Software:

– System compliant with all operating systems (including Linux)

SPEAr600應用:

■ The SPEAr? embedded MPU family targets networked devices used for communication, display and control. This includes diverse consumer, business, industrial and life science applications such as:

– IP phones, thin client computers, printers, programmable logic controllers, PC docking stations,

– Medical lab/diagnostics equipment, wireless access devices, home appliances, residential control and security systems, digital picture frames, and bar-code scanners/readers.

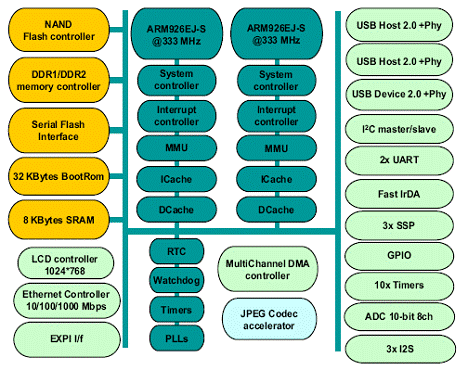

圖1.SPEAr600功能方框圖

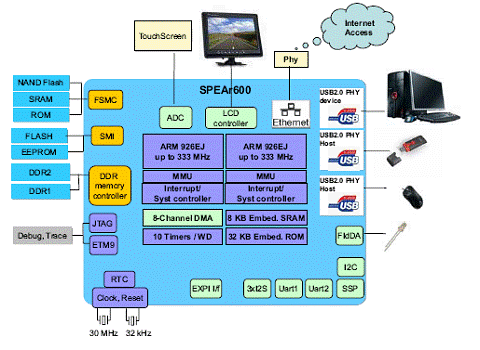

圖2.SPEAr600典型系統架構圖

EVALSPEAR600評估板

The EVALSPEAR600 evaluation board is a complete development platform for SPEAr600. It offers an easy and flexible solution for demonstrating device capabilities and quickly evaluating features and peripherals. It integrates a SPEAr600 embedded MPU with a high-performance dual ARM 926EJ-S core, two USB 2.0 hosts, one USB 2.0 device port and a Giga-Ethernet MAC. The evaluation boards include a complete range of hardware features for evaluating SPEAr600 performance and for starting development of a wide range of applications. Features include serial and parallel Flash, DDR2 memory, USB 2.0, Giga-Ethernet, SPI, Fast IrDA, I2C, UARTs and LCD expansion board connector. The board features an industry-standard JTAG and ETM connectors allowing developers to choose from a wide choice of development tools.

EVALSPEAR600評估板包括:

SPEAr Plus600

5 x 2 box header connector (COM2)

8 Mbytes serial Flash

10 GPIOs

64 Mbytes NAND Flash

8 pins for ADC channels

128 Mbytes DDR2 @ 333 MHz

3 SPI I/F

4 Kbytes serial I²C

Fast IrDA connector

2 USB 2.0 host ports

LCD expansion board connector

1 USB 2.0 device port

Debug I/F:

RJ45 Ethernet connector 10/100/1000

2 JTAGs

UART Connectors

2 ETM I/F

DB9 connector (COM1)


圖3.EVALSPEAR600評估板外形圖

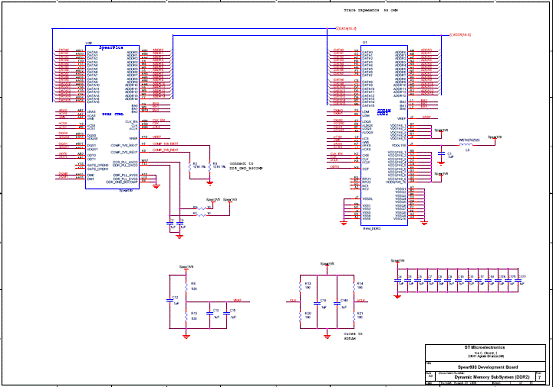

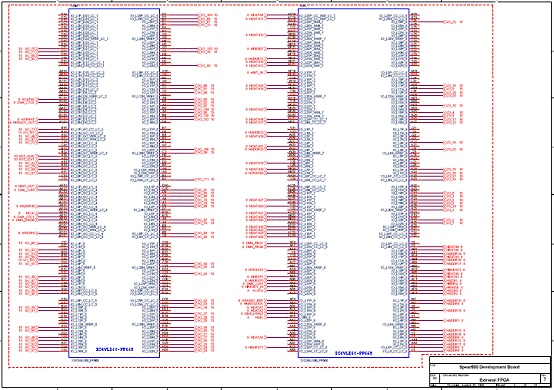

圖4.EVALSPEAR600評估板電路圖(1)

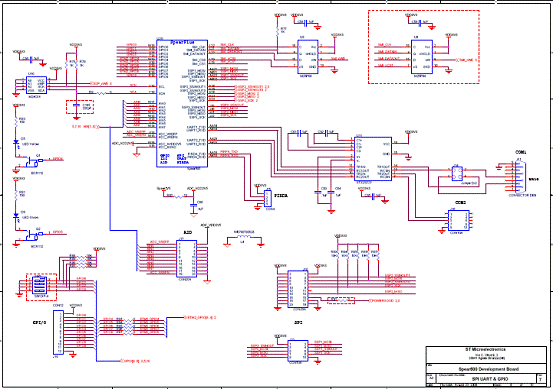

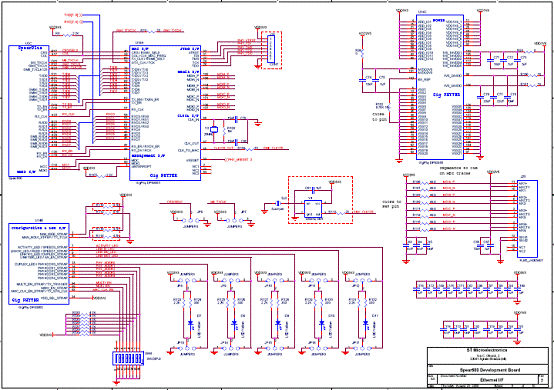

圖5.EVALSPEAR600評估板電路圖(2)

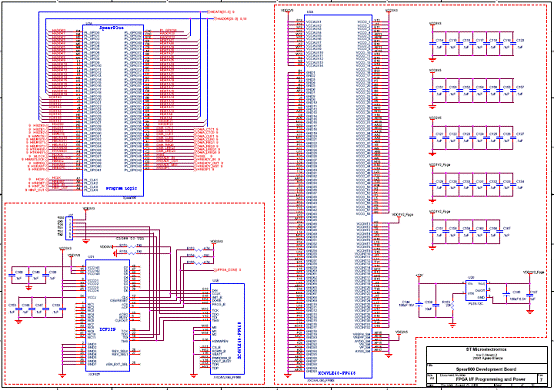

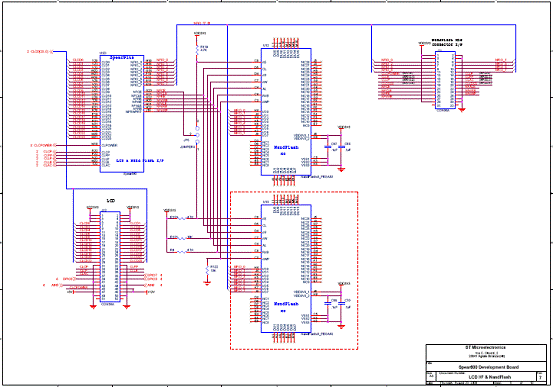

圖6.EVALSPEAR600評估板電路圖(3)

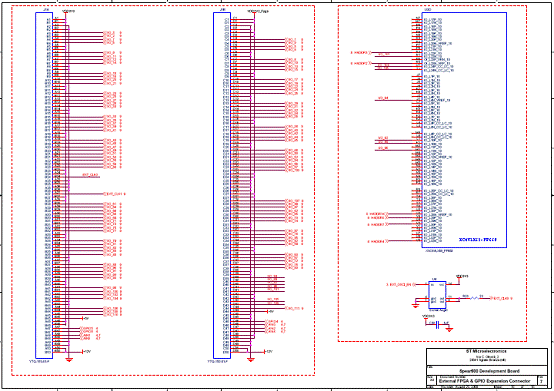

圖7.EVALSPEAR600評估板電路圖(4)

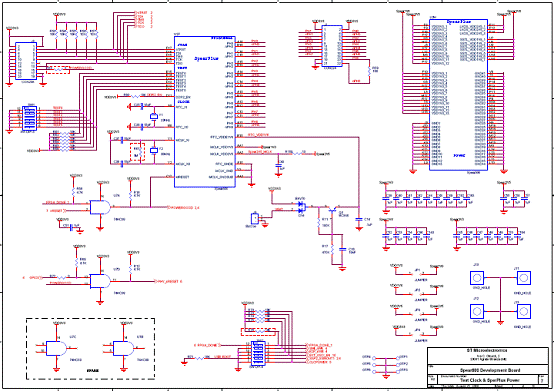

圖8.EVALSPEAR600評估板電路圖(5)

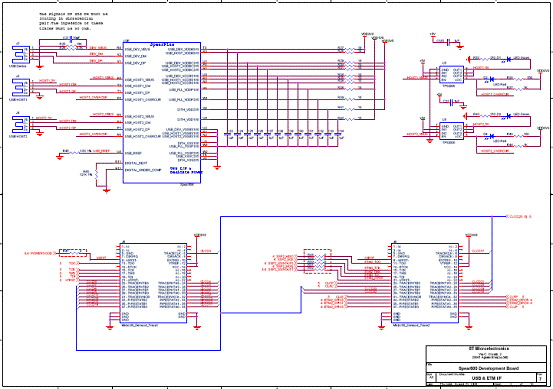

圖9.EVALSPEAR600評估板電路圖(6)

圖10.EVALSPEAR600評估板電路圖(7)

圖11.EVALSPEAR600評估板電路圖(8)

圖12.EVALSPEAR600評估板電路圖(9)

圖13.EVALSPEAR600評估板電路圖(10)

EVALSPEAR600評估板材料清單
