本文介紹了PCF8811主要特性和優勢，方框圖，以及幾種典型應用框圖。
PCF8811是NXP公司的低功耗80x126象素CMOS LCD控制器，具有80行和128列輸出，顯示器數據RAM 80x128位，具有8位并行接口，3/4路SPI和高速I2C總線，適合于以電池為能源的系統，主要用于汽車顯示器，通信設備，手提儀表和POS終端。

PCF8811：80 x 128 pixels matrix LCD driver

The PCF8811 is a low-power CMOS1 LCD controller and driver, designed to drive a graphic display of 80 rows and 128 columns or a graphic display of 79 rows and 128 columns and an icon row of 128 symbols. All necessary functions for the display are provided in a single chip, including on-chip generation of the LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCF8811 can interface microcontrollers via a parallel bus, serial bus or I2C-bus interface.

PCF8811主要特性和優勢：

Single-chip LCD controller and driver

80 row and 128 column outputs

Display data RAM 80 × 128 bit

128 icons (row 80 can be used for icons in extended command set and when icon rows are enabled)

Low power consumption; suitable for battery operated systems

Interfaces: an 8-bit parallel interface, 3 or 4-line Serial Peripheral Interface (SPI) and High-speed I2C-bus

On-chip:

Configurable voltage multiplier generating LCD supply voltage VLCD; an external VLCD is also possible

Linear temperature compensation of VLCD; 8 programmable temperature coefficients (extended command set); one fixed temperature coefficient which can be set as default by OTP programming (basic command set)

Generation of intermediate LCD bias voltage

Oscillator requires no external components

OTP calibration for VLCD and accurate frame frequency

External reset input pad

External clock input possible

Multiplex rate: 1:16 to 1:80 in steps of 8 when no icon row is used; with the icon row, steps of 16 can be used

Logic supply voltage range VDD1 to VSS:

1.7 V to 3.3 V

High-voltage multiplier supply voltage range VDD2, VDD3 to VSS:

1.8 V to 3.3 V

Display supply voltage range VLCD to VSS:

3 V to 9 V

Programmable bottom row pads mirroring; for compatibility with both Tape Carrier Packages (TCP) and Chip-On-Glass (COG) applications (extended command set)

Status read, which allows for chip recognition and content checking of some registers

Start address line which allows, for instance, the scrolling of the displayed image

Programmable display RAM pointers for variable display sizes

Slim chip layout, suited for COG applications

Temperature range: Tamb = ?40℃ to +85℃

CMOS compatible inputs

PCF8811應用：

Automotive displays

Telecom equipment

Portable instruments

Point-of-sale terminals


圖1。PCF8811方框圖

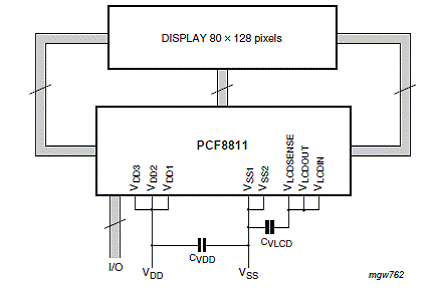

圖2。PCF8811應用框圖：內部電荷泵和單電源

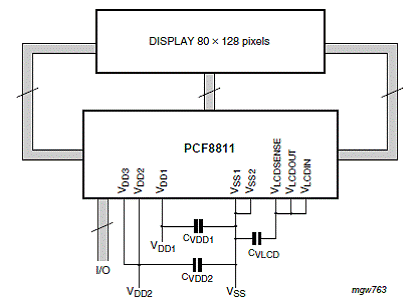

圖3。PCF8811應用框圖：內部電荷泵和兩個分立電源（VDD1和VDD2）

圖4。PCF8811應用框圖：外接高壓
