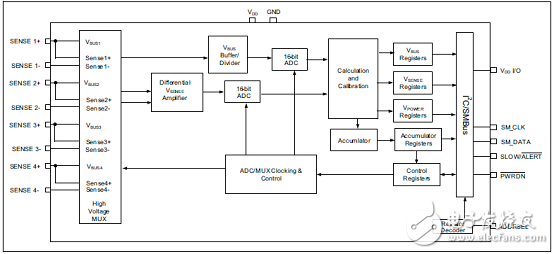

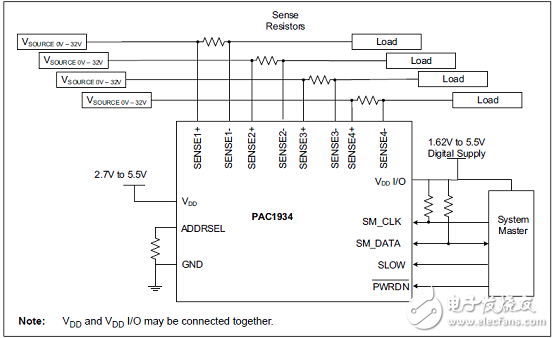

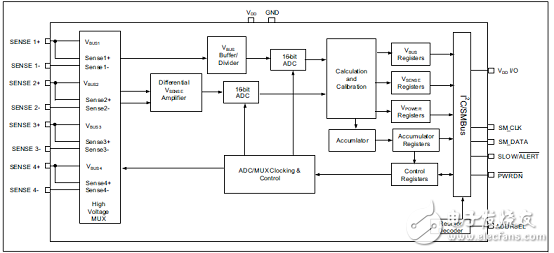

Microchip公司的PAC1934是帶累加器的四路直流電源/能源監測器,具有總線電壓監視器和電流檢測放大器,直接輸入到高分辨率ADC,數字電流進行功率計算和能量累加.監測周期從1ms到36個小時或更長.電源測量精度1%,24位累加器計數,2.7-5.5V工作電壓,主要用在筆記本和平板電腦,網絡設備,汽車電子,云,Linux和服務器計算和工業與Linux應用.本文介紹了PAC1934主要特性,框圖,系統框圖和功能框圖,以及PAC1934評估板ADM00805主要特性,電路圖,材料清單和PCB設計圖.

The PAC1934 device is a four-channel energy monitor,with bus voltage monitor and current sense amplifiers thatfeed high-resolution ADCs. Digital circuitry performs power calculations and energy accumulation.

This enables energy monitoring with integration periodsfrom 1 ms up to 36 hours or longer. Bus voltage, senseresistor voltage and accumulated proportional power arestored in registers for retrieval by the system master orEmbedded Controller.

The sampling rate and energy integration period can becontrolled over SMBus or I2C. Active channel selection,one-shot measurements and other controls are also configurableby SMBus or I2C.

The PAC1934 uses real time calibration to minimize offsetand gain errors. No input filters are required for this device.

PAC1934主要特性:

? High-Side Current Monitor
- 100 mV full scale range for current sensevoltage,16b resolution default setting
- Selectable bidirectional current sense capability,
–100 mV to +100 mV range, 16-bittwo’s complement (signed) data format
- External sense resistor sets full scale currentrange
- Very low input current simplifies routing
? Wide Bus Voltage Range for Voltage Monitor
- 0V to 32V input common-mode voltage
- 16-bit resolution for voltage measurements,14b are used for power calculations
? Real Time Auto-Calibration of Offset and GainErrors for Voltage and Current, No User AdjustmentRequired
? 1% Power Measurement Accuracy over a WideDynamic Range
? On-Chip Accumulation of 28-bit Power Results forEnergy Measurement
- 48-bit power accumulator register for recordingaccumulated power data
- 24 bit Accumulator Count
- User programmable sampling rates of 8, 64,256 and 1024 samples per second
- 17 minutes of power data accumulation minimumat 1024 S/s
- >36 hours of power data accumulation minimumat 8 S/s
? 2.7V to 5.5V Supply Operation
- Separate VDD I/O pin for digital I/O
- 1.62-5.5V capable SMBus and digital I/O
- SMBus 3.0 and I2C Fast Mode Plus (1Mb/S)
? SMBus Address - 16 Options, set with Resistor
? No Input Filters Required
? ALERT Features that can be Enabled:
- ALERT on accumulator overflow
- ALERT on Conversion Complete
? 2.225 x 2.17 mm WLCSP Package

PAC1934應用:

? Notebook and Tablet Computing
? Networking
? Automotive
? Cloud, Linux and Server Computing
? Industrial
? Linux Applications
