本文介紹了MC1321x系列主要特性,方框圖, 802.15.4標準調制解調器方框圖和MCU(HCS08, Version A)方框圖,以及13213-網絡協調板(NCB)和13213-傳感器參考板(SRB)電路圖.

Freescale 公司的MC1321x系列是第二代ZigBee平臺,集成了低功耗2.4GHz RF收發器和8位MCU,能實現點對電連接到完整的ZigBee mesh網絡,是高性價比的完整解決方案.RF收發器和標準802.15.4兼容,工作在2.4 GHz ISM頻帶,包括有低噪音放大器,1mW輸出功率,帶VCO的PA,發送/接收開關,電源穩壓以及全擴展頻譜編碼和譯碼.MCU具有HCS08 Version A特性,并提供多達60KB的閃存和4KB的RAM.

MC1321x系列主要特性:

General Platform Features

? 802.15.4 Standard compliant on-chip transceiver/modem

— 2.4GHz

— 16 selectable channels

— Programmable output power

? Multiple power saving modes

? 2V to 3.4V operating voltage with on-chip voltage regulators

? -40℃ to +85℃ temperature range

? Low external component count

? Supports single 16 MHz crystal clock source operation or dual crystal operation

? Support for SMAC, IEEE 802.15.4 Standard-Compliant MAC, SynkroRF, BeeStack, BeeStack Consumer (ZigBee RF4CE) software solutions

? 9mm x 9mm x 1mm 71-pin LGA

Microcontroller Features

? Low voltage MCU with 40 MHz low power HCS08 CPU core

? Up to 60K flash memory with block protection and security and 4K RAM

— MC13211: 16KB Flash, 1KB RAM

— MC13212: 32KB Flash, 2KB RAM

— MC13213: 60KB Flash, 4KB RAM

? Low power modes (Wait plus Stop2 and Stop3 modes)

? Dedicated serial peripheral interface (SPI) connected internally to 802.15.4 modem

? One external 4-channel (5-channel internal) 16-bit timer/pulse width modulator (TPM) module and one external 1-channel (3-channel internal) 16-bit timer/pulse width modulator module, each with selectable input capture, output capture, and PWM capability.

? 8-bit port keyboard interrupt (KBI)

? 8-channel 8-10-bit ADC

? Two independent serial communication interfaces (SCI)

? Multiple clock source options

— Internal clock generator (ICG) with 243 kHz oscillator that has +/-0.2% trimming resolution and +/-0.5% deviation across voltage.

— Startup oscillator of approximately 8 MHz

— External crystal or resonator

— External source from modem clock for very high accuracy source or system low-cost option

? Inter-integrated circuit (IIC) interface.

? In-circuit debug and flash programming available via on-chip background debug module (BDM)

— Two comparator and 9 trigger modes

— Eight deep FIFO for storing change-of-flow addresses and event-only data

— Tag and force breakpoints

— In-circuit debugging with single breakpoint

? System protection features

— Programmable low voltage interrupt (LVI)

— Optional watchdog timer (COP)

— Illegal opcode detection

? Up to 32 MCU GPIO with programmable pullups

RF Modem Features

? Fully compliant 802.15.4 Standard transceiver supports 250 kbps O-QPSK data in 5.0 MHz channels and full spread-spectrum encode and decode

? Operates on one of 16 selectable channels in the 2.4 GHz ISM band

? -1 dBm to 0 dBm nominal output power, programmable from -27 dBm to +3 dBm typical

? Receive sensitivity of <-92 dBm (typical) at 1% PER, 20-byte packet, much better than the 802.15.4 Standard of -85 dBm

? Integrated transmit/receive switch

? Dual PA ouput pairs which can be programmed for full differential single-port or dual-port operation that supports an external LNA and/or PA.

? Three low power modes for increased battery life

? Programmable frequency clock output for use by MCU

? Onboard trim capability for 16 MHz crystal reference oscillator eliminates need for external variable capacitors and allows for automated production frequency calibration

? Four internal timer comparators available to supplement MCU timer resources

? Supports both packet data mode and streaming data mode

? Seven GPIO to supplement MCU GPIO

Software Features

Freescale provides a wide range of software functionality to complement the MC1321x hardware. There are three levels of application solutions:

? SMAC

? IEEE 802.15.4 Standard-Compliant MAC

? SynkroRF

? BeeStack

? BeeStack Consumer (ZigBee RF4CE)

MC1321x系列應用:

Applications include, but are not limited to, the following:

? Residential and commercial automation

— Lighting control

— Security

— Access control

— Heating, ventilation, air-conditioning (HVAC)

— Automated meter reading (AMR)

? Industrial Control

— Asset tracking and monitoring

— Homeland security

— Process management

— Environmental monitoring and control

— HVAC

— Automated meter reading

? Health Care

— Patient monitoring

— Fitness monitoring

? Consumer

— Human interface devices (keyboard, mice, etc.)

— Remote control

— Wireless toys

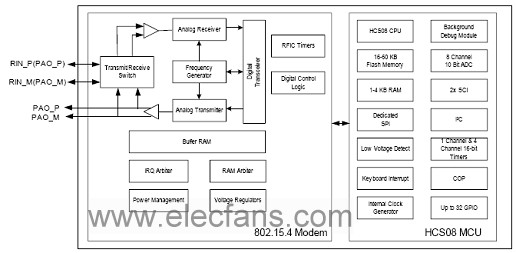

圖1.MC1321x系列系統級方框圖

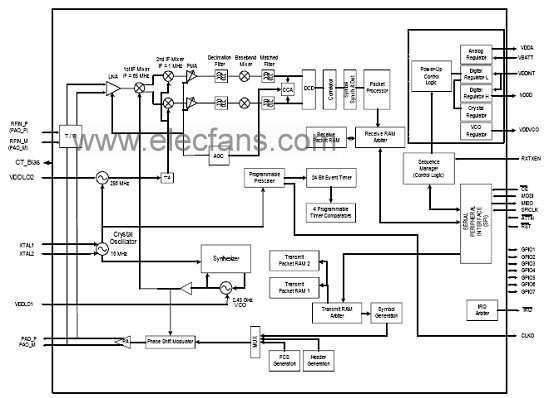

圖2. 802.15.4標準調制解調器方框圖

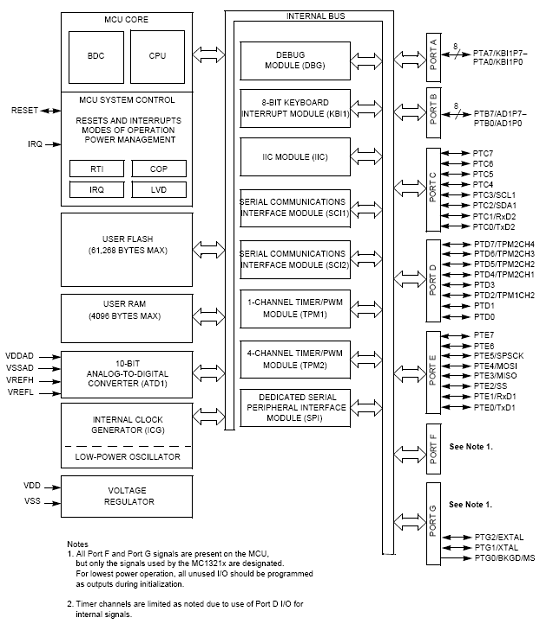

圖3. MC1321x MCU方框圖 (HCS08, Version A)

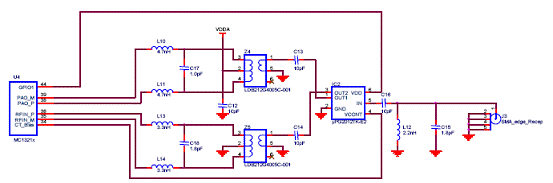

圖4.MC1321x系列RF參數評估電路圖

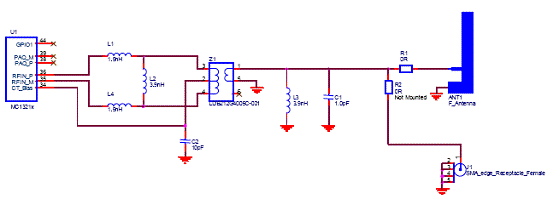

圖5.MC1321x系列帶F天線的RF單端口電路圖

MC1321x 評估套件 (EVK)

This manual provides a detailed hardware description of the MC1321xEVK which consists of a 13213-Network Coordinator Board (13213-NCB) and a 13213-Sensor Reference Board (13213-SRB).

The functionality of the 13213-NCB and 13213-SRB boards is very similar. The primary difference between the two boards revolves around the peripheral circuits, not in the reference design itself.

The 13213-NCB and 13213-SRB provide all the necessary components to evaluate and use the MC1321x solution. The 13213-NCB and the 13213-SRB are built around the Freescale MC1321x family. The MC1321x family is Freescale’s second-generation ZigBee platform which incorporates a low power 2.4 GHz radio frequency transceiver and an 8-bit microcontroller into a single 9x9x1 mm 71-pin LGA package.

The 13213-NCB and the 13213-SRB are compliant with the following standards:

? FCC standard 47 CFR, part 15, section 15.247

? ETSI EN 300-328-1

? ETSI EN 300-328-2

圖6.13213-網絡協調板(NCB)外形圖

圖7.13213-傳感器參考板(SRB)外形圖

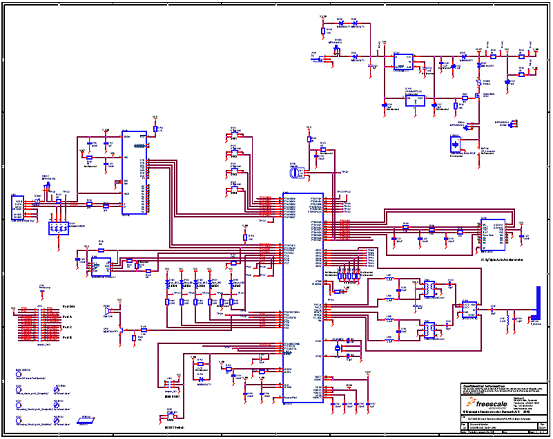

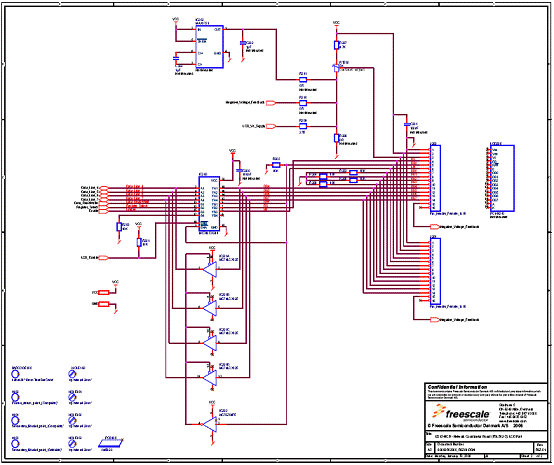

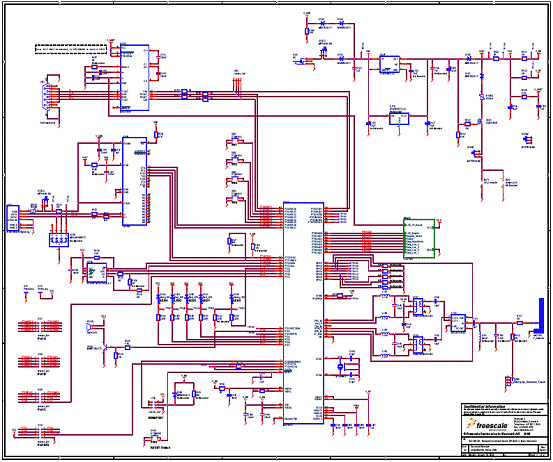

圖8.13213-NCB電路圖(1)
