NS 公司的ADC16V130是LVDS輸出的16位130MSPS高性能ADC,雙電源1.8V和3.0V工作,16位分辨率,取樣速率130MSPS,滿功率帶寬1.4GHz,160-MHz的SNR為76.7dB, SFDR為90.6dBFS,主要應用在高IF取樣接收器,多載波基站接收器,測試測量設備,通信基礎設備,數據采集和手提儀表等.本文介紹了ADC16V130主要特性,方框圖,低頻和高頻變壓器驅動電路以及SP16130CH4RB低IF接收器參考設計主要特性,詳細電路圖和材料清單(BOM).

ADC16V130: 16-Bit, 130 MSPS A/D Converter with LVDS Outputs

The ADC16V130 is a monolithic high performance CMOS analog-to-digital converter capable of converting analog input signals into 16-bit digital words at rates up to 130 Mega Samples Per Second (MSPS). This converter uses a differential, pipelined architecture with digital error correction and an onchip sample-and-hold circuit to minimize power consumption and external component count while providing excellent dynamic performance. Automatic power-up calibration enables excellent dynamic performance and reduces part-to-part variation, and the ADC16V130 could be re-calibrated at any time by asserting and then de-asserting power-down. An integrated low noise and stable voltage reference and differential reference buffer amplifier easies board level design. On-chip duty cycle stabilizer with low additive jitter allows wide duty cycle range of input clock without compromising its dynamic performance. A unique sample-and-hold stage yields a fullpower bandwidth of 1.4 GHz. The digital data is provided via full data rate LVDS outputs – making possible the 64-pin, 9mm x 9mm LLP package. The ADC16V130 operates on dual power supplies +1.8V and +3.0V with a power-down feature to reduce the power consumption to very low levels while allowing fast recovery to full operation.

ADC16V130主要特性:

■ Dual Supplies: 1.8V and 3.0V operation

■ On chip automatic calibration during power-up

■ Low power consumption

■ Multi-level multi-function pins for CLK/DF and PD

■ Power-down and sleep modes

■ On chip precision reference and sample-and-hold circuit

■ On chip low jitter duty-cycle stabilizer

■ Full data rate LVDS output port

■ 64-pin LLP package (9x9x0.8, 0.5mm pin-pitch)

ADC16V130主要指標:

■ Resolution 16 Bits

■ Conversion Rate 130 MSPS

■ SNR

(fIN = 10MHz)

(fIN = 70MHz)

(fIN = 160MHz)

78.5 dBFS (typ)

77.8 dBFS (typ)

76.7 dBFS (typ)

■ SFDR

(fIN = 10 MHz)

(fIN = 70MHz)

(fIN = 160MHz)

95.5 dBFS (typ)

92.0 dBFS (typ)

90.6 dBFS (typ)

■ Full Power Bandwidth 1.4 GHz (typ)

■ Power Consumption

Core

LVDS Driver

Total

650 mW (typ)

105 mW (typ)

755 mW (typ)

■ Operating Temperature Range -40°C ~ 85°C

ADC16V130應用:

■ High IF Sampling Receivers

■ Multi-carrier Base Station Receivers GSM/EDGE, CDMA2000, UMTS, LTE and WiMax

■ Test and Measurement Equipment

■ Communications Instrumentation

■ Data Acquisition

■ Portable Instrumentation

?

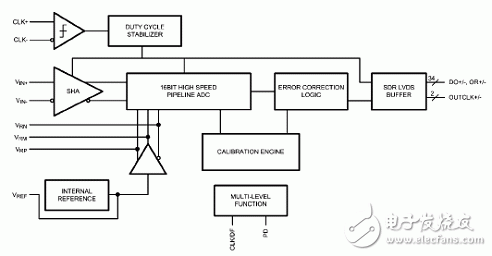

圖1.ADC16V130方框圖

?

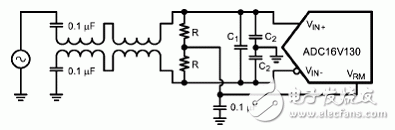

圖2. ADC16V130低頻輸入變壓器驅動電路

?

圖3. ADC16V130高頻輸入變壓器驅動電路

?

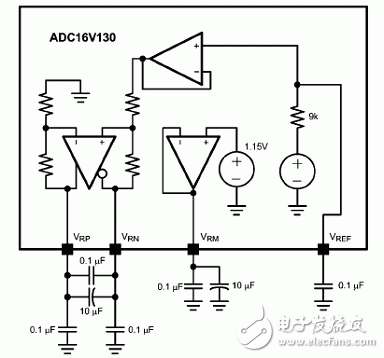

圖4. ADC16V130內部基準和去耦電路
