圖4.MAX98089采用數字麥克風輸出和接收放大器的應用電路
MAX98089評估板

The MAX98089 evaluation kit (EV kit) is a fully assembled and tested circuit board that evaluates the MAX98089 audio codec. The IC is an integrated audio codec includ-ing microphone amplifiers, line amplifiers, an earpiece amplifier, stereo Class D amplifiers, stereo DirectDriveM headphone amplifiers, and digital signal processing. The EV kit also includes Windows XPM-, Windows VistaM-, and WindowsM 7-compatible software that provides a simple graphical user interface (GUI) for exercising the features of the IC.

The EV kit provides access to all analog and digital inputs/outputs on the IC. To enable easy connection to a wide range of audio sources, audio devices are included to convert both USB data and S/PDIF data to I2S.

The EV kit integrates a MAXQ2000 microcontroller to enable I2C communication with devices on the EV kit. The EV kit software, running on a Windows PC, commu-nicates with the EV kit over a standard USB port. The EV kit software provides an intuitive interface to exercise the functions of the IC.

The EV kit comes with a MAX98089EWY+ installed.

MAX98089評估板主要特性:

2.8V to 5.5V Single-Supply Operation

Proven Audio PCB Layout

On-Board USB-to-I2C Interface Circuit

On-Board USB-to-I2S Converter

On-Board S/PDIF Transceiver

On-Board Clock Source

On-Board Digital Microphone

Evaluates the MAX98089EWY+ in a 3.8mm x 3.3mm, 63-Bump WLP Package

Windows XP-, Windows Vista-, and Windows 7-Compatible Software

Proven PCB Layout

Fully Assembled and Tested

2011-8-3 19:08:11 上傳

下載附件 (24.48 KB)

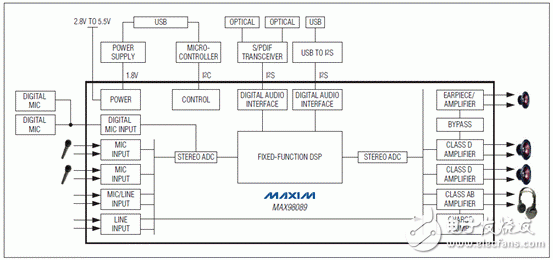

圖5.MAX98089評估板簡化方框圖

2011-8-3 19:08:11 上傳

下載附件 (71.93 KB)

圖6.MAX98089評估板軟件主窗口 (Block Diagram Tab)

2011-8-3 19:08:11 上傳

下載附件 (26.62 KB)

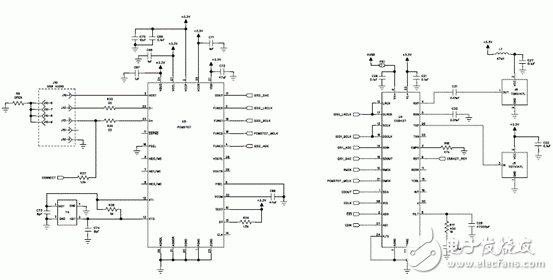

圖7.MAX98089評估板電路圖(1)

2011-8-3 19:08:11 上傳

下載附件 (20.47 KB)

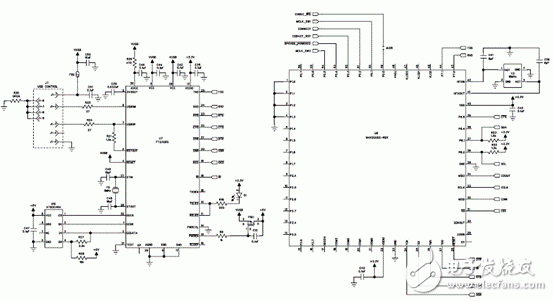

圖8.MAX98089評估板電路圖(2)

2011-8-3 19:08:11 上傳

下載附件 (17.18 KB)

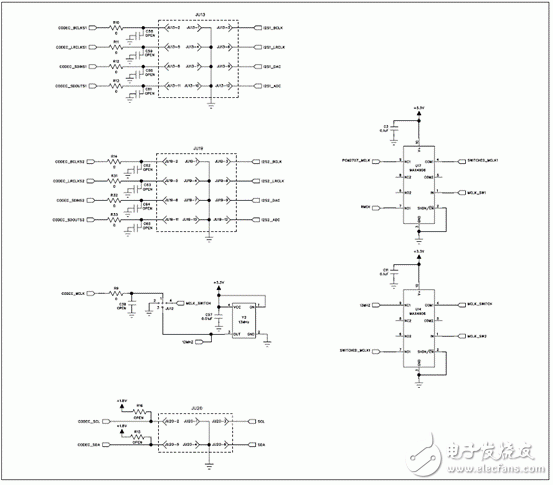

圖9.MAX98089評估板電路圖(3)

2011-8-3 19:08:11 上傳

下載附件 (20.11 KB)

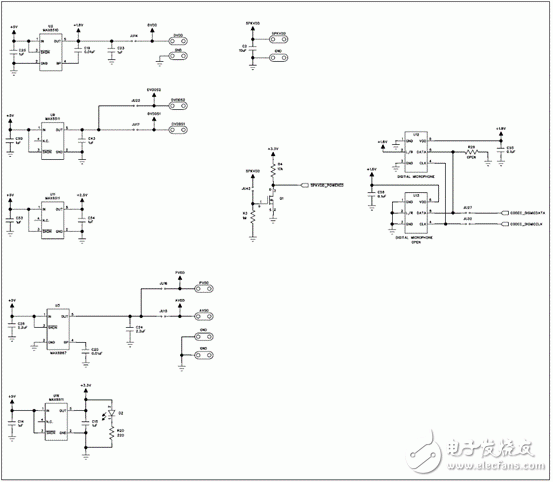

圖10.MAX98089評估板電路圖(4)

2011-8-3 19:08:11 上傳

下載附件 (18.14 KB)

圖11.MAX98089評估板電路圖(5)
MAX98089評估板材料清單:

2011-8-3 19:08:11 上傳

下載附件 (80.49 KB)
