TI TPA6140A2 G類立體聲耳機放大電路設計

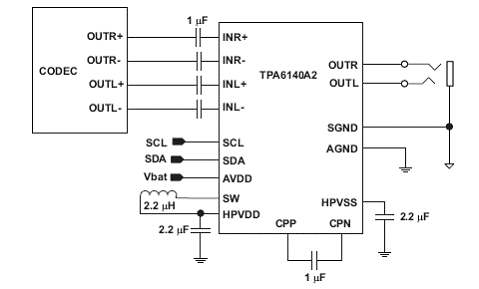

TI 公司的TPA6140A2和TPA6141A2是25mW G類立體聲耳機放大器,它的系統級音樂播放時間比AB類放大器提高了20%.這兩個器件采用DirectPath技術,不需要大的隔直流電容和開關機抑制電路,增強了聽覺效果.小型封裝,超低功耗和高質量音頻保真,使它們非常適合手提設備應用如手機/智能手機和MP3播放器.本文介紹了TPA6140A2和TPA6141A2的主要特性和指標, 功能方框圖以及差分輸入,單端輸入的應用配置圖.此外還介紹了評估模塊的主要特性,詳細電路和所用元件清單。

TPA6140A2: CLASS-G DIRECTPATH STEREO HEADPHONE AMPLIFIER WITH I2C VOLUME CONTROL

TI’s new TPA6140A2 and TPA6141A2 25-mW Class-G stereo headphone amplifiers improve system-level music playback time by 20 percent over Class-AB technology in the best-in-class music phones shipping today. DirectPath technology eliminates the need for large DC-blocking capacitors and pop-suppression circuitry improves the listening experience. Small package size, ultra-low power consumption and high audio fidelity makes these devices ideal for portable applications such as mobile/smart phones and MP3 players.

TPA6140A2主要指標:

TPA6140A2主要特性:

Consume 0.6-mA/channel quiescent current and deliver 5 mW/channel into a 32-Ω load, while keeping the total supply current below 5 mA

Enable energy-efficient system when coupled with TI’s low-power audio converters, speaker amplifiers, OMAP 3 processors and TMS320C550x and TMS320C540x devices

Variable and fixed gain options:

TPA6140A2: –59-dB to +4-dB variable gain range programmable via a 32-step I2C volume control

TPA6141A2: 0-dB or +6-dB fixed gain

Separate SGND pin reduces ground loop noise when interfacing with a non-headphone accessory

Key Applications:

Mobile/smart phones

Portable media/MP3 players

TPA6140A2評估模塊(EVM)

The TPA6140A2 is a DirectPath Class-G stereo headphone amplifier with a built-in I2C volume control. Class-G technology maximizes battery life by adjusting the voltage supplies of the headphone amplifier based on audio signal level. DirectPath eliminates external DC-blocking capacitors. Availability in a 0.4 mm pitch WCSP package makes TPA6140A2 an ideal choice for both cellular handsets and PDAs.

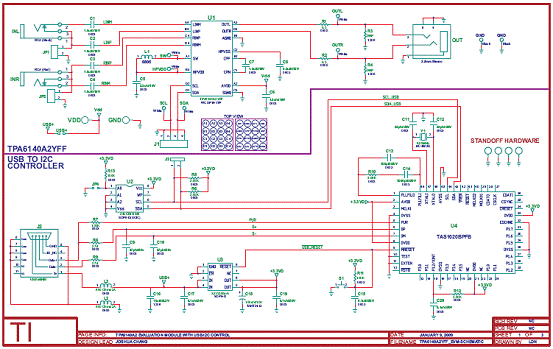

The TPA6140A2 evaluation module (EVM) is a complete, stand-alone audio board. It contains the TPA6140A2 WCSP (YFF) Class-G stereo headphone amplifier.

The TPA6140A2YFFEVM allows the engineer to evaluate the TPA6140A2, a stereo Class-G DirectPath (capacitor-free) headphone amplifier in a WCSP package. The TPA6140A2 has extremely low power consumption that enables much longer battery life in portable applications.

TPA6140A2評估模塊特性:

Highly Power-Efficient Class-G Operation

DirectPath Ground-Referenced Outputs

Power Supply Voltage Range: 2.5 V to 5.5 V

I2C Volume Control: -59 dB to +4 dB Gain Range

Separate SGND Input for Preventing Ground Loop Noise

High Power Supply Rejection Ratio

Differential Inputs for Maximum Noise Rejection

Advanced Pop and Click Suppression Circuitry

High-Impedance Output Mode

Tiny 1.6 mm x 1.6 mm 16-WCSP (0.4mm pitch)


TPA6140A2EVM元件列表:
