基于SX105x的多路可編LED驅動設計及應用

Semtech 公司的SX1507, SX1508和SX1509是超低功耗4/8/16路通用并行輸入/輸出(GPIO)擴展器,并集成了LED驅動器,工作電壓1.2V-3.6V,主要用在手機,PDA,MP3播放器,數碼相機,筆記本電腦,GPS和其它以電池為能源的設備.本文介紹SX1507, SX1508和SX1509主要特性,方框圖, 典型應用框圖和電路,以及SX1508EVK評估板電路圖和PCB布局圖.

The SX1507, SX1508 and SX1509 are complete ultra low voltage 1.2V to 3.6V General Purpose parallel Input/Output (GPIO) expanders ideal for low power handheld battery powered equipment. This family of GPIOs comes in 4-, 8-, 16-channel configuration and allows easy serial expansion of I/O through a standard 400kHz I2C interface. GPIO devices can provide additional control and monitoring when the microcontroller or chipset has insufficient I/O ports, or in systems where serial communication and control from a remote location is advantageous.

These devices can also act as a level shifter to connect a microcontroller running at one voltage level to a component running at a different voltage level, thus eliminating the need for extra level translating circuits. The core is operating as low as 1.425V while the dual I/O banks can operate between 1.2V and 3.6V independent of the core voltage and each other (5.5V tolerant).

The SX1507, SX1508 and SX1509 feature a fully programmable LED Driver with internal oscillator for enhanced lighting control such as intensity (via 256- step PWM), blinking and breathing (fade in/out) make them highly versatile for a wide range of LED applications.In addition, keypad application is also supported with the on-chip scanning engine which enables continuous keypad monitoring up to 64 keys without any additional host interaction and further reduce the bus activity.

The SX1507, SX1508 and SX1509 have the ability to generate mask-programmable interrupts based on falling/rising edge of any of its GPIO lines. A dedicated pin indicates to a host controller that a state change occurred in one or more of the lines.

Each GPIO is programmable via 8-bit configuration registers such as data registers, direction registers, pull-up/pull-down registers, interrupt mask registers and interrupt registers. These I/O expanders come in small footprint packages and are rated from -40℃ to +85℃ temperature range.

SX105x主要特性:

1.2V to 3.6V Low Operating Voltage with Dual Independent I/O Rails (VCC1, VCC2)

Enable Direct Level Shifting Between I/O Banks and Host Controller

5.5V Tolerant I/Os, Up to 15mA Output Sink on All I/Os (No Total Sink Current Limit)

Integrated LED Driver for Enhanced Lighting

Intensity Control (256-step PWM)

Blink Control (224 On/Off values)

Breathing Control (224 Fade In/Out values)

On-Chip Keypad Scanning Engine

Support Up to 8x8 Matrix (64 Keys)

Configurable Input Debouncer

4/8/16 Channels of True Bi-directional Style I/O

Programmable Pull-up/Pull-down

Push/Pull or Open-drain outputs

Programmable Polarity

Open Drain Active Low Interrupt Output (NINT)

Bit Maskable

Programmable Edge Sensitivity

Built-in Clock Management (Internal 2MHz Oscillator/External Clock Input, 7 clock values)

OSCIO can be Configured as GPO

400kHz I2C Compatible Slave Interface

4 User-Selectable I2C Slave Addresses

Power-On Reset and Reset Input (NRESET)

Ultra Low Current Consumption of typ. 1uA

-40℃ to +85℃ Operating Temperature Range

2kV HBM ESD Protection

Small Footprint Packages

Pb & Halogen Free, RoHS/WEEE compliant

SX105x應用:

Cell phones, PDAs, MP3 players

Digital camera, Notebooks, GPS Units

Any battery powered equipment

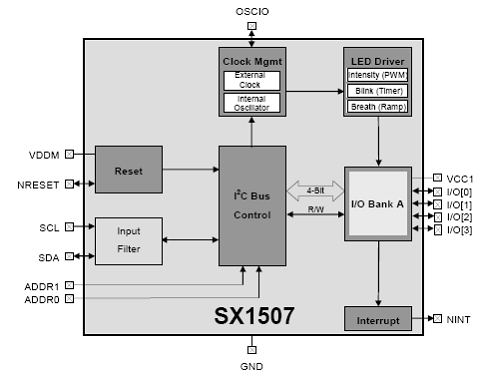

圖1.4路SX1507方框圖

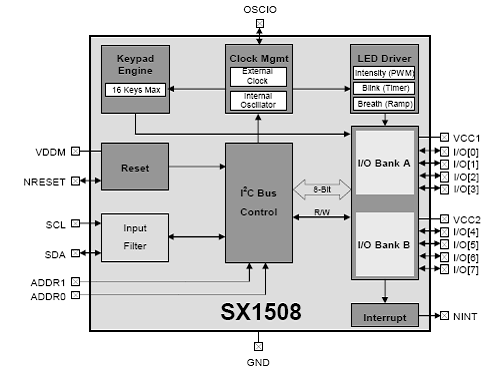

圖2.8路SX1508方框圖

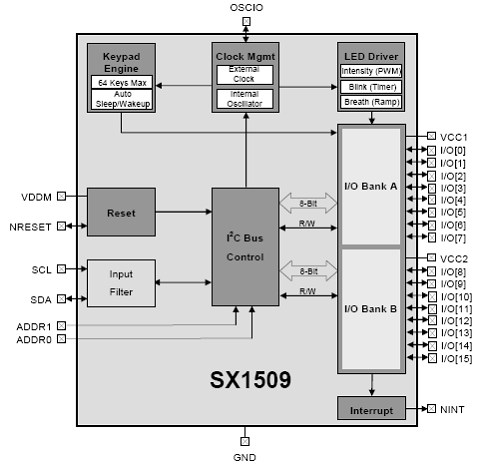

圖3.16路SX1508方框圖

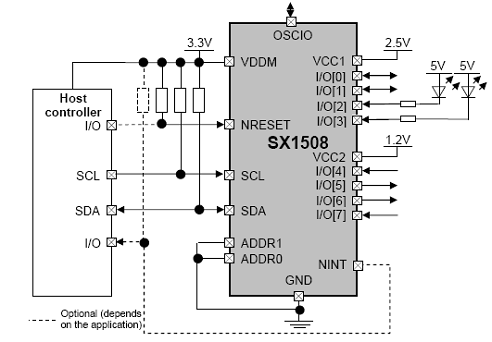

圖4.8路SX1508典型應用電路

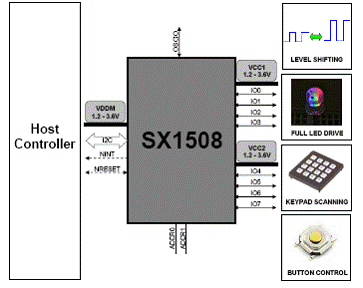

圖5.8路SX1508典型應用框圖

圖6.SX1508EVK評估板外形圖

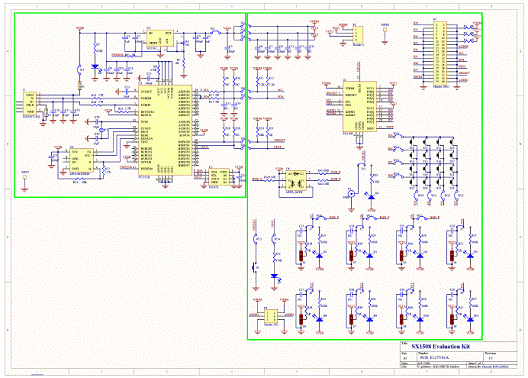

圖7.SX1508EVK評估板電路圖

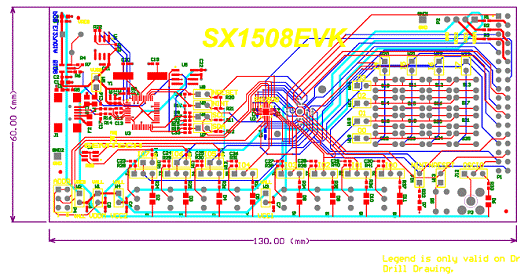

圖8.SX1508EVK評估板布局圖
