關鍵詞： LED驅動 , MAX16814 , Maxim

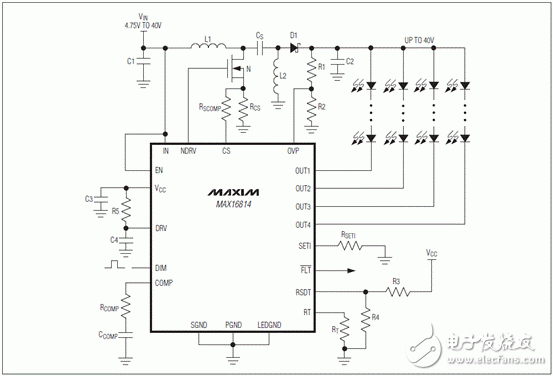

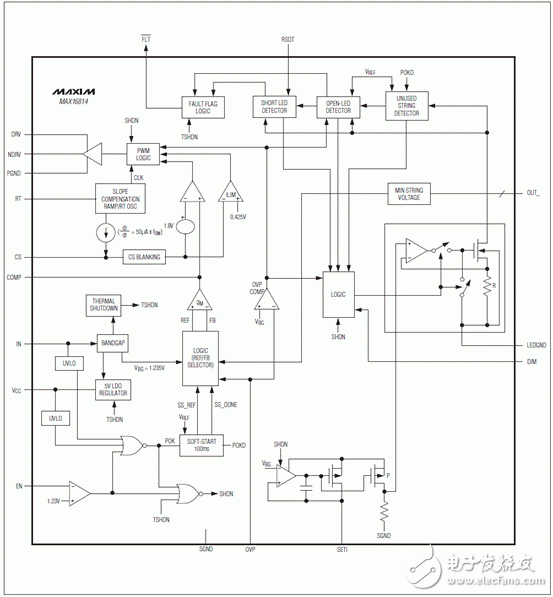

Maxim 公司的MAX16814是集成了高壓DC/DC控制器的四路高亮LED(HBLED)驅動器,輸入電壓4.75V-40V,能經受住汽車負載突變,可調輸出電流從20mA到150mA,以驅動一到四串LED,開關頻率200kHz到2MHz,自適應輸出電壓以最小化功耗,關斷電流小于40uA,主要用在汽車顯示屏LED背光,汽車RCL,DRL,前燈和霧燈,建筑物,工業和環境燈照明.本文介紹了MAX16814主要特性,功能框圖,典型應用電路以及MAX16814 評估板主要特性,電路圖,材料清單和PCB布局圖.

The MAX16814 high-efficiency, high-brightness LED (HB LED) driver provides up to four integrated LED current-sink channels. An integrated current-mode switching DC-DC controller drives a DC-DC converter that pro-vides the necessary voltage to multiple strings of HB LEDs. The MAX16814 accepts a wide 4.75V to 40V input voltage range and withstands direct automotive load-dump events. The wide input range allows powering HB LEDs for small to medium-sized LCD displays in automotive and general lighting applications.

An internal current-mode switching DC-DC controller supports the boost, coupled-inductor boost-buck, or SEPIC topologies and operates in an adjustable fre-quency range between 200kHz and 2MHz. It can also be used for single-inductor boost-buck topology in conjunc-tion with the MAX15054 and an additional MOSFET. The current-mode control with programmable slope com-pensation provides fast response and simplifies loop compensation. The MAX16814 also features an adaptive output-voltage control scheme that minimizes the power dissipation in the LED current-sink paths.

The MAX16814 consists of four identical linear current source channels to drive four strings of HB LEDs. The channel current is adjustable from 20mA to 150mA with an accuracy of ±3% using an external resistor. The external resistor sets all 4-channel currents to the same value. The device allows connecting multiple channels in parallel to achieve higher current per LED string. The MAX16814 also features pulsed dimming control, on all four channels through a logic input (DIM). In addition,the MAX16814A_ _ and MAX16814U_ _ include a unique feature that allows a very short minimum pulse width as low as 1μs.

The MAX16814 includes an output overvoltage, open- LED detection and protection, programmable shorted LED detection and protection, and overtemperature pro-tection. The device operates over the -40NC to +125NC automotive temperature range. The MAX16814 is avail-able in 6.5mm x 4.4mm, 20-pin TSSOP and 4mm x 4mm, 20-pin TQFN packages.

MAX16814主要特性:

4-Channel Linear LED Current Sinks with Internal MOSFETs Full-Scale LED Current Adjustable from 20mA to 150mA Drives One to Four LED Strings Boost, SEPIC, or Coupled-Inductor Boost-Buck Current-Mode DC-DC Controller 200kHz to 2MHz Programmable Switching Frequency External Switching Frequency Synchronization
Adaptive Output-Voltage Optimization to Minimize Power Dissipation

4.75V to 40V Operating Input Voltage Range

Less than 40μA Shutdown Current

5000:1 PWM Dimming at 200Hz (MAX16814A _ _ and MAX16814U_ _ Only)

Open-Drain Fault Indicator Output

Open-LED and LED Short Detection and Protection

Overtemperature Protection

Thermally Enhanced, 20-Pin TQFN and TSSOP Packages

MAX16814應用:

Automotive Displays LED Backlights

Automotive RCL, DRL, Front Position, and Fog Lights

LCD TV and Desktop Display LED Backlights

Architectural, Industrial, and Ambient Lighting
