MAX14595 High-Speed, Open-Drain Capable Logic-Level Translator

The MAX14595 is a dual-channel, bidirectional logic-level translator designed specifically for low power consumption making it suitable for portable and battery-powered equipment. Externally applied voltages, VCC and VL, set the logic levels on either side of the device. A logic signal present on the VL side of the device appears as the same logic signal on the VCC side of the device, and vice-versa.

The device is optimized for the I2C bus as well as the management data input/output (MDIO) bus where often high-speed, open-drain operation is required. When TS-bar is high, the device allows the pullup to be connected to the I/O port that has the power. This allows continuous I2C operation on the powered side without any disruption while the level translation function is off.

The part is specified over the extended -40°C to +85°C temperature range, and is available in 8-bump WLP and 8-pin TDFN packages.

MAX14595關(guān)鍵特性
Meets Industry Standards
I2C Requirements for Standard, Fast, and High* Speeds
MDIO Open Drain Above 4MHz*
Allows Greater Design Flexibility
Down to 0.9V Operation on VL Side
Supports Above 8MHz Push-Pull Operation
Ultra-Low Power Consumption
7μA (typ) VCC Supply Current
3μA (typ) VL Supply Current
Provides High Level of Integration
Pullup Resistor Enabled with One Side Power Supply when TS-bar Is High
12kΩ (max) Internal Pullup
Low Transmission Gate RON: 17Ω (max)
Saves Space
8-Bump, 0.4mm Pitch, 0.8mm x 1.6mm WLP Package
8-Pin, 2mm x 2mm TDFN Package

MAX14595應(yīng)用/使用
Devices with I2C Communication
Devices with MDIO Communication
General Logic-Level Translation
Portable and Battery-Powered Electronics

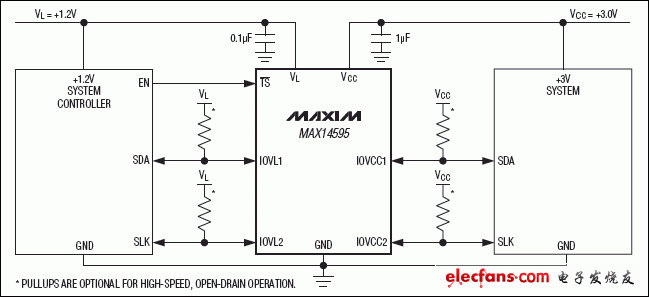

MAX14595應(yīng)用電路圖

?
