LM26LV-Q1 汽車類 1.6 V，LLP-6 出廠預設溫度開關和溫度傳感器

數據： LM26LV and LM26LV-Q1 1.6-V, WSON-6 Factory Preset Temperature Switch and Temperature Sensor 數據表

描述

The LM26LV and LM26LV-Q1 are low-voltage, precision, dual-output, low-power temperature switches and temperature sensors. The temperature trip point (T_TRIP) can be preset at the factory to any temperature in the range of 0°C to 150°C in 1°C increments. Built-in temperature hysteresis (T_HYST) keeps the output stable in an environment of temperature instability.

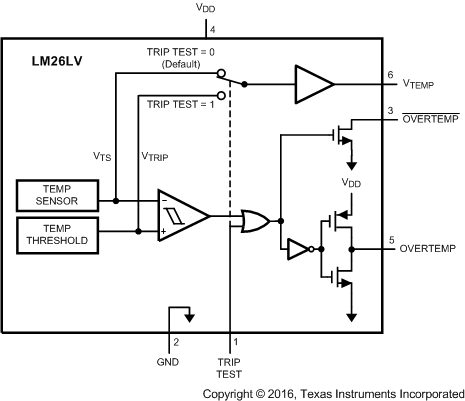

In normal operation the LM26LV or LM26LV-Q1 temperature switch outputs assert when the die temperature exceeds T_TRIP. The temperature switch outputs will reset when the temperature falls below a temperature equal to (T_TRIP – T_HYST). The OVERTEMP digital output, is active-high with a push-pull structure, while the OVERTEMP digital output, is active-low with an open-drain structure.

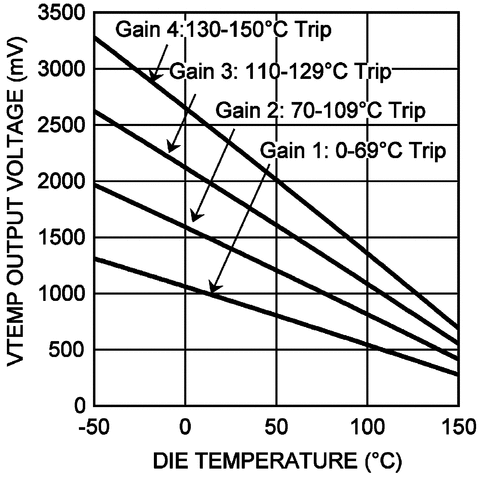

The analog output, V_TEMP, delivers an analog output voltage with Negative Temperature Coefficient (NTC).

Driving the TRIP_TEST input high causes the digital outputs to be asserted for in-situ verification and causes the threshold voltage to appear at the VTEMP output pin, which could be used to verify the temperature trip point.

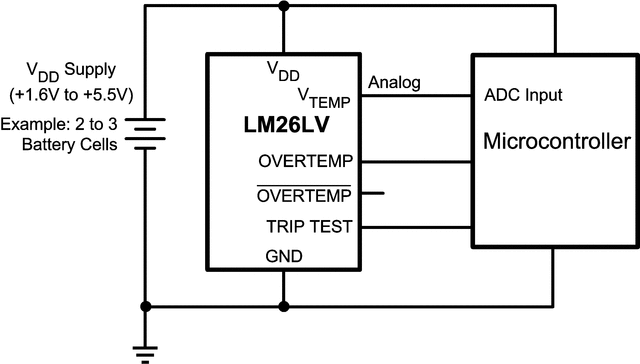

The LM26LV?s and LM26LV-Q1?s low minimum supply voltage makes them ideal for 1.8-V system designs. The wide operating range, low supply current, and excellent accuracy provide a temperature switch solution for a wide range of commercial and industrial applications.

特性

低1.6 V操作
低靜態電流
鎖存功能：設備可以鎖定過溫條件
推挽和漏極開路溫度開關輸出
0°C至150°C的寬跳變點范圍
非常線性模擬V _TEMP溫度傳感器輸出
V _TEMP輸出短路保護
精確溫度超過-50°C至150°C溫度范圍
出色的電源噪聲抑制
LM26LVQISD-130和LM26LVQISD-135符合AEC-Q100標準，采用汽車級流程制造：
- 器件溫度等級0：-40°C至150°C環境工作溫度范圍
- 器件HBM ESD分類等級3 A
- 器件CDM ESD分類等級C6
- 器件MM ESD分類等級M3

參數 與其它產品相比?溫度開關

?
Operating Temperature Range (C)
Accuracy Over Temp Range (Max) (C)
Sensor Gain (mV/Deg C)
SetPoint Value (deg C)
SetPoint Type
Output Type
Supply Voltage (Min) (V)
Supply Voltage (Max) (V)
Supply Current (Typ) (uA)
Comparator Channels (#)
Features
Rating
Package Group
Package Size: mm2:W x L (PKG)
Interface
?

LM26LV-Q1	LM26LV	LM57-Q1	TMP300-Q1	TMP302-Q1	TMP708	TMP708-Q1	TMP709	TMP709-Q1
-40 to 150 ? ?	0 to 150 ? ?	-50 to 125 -50 to 150 -50 to 160 ? ?	-40 to 125 ? ?	-40 to 125 ? ?	-40 to 125 ? ?	0 to 125 ? ?	-40 to 125 ? ?	0 to 125 ? ?
2.3 ? ?	2.3 ? ?	1.3 ? ?	2 ? ?	2 ? ?	3 ? ?	3 ? ?	3 ? ?	3 ? ?
-5.1 to -12.8 ? ?	-5.1 to -12.8 ? ?	-5.2 to 12.9 ? ?	10 ? ?	?	?	?	?	?
Range (0 to 150) 130, 135 ? ?	Range (0 to 150) 50, 60, 65, 70 75, 80, 85, 90 95, 100, 105, 110 115, 120, 125, 130 135, 140, 145, 150 ? ?	-40 to 160 ? ?	-40 to 125 ? ?	50, 55, 60, 65 70, 75, 80, 85 90, 95, 100, 105 110, 115, 120, 125 ? ?	0 to 125 ? ?	0 to 125 ? ?	0 to 125 ? ?	0 to 125 ? ?
Factory Programmed ? ?	Factory Programmed ? ?	Resistor Programmable ? ?	Resistor Programmable ? ?	Pin-Selectable ? ?	Resistor Programmable ? ?	Resistor Programmable ? ?	Resistor Programmable ? ?	Resistor Programmable ? ?
Open Drain Push Pull ? ?	Open Drain Push Pull ? ?	Open Drain Push Pull ? ?	Open Drain ? ?	Open Drain ? ?	Open Drain ? ?	Open Drain ? ?	Open Drain ? ?	Open Drain ? ?
1.6 ? ?	1.6 ? ?	2.4 ? ?	1.8 ? ?	1.4 ? ?	2.7 ? ?	2.7 ? ?	2.7 ? ?	2.7 ? ?
5.5 ? ?	5.5 ? ?	5.5 ? ?	18 ? ?	3.6 ? ?	5.5 ? ?	5.5 ? ?	5.5 ? ?	5.5 ? ?
8 ? ?	8 ? ?	24 ? ?	110 ? ?	8 ? ?	40 ? ?	40 ? ?	40 ? ?	40 ? ?
1 ? ?	1 ? ?	1 ? ?	1 ? ?	1 ? ?	1 ? ?	1 ? ?	1 ? ?	1 ? ?
Built-in Hysteresis Hysteresis (5°C) Temperature Sensor and Switch Trip Test ? ?	Built-in Hysteresis Hysteresis (5°C) Temperature Sensor and Switch Trip Test ? ?	Built-in Hysteresis Hysteresis (5°C or 10°C) Temperature Sensor and Switch Trip Test ? ?	Hysteresis (5°C or 10°C) Pin-Selectable Hysteresis Temperature Sensor and Switch ? ?	Hysteresis (5°C or 10°C) Pin-Selectable Hysteresis ? ?	Hysteresis (10°C or 30°C) Pin-Selectable Hysteresis ? ?	Hysteresis (10°C or 30°C) Pin-Selectable Hysteresis ? ?	Hysteresis (2°C or 10°C) Pin-Selectable Hysteresis ? ?	Hysteresis (2°C or 10°C) Pin-Selectable Hysteresis ? ?
Automotive ? ?	Catalog ? ?	Automotive ? ?	Automotive ? ?	Automotive ? ?	Catalog ? ?	Automotive ? ?	Catalog ? ?	Automotive ? ?
WSON ? ?	WSON ? ?	TSSOP ? ?	SC70 ? ?	SOT-5X3 ? ?	SOT-23 ? ?	SOT-23 ? ?	SOT-23 ? ?	SOT-23 ? ?
See datasheet (WSON) ? ?	See datasheet (WSON) ? ?	8TSSOP: 19 mm2: 6.4 x 3(TSSOP) ? ?	6SC70: 4 mm2: 2.1 x 2(SC70) ? ?	6SOT-5X3: 3 mm2: 1.6 x 1.6(SOT-5X3) ? ?	5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) ? ?	5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) ? ?	5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) ? ?	5SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) ? ?
Analog Output Switch ? ?	Analog Output Switch ? ?	Analog Output Switch ? ?	Analog Output Switch ? ?	Switch ? ?	Switch ? ?	Switch ? ?	Switch ? ?	Switch ? ?
