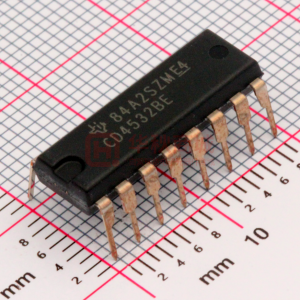

CD4532B consists of combinational logic that encodes the highest priority input (D7-D0) to a 3-bit binary code. The eight inputs, D7 through D0, each have an assigned priority; D7 is the highest priority and D0 is the lowest. The priority encoder is inhibited when the chip-enable input EI is low. When EI is high, the binary representation of the highest-priority input appears on output lines Q2-Q0, and the group select line GS is high to indicate that priority inputs are present. The enable-out (EO) is high when no priority inputs are present. If any one input is high, EO is low and all cascaded lower-order stages are disabled.
The CD4532B types are supplied in 16-lead hermetic dual-in-line ceramic packages (F3A suffix), 16-lead dual-in-line plastic packages (E suffix), 16-lead small-outline packages (M, M96, MT, and NSR suffixes), and 16-lead thin shrink small-outline packages (PW and PWR suffixes).
從中獲取數據表哈里斯半導體
| ? |
|---|
| Function |
| Technology Family |
| VCC (Min) (V) |
| VCC (Max) (V) |
| Channels (#) |
| Voltage (Nom) (V) |
| F @ Nom Voltage (Max) (Mhz) |
| ICC @ Nom Voltage (Max) (mA) |
| tpd @ Nom Voltage (Max) (ns) |
| Configuration |
| Type |
| IOL (Max) (mA) |
| IOH (Max) (mA) |
| Rating |
| Operating Temperature Range (C) |
| Package Group |
| Package Size: mm2:W x L (PKG) |
| Bits (#) |
| Digital input leakage (Max) (uA) |
| ESD Charged Device Model (kV) |
| ESD HBM (kV) |
| ? |
| CD4532B |
|---|
| Encoder Multiplexer ? ? |
| CD4000 ? ? |
| 3 ? ? |
| 18 ? ? |
| 1 ? ? |
| 5 10 15 ? ? |
| 8 ? ? |
| 0.3 ? ? |
| 110 ? ? |
| 8:4 ? ? |
| Standard ? ? |
| 1.5 ? ? |
| -1.5 ? ? |
| Catalog ? ? |
| -55 to 125 ? ? |
| PDIP SO SOIC TSSOP ? ? |
| See datasheet (PDIP) 16SO: 80 mm2: 7.8 x 10.2(SO) 16SOIC: 59 mm2: 6 x 9.9(SOIC) 16TSSOP: 32 mm2: 6.4 x 5(TSSOP) ? ? |
| 8 ? ? |
| 5 ? ? |
| 0.75 ? ? |
| 2 ? ? |
