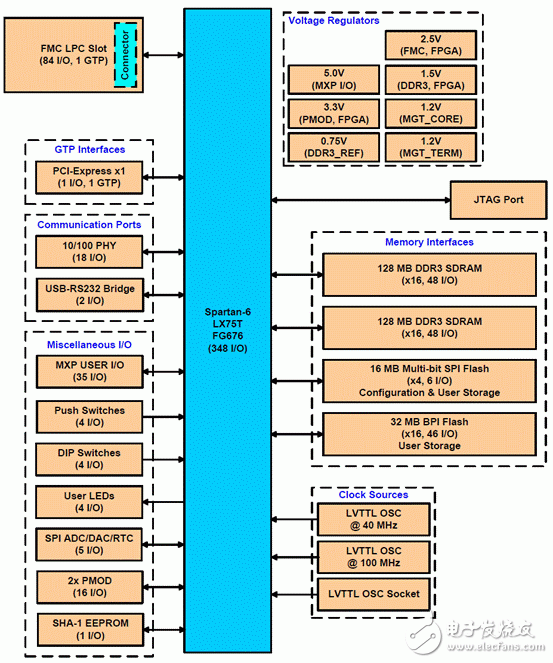

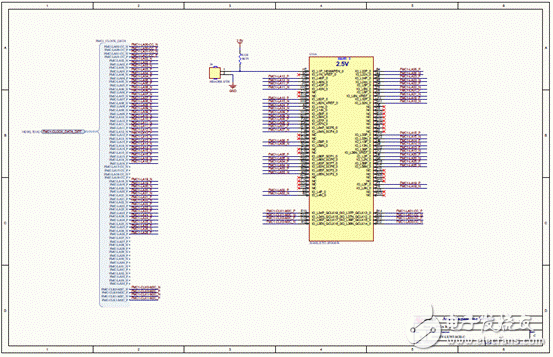

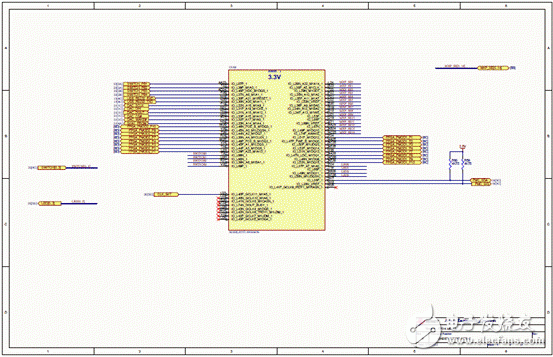

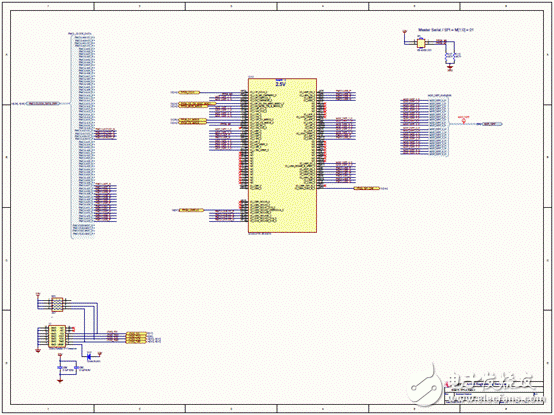

Avnet公司的Xilinx Spartan-6 FPGA LX75T FPGA開發板采用Xilinx公司的 Spartan-6 XC6SLX75T-3FGG676C FPGA,適合大容量的邏輯設計,以用戶為中心的DSP設計以及高性價比的嵌入式應用如汽車娛樂系統,平板顯示器,多功能打印機,機頂盒,家庭網絡以及視頻監測等.本文介紹了Spartan-6 FPGA LX75T開發板主要特性,框圖,詳細電路圖和材料清單.

The Spartan-6 LX75T FPGA Development Kit provides a complete hardware environment for designers to accelerate their time to market. The kit delivers a stable platform to develop and test designs targeted to the advanced Xilinx FPGA family. The installed Spartan-6 LX75T device offers a prototyping environment to effectively demonstrate the enhanced benefits of leading edge Xilinx FPGA solutions. Reference designs are included with the kit to exercise standard peripherals on the evaluation board for a quick start to device familiarization.

Spartan-6 FPGA LX75T開發板主要特性:

FPGA

— Xilinx Spartan-6 XC6SLX75T-3FGG676C FPGA

I/O Connectors

— One FMC LPC general-purpose I/O expansion connectors

— One MXP User I/O connector

— Two PMOD connectors

RocketIO™ GTP Transceiver Connectors

— One transceiver supplied on an FMC connectors for use by an expansion module

— One PCI Express add-in card interface (1 lanes @ 2.5 Gbps)

Memory

— 256 MB DDR3 SDRAM components (2 banks of 128 MB x 16)

— 32 MB Parallel Flash (x16)

— 1 Kb EEPROM with SHA-1 Engine

Communication

— USB-RS232 Port

— 10/100 Ethernet port

Power

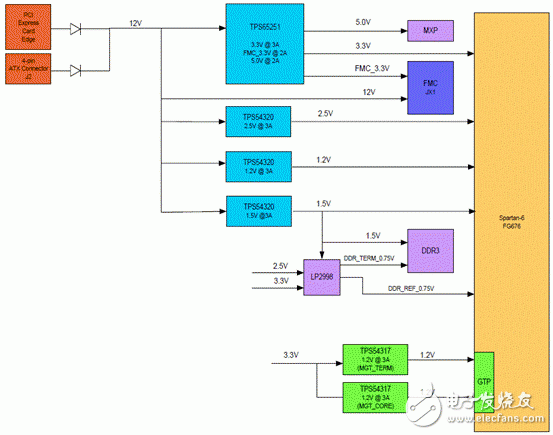

— Regulated 5.0V, 3.3V, 2.5V, 1.5V and 1.2V supply voltages derived from the PCI Express slot or an external 12 V supply

— SSTL2 Termination Regulators

— Point of Load Regulators for MGT supply rails

Configuration

— 16 MB Multi-bit (x4) SPI Flash

— Xilinx Parallel Cable IV or Platform USB Cable support for JTAG Programming/Configuration

Other

— Four User LEDs

Four User Push Buttons

Four User DIP Switches

— ADC/DAC/RTC combination device
