sub-GHz IC具有小數N分頻鎖相環的雙向遙控車門開關的設計

　　雙向遙控鑰匙（RKE）系統為用戶提供安全和便利。對于設計師，一個復雜的IC陣列提供完整的收發器功能，利用未經授權的ISM頻段。其中，sub-GHz收發器集成電路從模擬設備，飛思卡爾半導體和集成功能的小數N分頻鎖相環在先進的雙向RKE系統設計更大的靈活性。

　　傳統的無線設備，如汽車的鑰匙是為了打開門，允許使用的金屬鑰匙啟動發動機。后來RKE系統添加被動進入（PE）的能力，在關鍵的集成無源低頻轉發器鏈作為授權過程的一部分來解鎖，解鎖轉向，沒有金屬使用鑰匙啟動發動機。更高度集成的設備的可用性，制造商繼續提供RKE應用大大增強功能，提供更方便的功能，在越來越多的RKE應用包括車輛出入，建筑訪問安全性提高，和其他。

　　Advanced transceivers

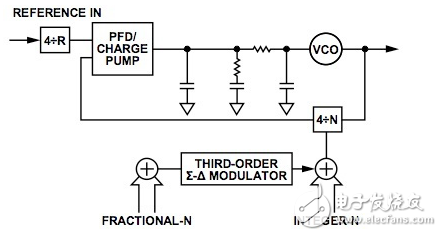

　　At the heart of these enhanced two-way RKE systems， advanced transceivers operating in the unlicensed ISM band offer the combination of high output power， high receiver sensitivity， and low power consumption increasingly required in two-way RKE applications. Advanced ISM transceivers enable two-way HF communications for both traditional RKE and PE applications. Compared to LF communications， HF communications offer greater operating range， and improved data rates support more sophisticated wireless applications. Available HF transceivers boast receiver sensitivity better than -100 dBm and can deliver transmitter power above 10 dBm. At the heart of devices such as the Analog Devices ADF7020， fractional-N PLLs offer multiple advantages （Figure 1）.
