NXP公司的LPC8N04是內置NFC接口的ARM Cortex-M0+ MCU,工作頻率高達8MHz,內置了嵌套向量中斷控制器(NVIC),ARM串行有線調試(SWD),具有NFC/RFID ISO 14443 type A接口,主要用在NFC控制的可配置LED串/圣誕樹LED,智能玩具/交互機器人數據記錄器,無接觸控制板,無接觸診斷,NFC電子鎖,智能制造和NFC OTA.本文介紹了C主要特性和優勢,框圖,電源架構圖以及LPC8N04開發板主要特性,電路圖和PCB設計圖.

The NXP LPC8N04 is an IC optimized for an entry level Cortex-M0+ MCU with built-in NFC interface. LPC8N04 supports an effective system solution with a minimal number of external components for NFC related applications.

The embedded ARM Cortex-M0+ offers flexibility to the users of this IC to implement their own dedicated solution. The LPC8N04 contains multiple features, including multiple power-down modes and a selectable CPU frequency of up to 8 MHz, for ultra-low power consumption.

Users can program this LPC8N04 with the industry-wide standard solutions for ARM Cortex-M0+ processors.

LPC8N04主要特性和優勢:

? System
? ARM Cortex-M0+ processor running at frequencies of up to 8 MHz
? ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC)
? ARM Serial Wire Debug (SWD)
? System tick timer
? IC reset input
? Memory
? 32 kB on-chip flash programming memory
? 4 kB on-chip EEPROM of which 256 byte can be write protected
? 8 kB SRAM
? Digital peripherals
? Up to 12 General Purpose Input Output (GPIO) pins with configurablepull-up/pull-down resistors and repeater mode
? GPIO pins which can be used as edge and level sensitive interrupt sources
? High-current drivers/sinks (20 mA) on four GPIO pins
? High-current drivers/sinks (20 mA) on two I2C-bus pins
? Programmable WatchDog Timer (WDT)
? Analog peripherals
? Temperature sensor with 1.5 C absolute temperature accuracy between 40 C
and +85 C
? Communication interfaces
? NFC/RFID ISO 14443 type A interface
? I2C-bus interface supporting full I2C-bus specification and fast mode with a datarate of 400 kbit/s, with multiple address recognition and monitor mode
? Energy harvesting functionality to power the LPC8N04.
? Clock generation
? 8 MHz internal RC oscillator, trimmed to 2 % accuracy, which is used for thesystem clock
? Timer oscillator operating at 32 kHz linked to the RTC timer unit
? Power control
? Support for 1.72 V to 3.6 V external voltages
? The LPC8N04 can also be powered from the NFC field
? Activation via NFC possible
? Integrated Power Management Unit (PMU) for versatile control of powerconsumption
? Four reduced power modes for ARM Cortex-M0+: sleep, deep sleep, deeppower-down and battery off
? Power gating for each analog peripheral for ultra-low power operation
? < 50 nA IC current consumption in battery off mode at 3.0 V
? Power-On Reset (POR)
? Unique device serial number for identification

LPC8N04應用:

? Configurable LED strip/christmas tree LEDs via NFC
? Smart toy/interactive robot data logger
? Buttonless/contactless control panel
? Contactless diagnostic
? NFC e-locker
? Smart manufacturing
? NFC OTA

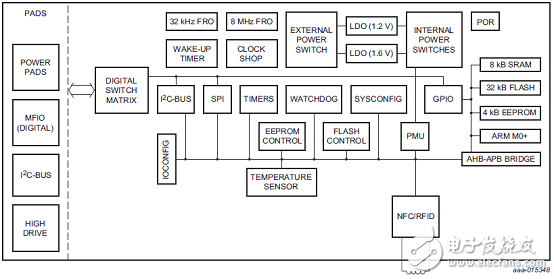

圖1.LPC8N04框圖

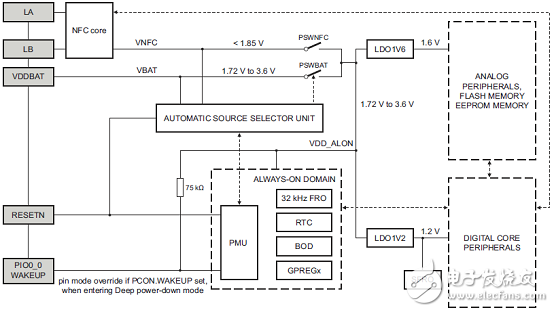

圖2.LPC8N04電源架構圖

LPC8N04開發板

The LPC8N04 Development Board board is developed by NXP to enable evaluation of and prototyping with the LPC8N04 MCU. Figure 3shows each side of LPC8N04 Development Board. The LPC8N04 device, buttons, jumpers and debug probe circuitry are on the top side (along with the board name). On the bottom side is a 5x7 array of LEDs, plus a surface mount speaker (LS1).
?

圖3.LPC8N04開發板外形圖

LPC8N04開發板主要特性:

? Compatible with MCUXpresso IDE and other popular toolchains (incl. IAR and Keil)
? Detachable, two-section board featuring minimal LPC8N04 system and debug probe /demo circuitry (LEDs and speaker)
? LPC8N04 Arm Cortex-M0+ MCU running at up to 8MHz
? Integrated NFC antenna
? Dual coin cell battery holders for
? On-board CMSIS-DAP (debug probe) with VCOM port, based on LPC11U35 MCU
? Debug connector to allow debug of target LPC8N04 MCU using an external probe
? LPC8N04 User button
? LPC8N04 Reset button
? 5x7 LED array for user applications
? Surface mounted speaker with amplifier
? Expansion connections with pin-outs compatible with I2C Grove and Pmodconnectors for easy connection of sensors
? Pre-programmed with demo message scrolling / tune playing application (requiresNFC-enabled phone to use; iOS 11 phones only support limited functionality)

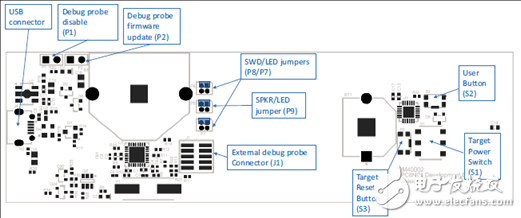

圖4.LPC8N04開發板布局(頂層絲印)

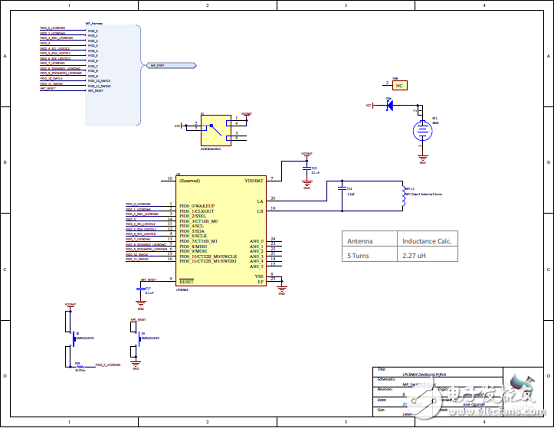

圖5.LPC8N04開發板電路圖(1)

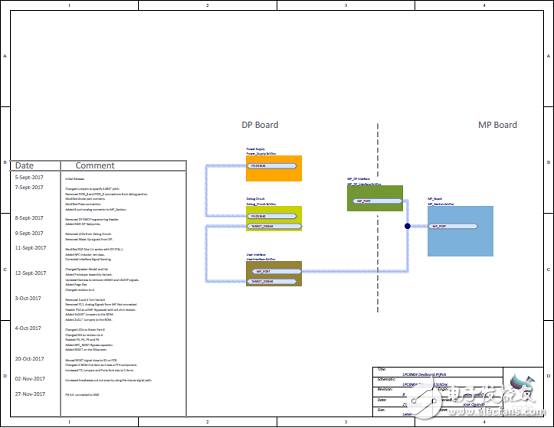

圖6.LPC8N04開發板電路圖(2)

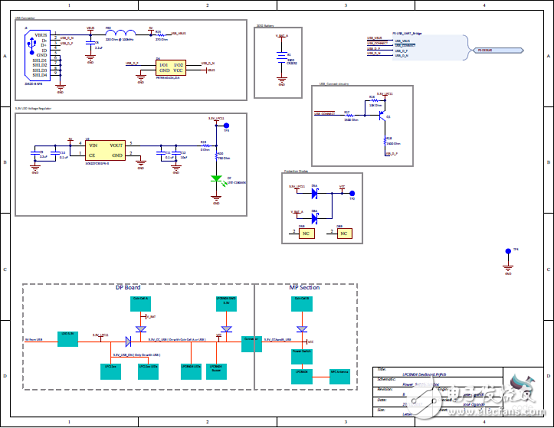

圖7.LPC8N04開發板電路圖(3)

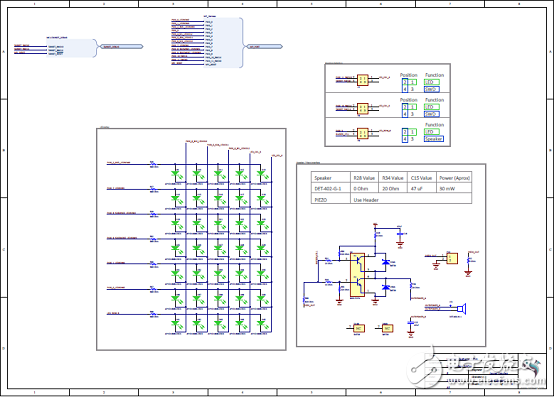

圖8.LPC8N04開發板電路圖(4)

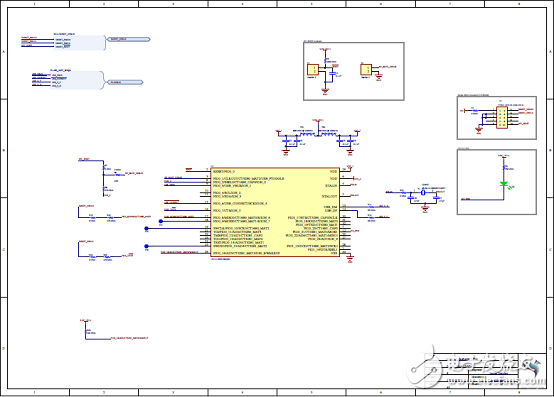

圖9.LPC8N04開發板電路圖(5)

圖10.LPC8N04開發板電路圖(6)

圖11.LPC8N04開發板PCB外形圖(頂層)

圖12.LPC8N04開發板PCB外形圖(底層)
詳情請見:
https://www.nxp.com/docs/en/data-sheet/LPC8N04.pdf?fsrch=1&sr=1&pageNum=1
和https://www.nxp.com/docs/en/user-guide/UM11082.pdf
UM11082.pdf
