Altera? MAX? 10 FPGA介紹（特性、優勢、電路圖）

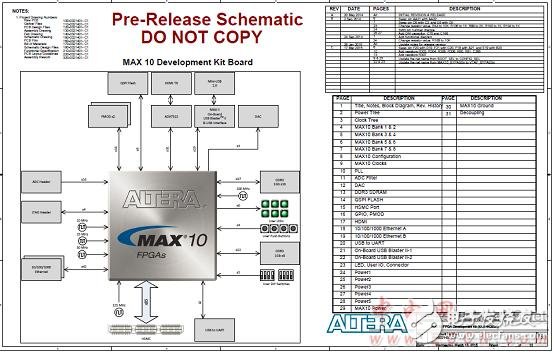

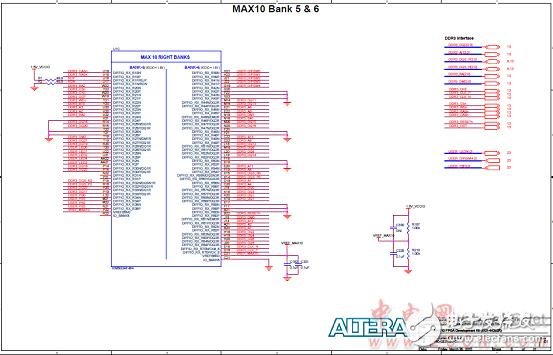

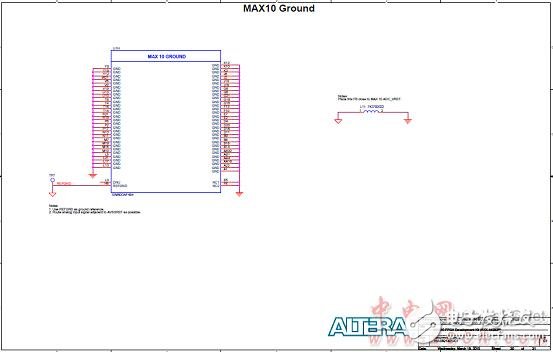

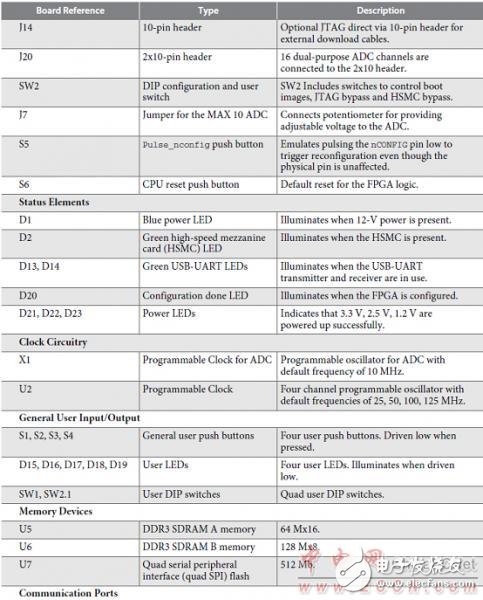

Altera公司的MAX 10器件是單片非易失低成本可編邏輯器件(PLD),具有內部存儲可配置的雙閃存,用戶閃存,集成了ADC,支持單片Nios II軟件處理器,主要用在系統管理,I/O擴展,通信控制面板,汽車電子,工業控制和消費類電子產品.本文介紹了Altera? MAX? 10 FPGA主要優勢,Altera? MAX? 10 FPGA開發套件主要特性,框圖,元件分布圖,電路圖和主要元件表.

MAX? 10 devices are single-chip, non-volatile low-cost programmable logic devices (PLDs) to integrate the optimal set of system components.

The highlights of the MAX? 10 devices include:
Internally stored dual configuration flash
User flash memory
Instant on support
Integrated analog-to-digital converters (ADCs)
Single-chipNios II soft core processor support

MAX? 10 devices are the ideal solution for system management, I/O expansion, communication control planes, industrial, automotive, and consumer applications.

Altera? MAX? 10 FPGA主要優勢:

Advantage

Supporting Feature

Simple and fast configuration

Secure on-die flash memory enables device configuration in less than 10 ms

Flexibility and integration

Single device integrating PLD logic, RAM, flash memory, digital signal processing (DSP), ADC, phase-locked loop (PLL), and I/Os

Small packages available from 3 mm × 3 mm

Low power

Sleep mode—significant standby power reduction and resumption in less than 1 ms

Longer battery life—resumption from full power-off in less than 10 ms

20-year-estimated life cycle

Built on TSMC’s 55 nm embedded flash process technology

High productivity design tools

Quartus? II web edition (no cost license)

Qsys system integration tool

Digital Signal Processing (DSP) Builder

Nios? II Embedded Design Suite (EDS)

Altera? MAX? 10 FPGA開發套件

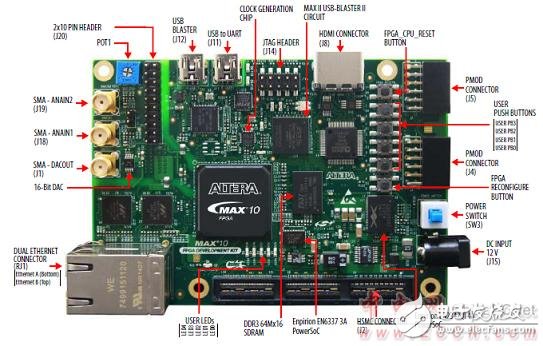

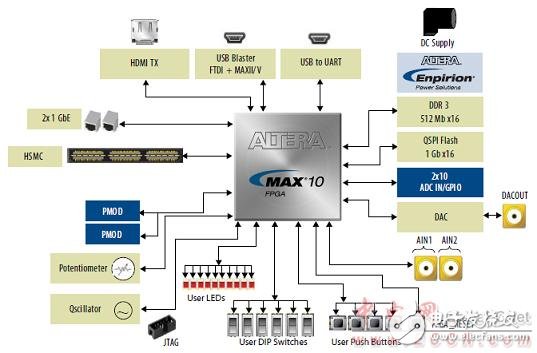

The Altera? MAX? 10 FPGA Development Kit provides a full featured design platform built around a 50 K logic elements (LEs) MAX 10 FPGA, optimized for system level integration with on-die analog-to-digital converter (ADC), dual-configuration flash, and DDR3 memory interface support. The board features on-board USB-BlasterTM II, high-speed mezannine card (HSMC), and Pmod? Compatible expansion cards, high-definition multimedia interface (HDMI) output, and dual Ethernet for industrial Ethernet applications. The MAX 10 FPGA Development Kit provides the perfect system-level prototyping solution for industrial, automotive, consumer, and many other market applications.

With this development board, you can:
Develop designs for the 10M50D, F484 package FPGA
Measure the performance of the MAX 10 FPGA analog-to-digital block conversion
Interface MAX 10 FPGAs to DDR3 memory at 300 MHz performance
Run embedded Linux using the Nios? II processor
Interface to daughtercards and peripherals using HSMC and DigilentPmod? Compatible connectors

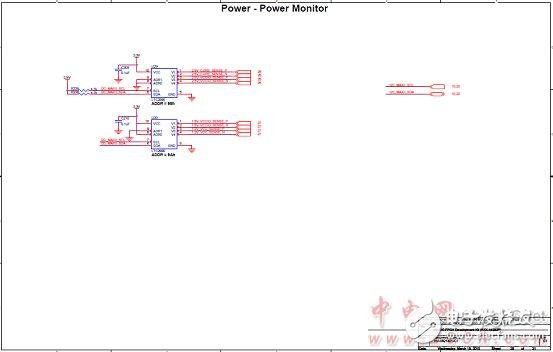

Measure FPGA power (VCC_CORE and VCC_IO) using the power monitor graphical user interface (GUI)
Reuse the kit’s PCB board and schematic as a model for your design
The MAX 10 FPGA Development Kit includes the following:
RoHS- and CE-compliant MAX 10 FPGA development board
Featured devices
MAX 10 FPGA (10M50D, dual supply, F484 package)

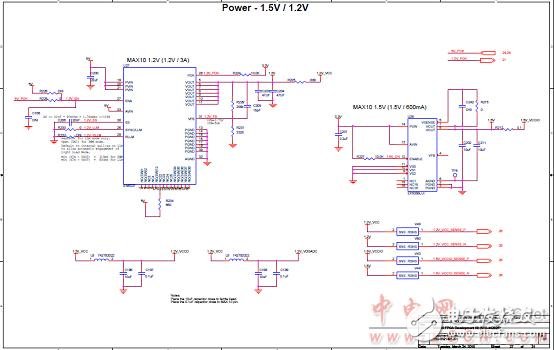

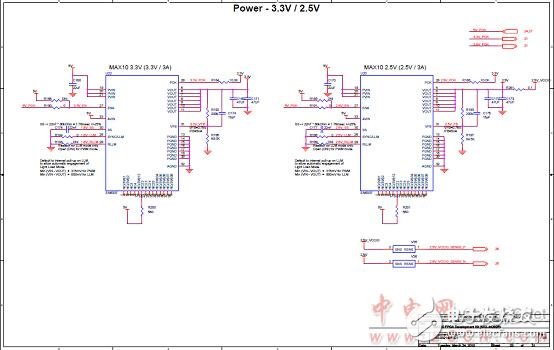

Enpirion? EN2342QI 4A PowerSoC voltage-mode synchronous step-down converter with integrated inductor
Enpirion EN6337QA?3A ?high-efficiency PowerSoC DC-DC step-down converters with integrated inductor

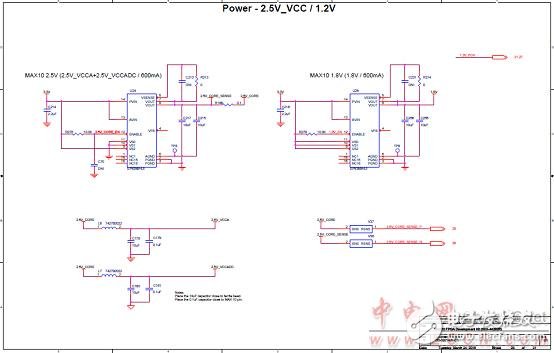

Enpirion EP5358xUI 600 mA PowerSoC DC-DC step-down converters with integrated inductor

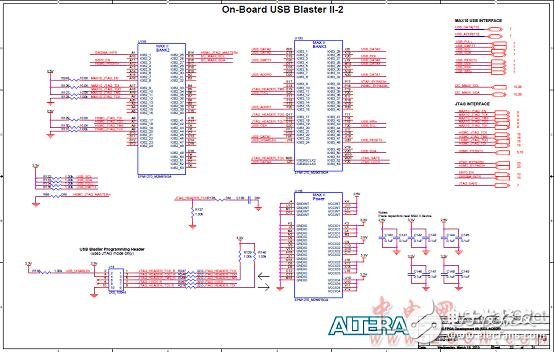

MAX II CPLD – EPM1270M256C4N (On-board USB-Blaster II)

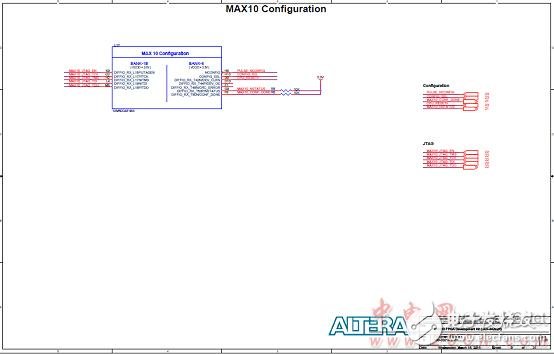

Programming and Configuration
Embedded USB-Blaster II (JTAG)
Optional JTAG direct via 10-pin header
Memory devices

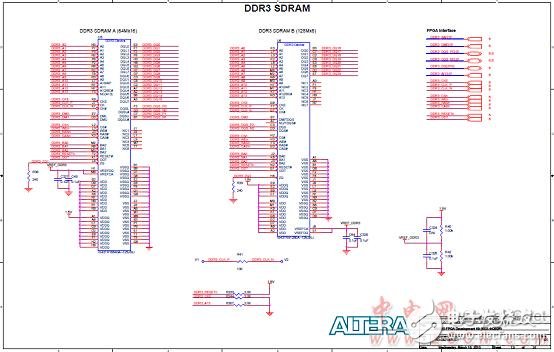

64Mx16 1 Gb DDR3 SDRAM with soft memory controller
128Mx8 1 Gb DDR3 SDRAM with soft memory controller
512Mb quad serial peripheral interface (quad SPI) flash memory
Communication ports

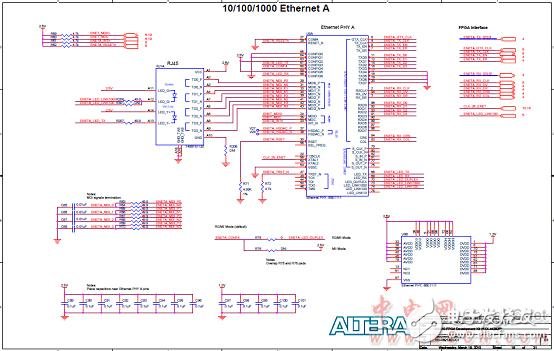

Two Gigabit Ethernet (GbE) RJ-45 ports

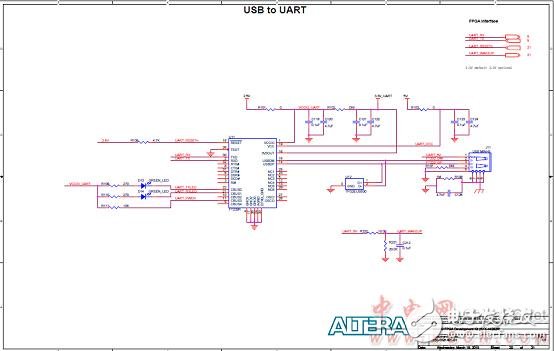

One mini-USB2.0 UART

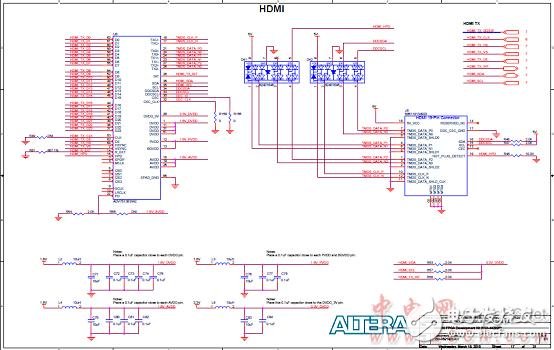

One HDMI video output

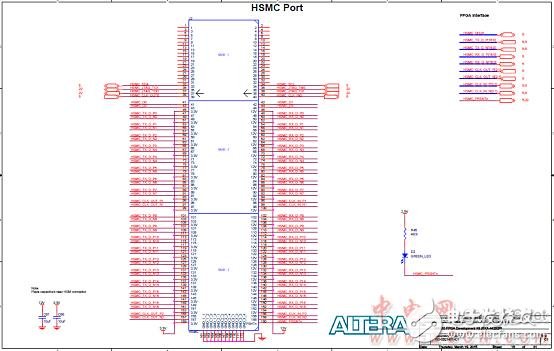

One universal HSMC connector (see HSMC expansion cards)

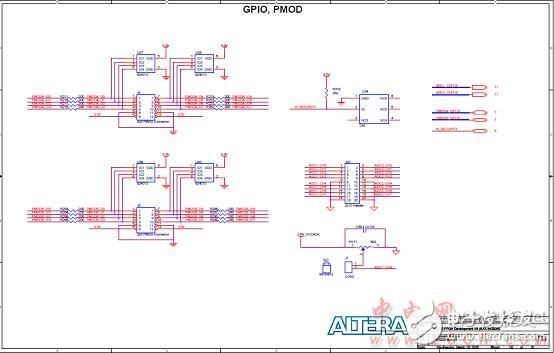

Two 12-pin DigilentPmod? Compatible connectors (see Pmod? Compatible expansion cards)
Analog
Two MAX 10 FPGA ADC SMA inputs
2x10 ADC header
Potentiometer input to ADC

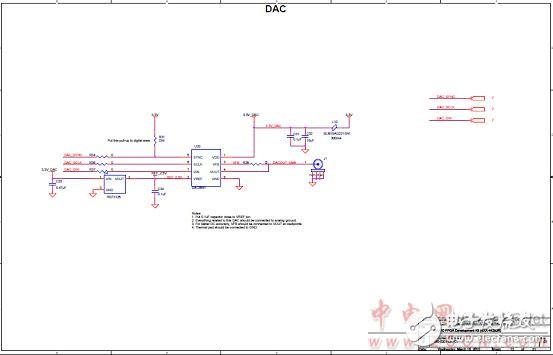

One external 16 bit digital-to-analog converter (DAC) device with SMA output

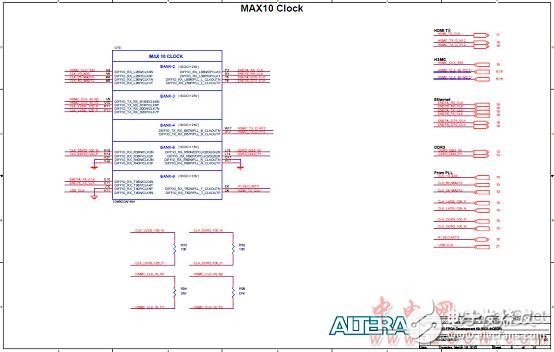

Clocking
25 MHz single-ended, external oscillator clock source
Silicon labs clock generator with programmable frequency GUI

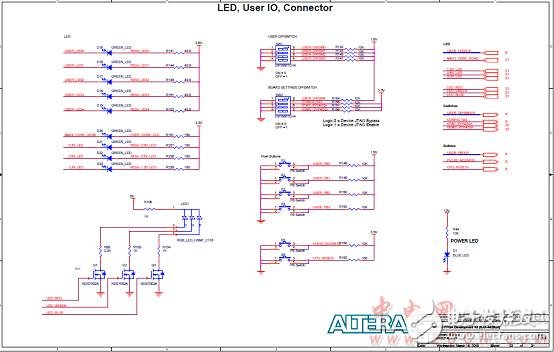

Switches, push buttons, jumpers, and status LEDs
Mini-USB cable for on-board USB-Blaster II
2A power supply and cord
Free Quartus? II Web Edition design software (download software and license from the website)?
Complete documentation
User manual, bill of materials, schematic, and board files
