MAC57D5xx系列主要特性和高級框圖

NXP公司的MAC57D5xx系列產品之用于汽車儀表盤和工業的多核ARM MCU,基于ARM? Cortex-A5(頻率高達320MHz)32位處理器和ARM? Cortex-A4(頻率高達160MHz)32位處理器以及ARM? Cortex-M0+32位I/O處理器,支持ARMv7- ISA,支持高達2個WVGA分辨率顯示,目標應用在汽車電子.本文介紹了MAC57D5xx系列主要特性,高級框圖和詳細框圖,以及包括定制評估板MAC57D5-516DC,適配板MAC57D5-208 (208LQFP和子板MAC57D5-516 (516BGA)在內的MAC57D5xx系列評估板主要特性和電路圖.

The MAC57D5xx MCU family is a multi-core architecture solution for mid-range instrument cluster and industrial applications. This MCU is based on the ARM? Cortex?-M processor for real time and an ARM? Cortex?-A processors for applications and human machine interfaces that offer leading edge performance & scalability.

The MAC57D5xx MCU supports up to 2 WVGA resolution displays, one with in line head-up display hardware warping. The graphics content is generated using a powerful Vivante 2D GPU and the 2D animation and composition engine, to reduce memory footprint for content creation, integrated stepper motor drivers and a powerful I/O processor.

The MAC57D5xx MCU integrates NXP?’s latest SHE-compliant CSE2 engine and delivers support ISO26262 ASIL-B functional safety compliance.

MAC57D5xx系列主要特性:

? ARM? Cortex-A5, 32-bit CPU

– Supports ARMv7- ISA

– 32 KB Instruction cache, 32 KB Data cache

– NEON SIMD Media Processing Engine

– FPU supporting double precision floating pointoperations

– Memory Management Unit

– GIC Interrupt Controller

– Up to 320 MHz

? ARM? Cortex-M4, 32-bit CPU

– Supports ARMv7 - ISA

– 16 KB Instruction cache, 16 KB Data cache

– 64 KB Tightly-Coupled Memory (TCM)

– Single Precision FPU

– NVIC Interrupts Controller

– 1.25 DMIPS per MHz integer performance

– Up to 160 MHz

? I/O Processor

– ARM? Cortex-M0+, 32-bit CPU

– Intelligent Stepper Motor Drive

? Memory subsystem

– System Memory Protection Unit

– 4 MB on-chip flash supported with the flashcontroller

– 1 MB on-chip SRAM with ECC

– 1.3 MB on-chip Graphics SRAM with FlexECC

? Supports wake-up from low power modes via theWKPU controller

? On-chip voltage regulator

– External 3.3 V input supply

– Option for direct, external supply of core voltage

– Low Voltage Detect (LVD) and High Voltage

Detect (HVD) on various supplies and regulators

? Debug functionality

– Run-time debug control of cores and visibility ofsystem resources using the Debug Access Port(DAP)

– IEEE 1149.1/ IEEE 1149.7 System JTAG Controller(SJTAG)

– Program and Data Trace support (16-bit data width)implemented by the ARM Trace Port Interface Unit(TPIU) Trace capture

? Timer

– Four 8-channel Flextimer modules (FTM)

– Two 4 channel System Timer Module (STM)

– Three Software WatchDog Timers (SWT)

– One 8 channel Periodic Interrupt Timer (PIT)

– Autonomous Real Time Counter (RTC)

? Analog

– 1 x 24 channel, 12-bit analog-to-digital converter(ADC)

– 2 analog comparators (CMP)

? Security

– Cryptographic Services Engine (CSE)

? Safety

– ISO26262 ASIL-B compliance

– Password and Device Security (PASS) supportingadvanced censorship and life-cycle management

– One Fault Collection and Control Unit (FCCU) tocollect faults and issue interrupts

? Multiple operating modes

– Includes enhanced low power operation

? Memory interfaces

– 2 x Dual QuadSPI Serial flash controllers

– Supports SDR and DDR serial flash

– Support for 3.3 V Hyperflash (Spansion)

– DRAM controller supporting SDR and DDR2

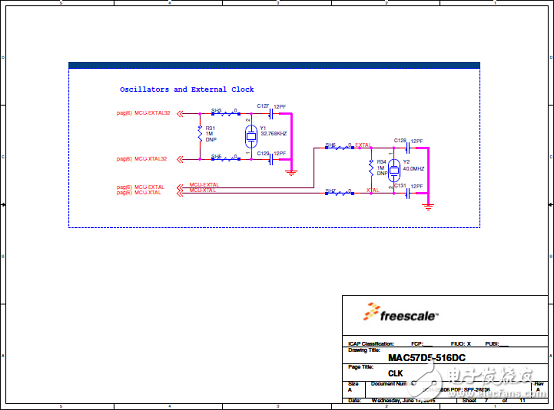

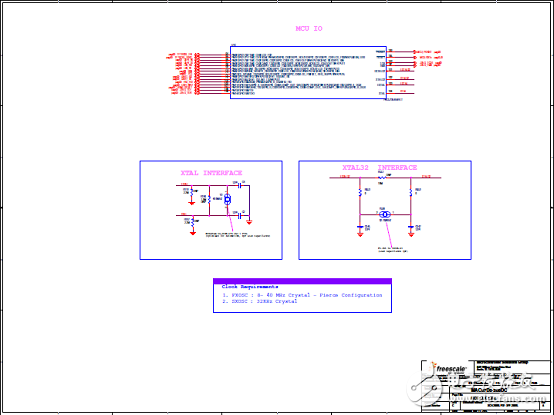

? Clock interfaces

– 8-40 MHz external crystal (FXOSC)

– 16 MHz IRC (FIRC)

– 128 kHz IRC (SIRC)

– 32 kHz external crystal (SXOSC)

– Clock Monitor Unit (CMU)

– Frequency modulated phase-locked loop (FMPLL)

– Real Time Counter (RTC)

? Graphics interfaces

– Vivante GC355 GPU supporting OpenVG 1.1

– 2 x 2D-ACE Display Controllers (with inline Head-Up-Display warping)

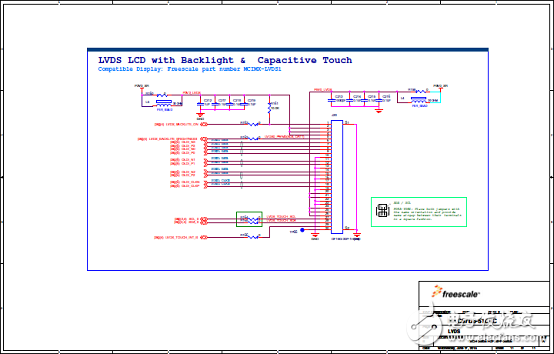

– Digital RGB, TCON_0 (RSDS), TCON_1 and OpenLDI/LVDS output options

– Digital Video Input (VIU4)

– RLE Decoder for memory-memory decompression

– 40x4 segment LCD driver, reconfigurable as 38x6 or 36x8

? Cluster peripherals

– Sound Generator Module (SGM)

– 6 Stepper Motor Drivers with Stepper Stall Detect

? Communication

– Ethernet 10/100 + AVB (ENET)

– MLB50

– FlexCAN x 3

– DSPI x 5

– LINFlexD x 3 (1 x Master/Slave, 2 x Master only)

– I2C x 2

? eDMA controller with multiple transfer request sources using DMAMUX

? Boot Assist Flash (BAF) supports internal flash programming

MAC57D5xx系列目標應用:

Automotive

MAC57D5xx系列主要特性和高級框圖

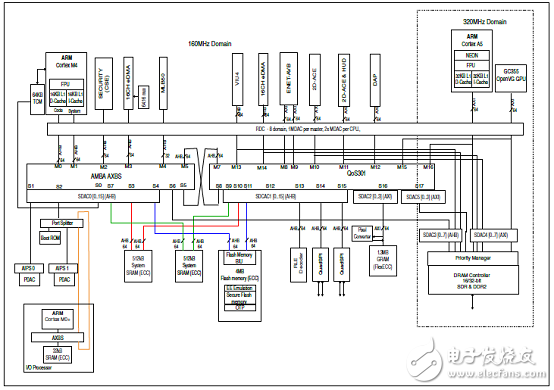

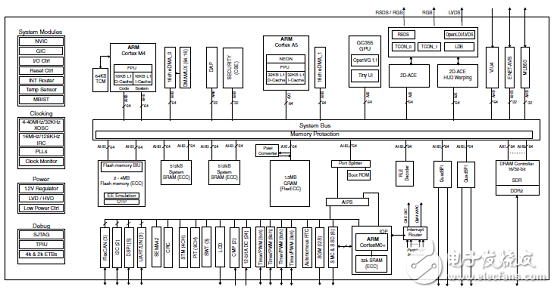

圖1.MAC57D5xx系列高級框圖

MAC57D5xx系列主要特性和高級框圖

圖2.MAC57D5xx系列詳細框圖

MAC57D5xx系列評估板

1.Customer Evaluation Board [MAC57D5-516DC]

2.Adapter cards MAC57D5-208 (208LQFP)

3.Daughter cards MAC57D5-516 (516BGA)

This user guide details the setup and configuration of the NXPMAC57D5xx Mother Board (MB) Customer EvaluationBoard (hereafter referred to as the EVB) and its daughter cards(208 LQFP and 516 BGA).

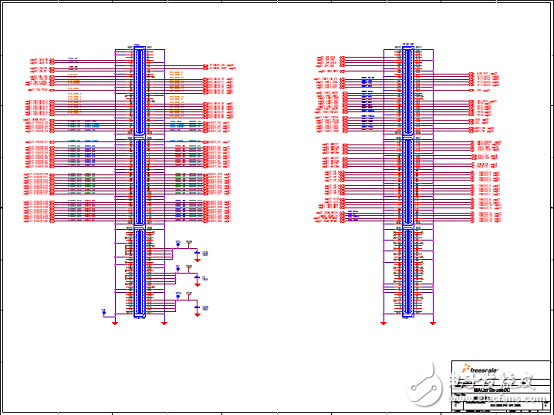

The EVB is intended to provide a low cost mechanism forcustomer evaluation of the MAC57D5xx family ofmicrocontrollers, and to facilitate hardware and softwaredevelopment. The EVB is intended for bench / laboratory useand has been designed using ambient temperature specifiedcomponents. Two daughter cards are available which connectto the EVB via high-density connectors. Please consult yourNXP representative for more details.

This product contains components that may be damaged byelectrostatic discharge. Observe precautions for handlingelectrostatic sensitive devices when using this EVB and
associated microcontroller.

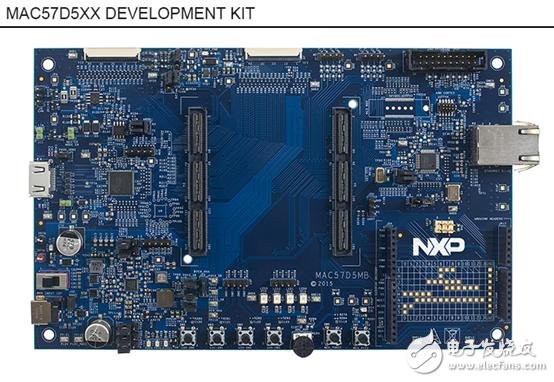

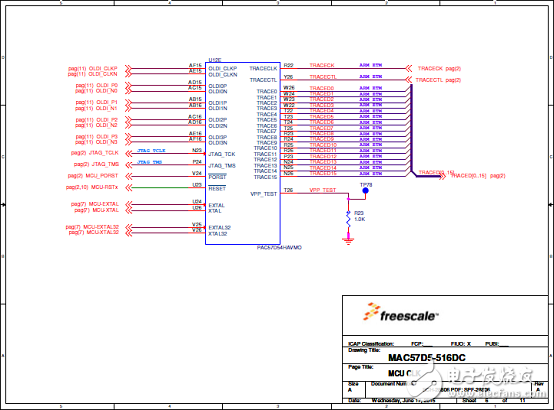

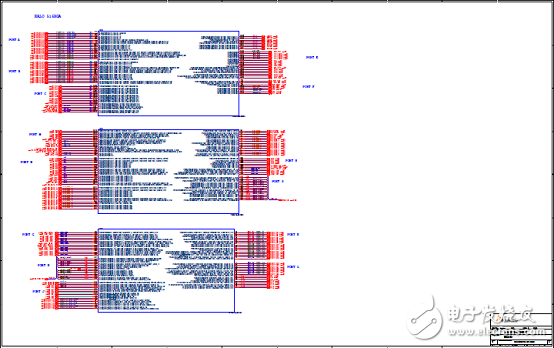

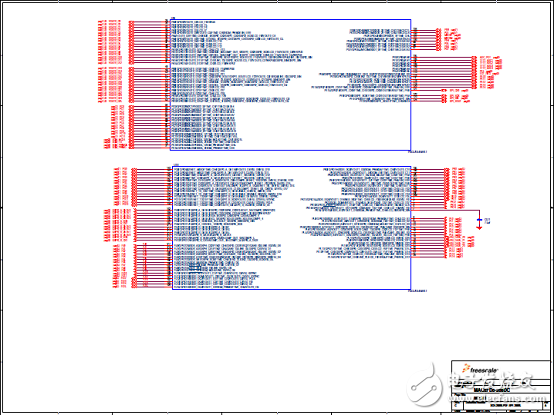

Customer Evaluation Board [MAC57D5-516DC]

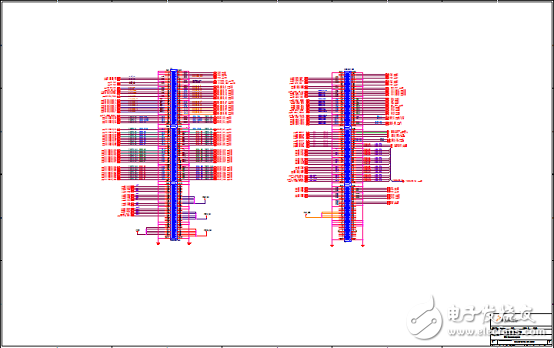

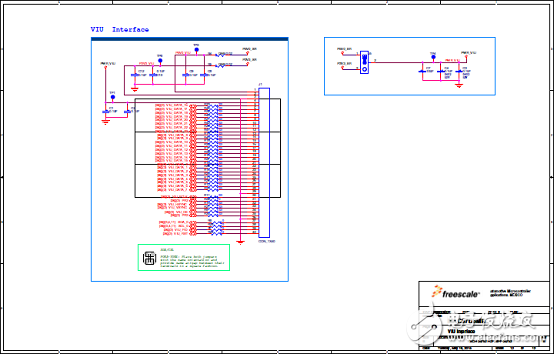

The NXP? MAC57D5-EVB is an evaluation system supporting both NXP MAC57D5xx microprocessors. The complete system consists of an NXP MAC57D5-EVB motherboard that connects to either one of the following adapter cards: MAC57D5-208 (208LQFP), or MAC57D5-516 (516BGA) daughter cards.

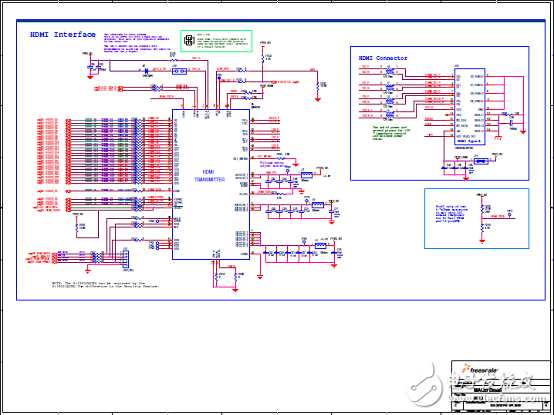

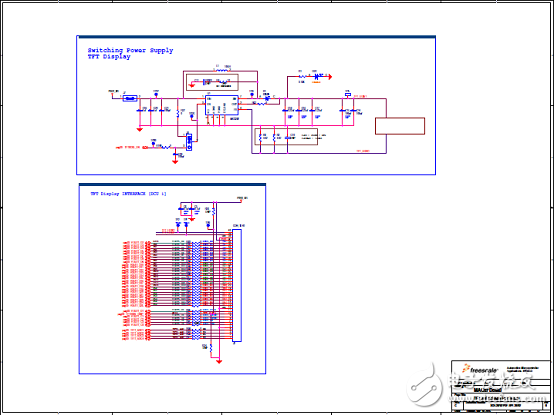

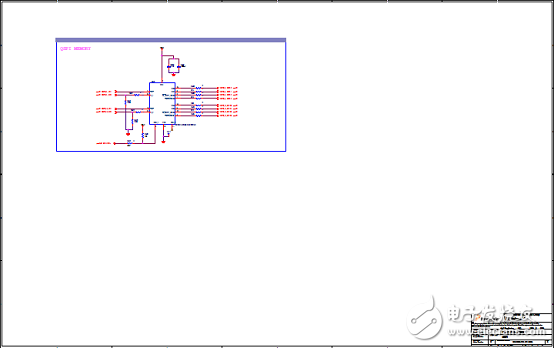

MAC57D5xx系列評估板主要特性:

The MAC57D5MB provides the following key features:

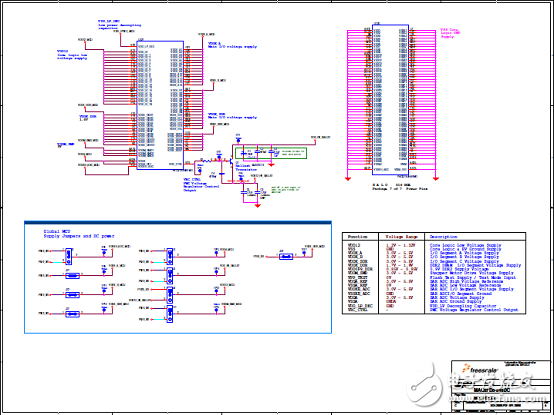

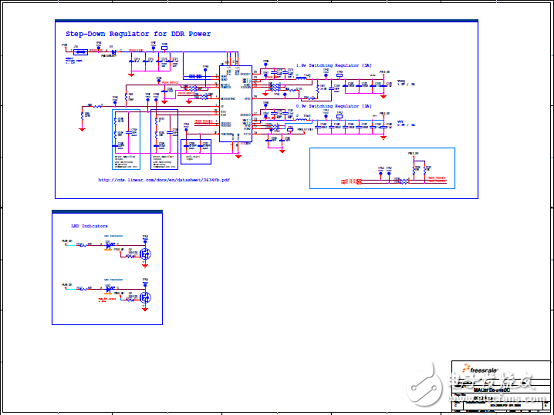

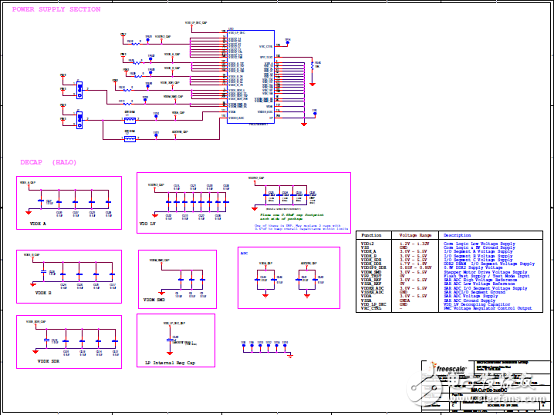

Master Power switch and regulators status LED’s.

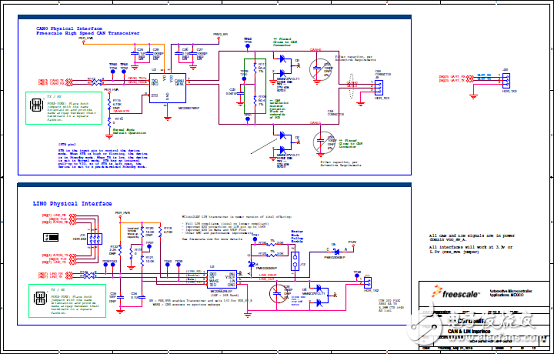

High Speed CAN transceiver

LIN interface

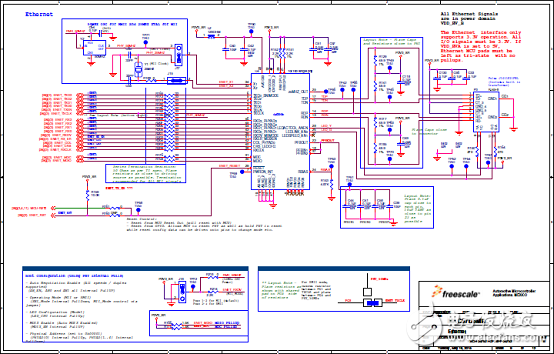

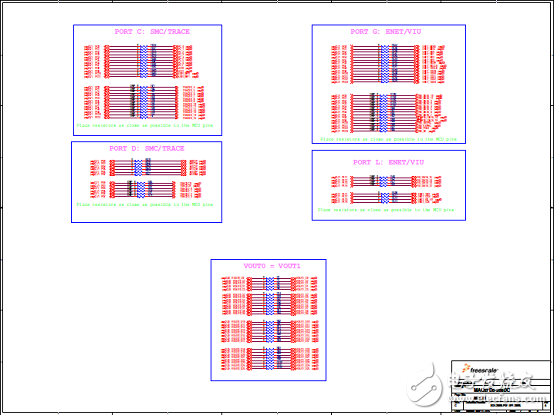

Ethernet PHY and RJ45 socket configurable as RMII or MII

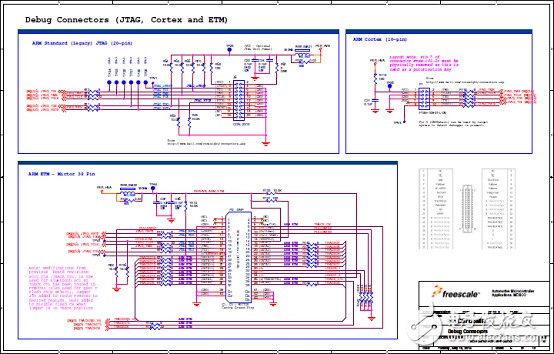

20-pin JTAG

ARM Cortex Connector

ART ETM Connector

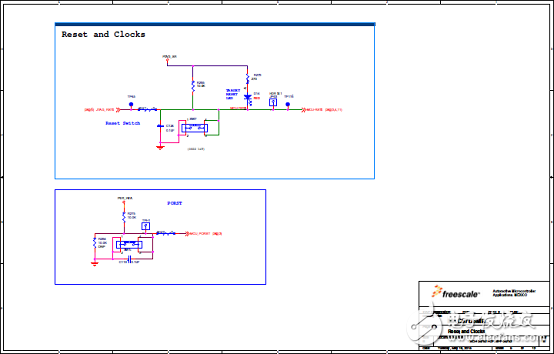

User RESET switch with reset status LED.

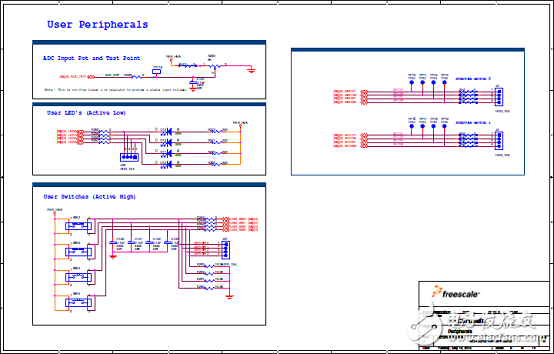

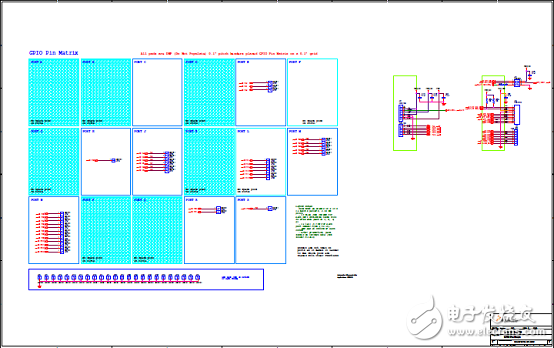

User LED’s

User pushbutton switches
