ECP5-5G及ECP5-5G Versa開發板主要特性

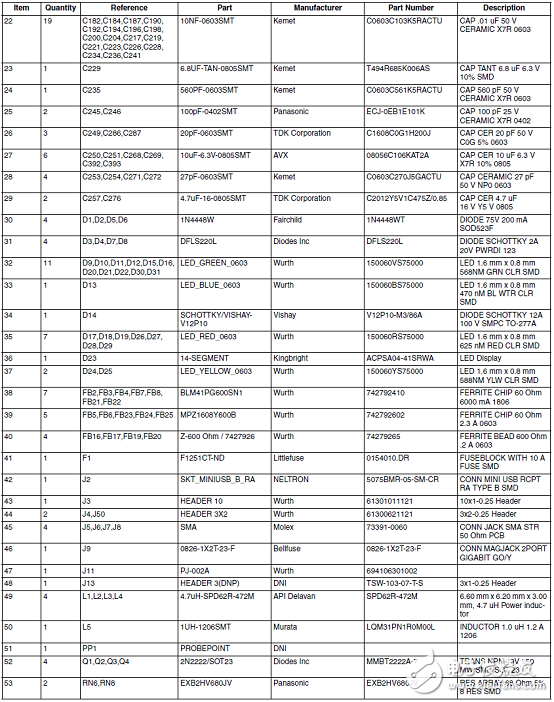

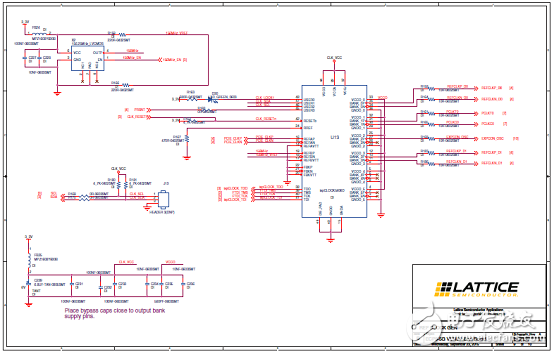

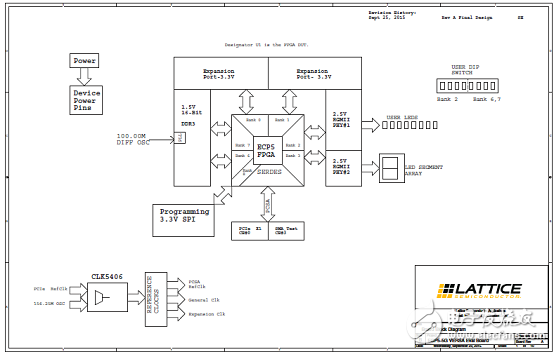

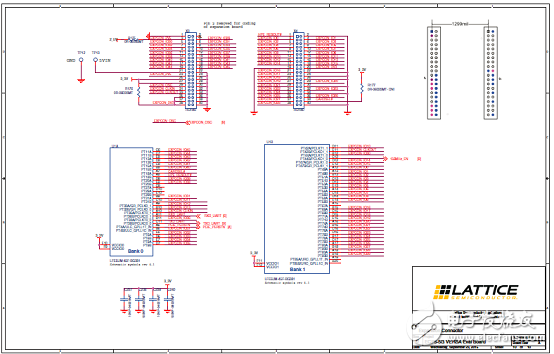

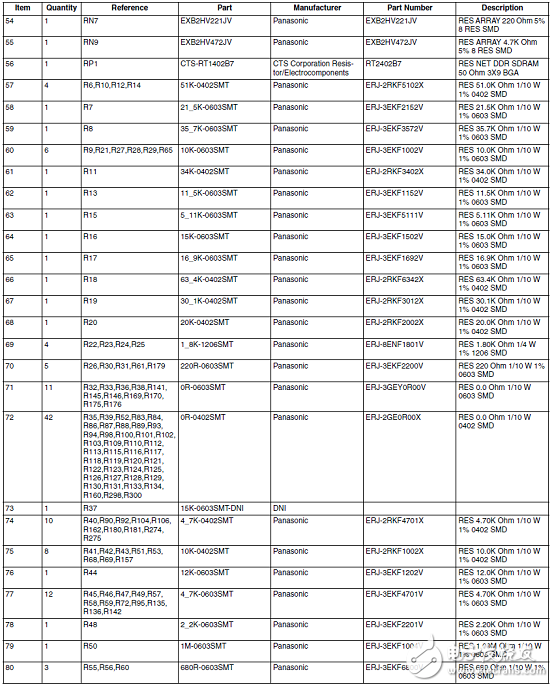

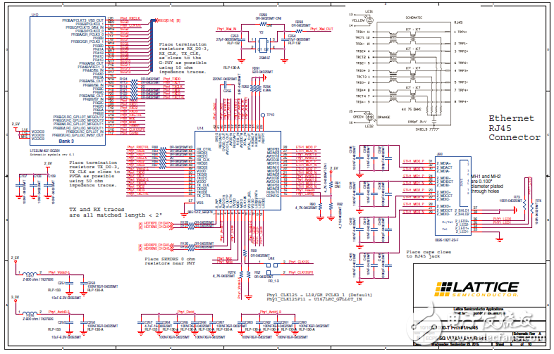

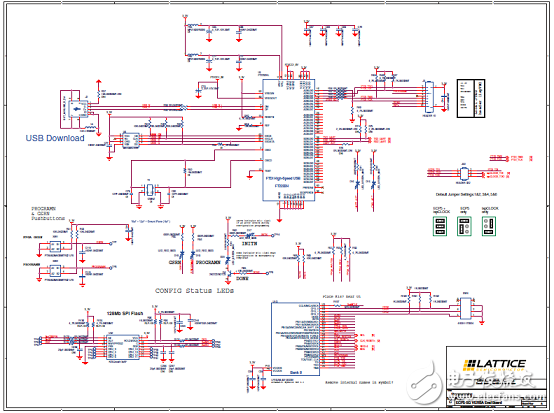

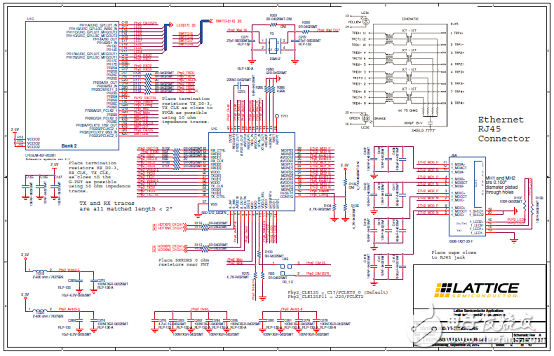

Lattice公司的ECP5-5G系列是低成本低功耗小尺寸的FPGA系列產品,提供高性能特性如增強的DSP架構,高速SERDES和高速源同步接口,以及高達84K邏輯單元的查找表(LUT),支持高達365個用戶I/O,高達156個18 x 18乘法器和各種并行I/O標準,特別適合用在量大高速低成本的應用如汽車娛樂系統,小型無線基站和低功耗工業視頻照相機.本文介紹了ECP5-5G主要特性,框圖和ECP5-5G Versa開發板主要特性,電路圖和材料清單.

The ECP5/ECP5-5G family of FPGA devices is optimized to deliver high performance features such as an enhanced DSP architecture, high speed SERDES and high speed source synchronous interfaces in an economical FPGA fabric. This combination is achieved through advances in device architecture and the use of 40 nm technology making the devices suitable for high-volume, high-speed, low-cost applications.

The ECP5/ECP5-5G device family covers look-up-table (LUT) capacity to 84K logic elements and supports up to 365 user I/Os. The ECP5/ECP5-5G device family also offers up to 156 18 x 18 multipliers and a wide range of parallel I/O standards.

The ECP5/ECP5-5G FPGA fabric is optimized high performance with low power and low cost in mind. The ECP5/ ECP5-5G devices utilize reconfigurable SRAM logic technology and provide popular building blocks such as LUT-based logic, distributed and embedded memory, Phase Locked Loops (PLLs), Delay Locked Loops (DLLs), pre-engineered source synchronous I/O support, enhanced sysDSP slices and advanced configuration support, including encryption and dual-boot capabilities.

The pre-engineered source synchronous logic implemented in the ECP5/ECP5-5G device family supports a broad range of interface standards, including DDR2/3, LPDDR2/3, XGMII and 7:1 LVDS.

The ECP5/ECP5-5G device family also features high speed SERDES with dedicated Physical Coding Sublayer (PCS) functions. High jitter tolerance and low transmit jitter allow the SERDES plus PCS blocks to be configured to support an array of popular data protocols including PCI Express, Ethernet (XAUI, GbE, and SGMII) and CPRI. Transmit De-emphasis with pre- and post-cursors, and Receive Equalization settings make the SERDES suitable for transmission and reception over various forms of media.

The ECP5/ECP5-5G devices also provide flexible, reliable and secure configuration options, such as dual-boot capability, bit-stream encryption, and TransFR field upgrade features.

ECP5-5G family devices have made some enhancement in the SERDES compared to ECP5UM devices. These enhancements increase the performance of the SERDES to up to 5 Gb/s data rate.

The ECP5-5G family devices are pin-to-pin compatible with the ECP5UM devices. These allows a migration path for users to port designs from ECP5UM to ECP5-5G devices to get higher performance.

The Lattice Diamond? design software allows large complex designs to be efficiently implemented using the ECP5/ECP5-5G FPGA family. Synthesis library support for ECP5/ECP5-5G devices is available for popular logic synthesis tools. The Diamond tools use the synthesis tool output along with the constraints from its floor planning tools to place and route the design in the ECP5/ECP5-5G device. The tools extract the timing from the routing and back-annotate it into the design for timing verification.

Lattice provides many pre-engineered IP (Intellectual Property) modules for the ECP5/ECP5-5G family. By using these configurable soft core IPs as standardized blocks, designers are free to concentrate on the unique aspects of their design, increasing their productivity.

ECP5-5G主要特性:

? Higher Logic Density for Increased System Integration

? 12K to 84K LUTs

? 197 to 365 user programmable I/Os

? Embedded SERDES

? 270 Mb/s, up to 3.2 Gb/s,SERDES interface(ECP5)

? 270 Mb/s, up to 5.0 Gb/s,SERDES interface (ECP5-5G)

? Supports eDP in RDR (1.62 Gb/s) and HDR(2.7 Gb/s)

? Up to four channels per device: PCI Express, Ethernet(1GbE,SGMII,XAUI),and CPRI

? sysDSP?

? Fully cascadable slice architecture

? 12 to 160 slices for high performance multiply and accumulate

? Powerful 54-bit ALU operations

? Time Division Multiplexing MAC Sharing

? Rounding and truncation

? Each slice supports ? Half 36 x 36, two 18 x 18 or four 9 x 9 multipliers

? Advanced 18 x 36 MAC and 18 x 18 Multiply-Multiply-Accumulate (MMAC) operations

? Flexible Memory Resources

? Up to 3.744 Mb sysMEM? Embedded Block RAM (EBR)

? 194K to 669K bits distributed RAM

? sysCLOCK Analog PLLs and DLLs

Four DLLs and four PLLs in LFE5-45 and LFE5-85; two DLLs and two PLLs in LFE5-25 and LFE5-12

? Pre-Engineered Source Synchronous I/O

? DDR registers in I/O cells

? Dedicated read/write levelling functionality

? Dedicated gearing logic

? Source synchronous standards support ? ADC/DAC, 7:1 LVDS, XGMII

? High Speed ADC/DAC devices

? Dedicated DDR2/DDR3 and LPDDR2/LPDDR3 memory support with DQS logic, up to 800 Mb/s data-rate

? Programmable sysI/O? Buffer Supports Wide Range of Interfaces

? On-chip termination

? LVTTL and LVCMOS 33/25/18/15/12

? SSTL 18/15 I, II

? HSUL12

? LVDS, Bus-LVDS, LVPECL, RSDS, MLVDS

?subLVDS and SLVS, MIPI D-PHY input interfaces

? Flexible Device Configuration

? Shared bank for configuration I/Os

? SPI boot flash interface

? Dual-boot images supported

? Slave SPI

? TransFR? I/O for simple field updates

? Single Event Upset (SEU) Mitigation Support

? Soft Error Detect – Embedded hard macro

? Soft Error Correction – Without stopping user operation

? Soft Error Injection – Emulate SEU event to debug system error handling

? System Level Support

? IEEE 1149.1 and IEEE 1532 compliant

? Reveal Logic Analyzer

? On-chip oscillator for initialization and general use

? 1.1 V core power supply

ECP5-5G及ECP5-5G Versa開發板主要特性

圖1. ECP5-5G簡化框圖: LFE5UM/LFE5UM5G-85

ECP5-5G主要特性:

Up to 3.2 Gbps SERDES rate with ECP5, and up to 5 Gbps with ECP5-5G

Up to 4 channels per device in dual channel blocks for higher granularity

Enhanced DSP blocks provide 2x resource improvement for symmetrical filters

Single event upset (SEU) mitigation support Programmable IO support for LVCMOS 33/25/18/15/12, XGMII, LVTTL, LVDS, Bus-LVDS, 7:1 LVDS, LVPECL and MIPI D-PHY input interfaces

ECP5-5G Versa開發板

The ECP5-5G? Versa Development Board allows designers to investigate and experiment with the features of the ECP5-5G Field-Programmable Gate Array. The features of the ECP5-5G Versa Development Board can assist engineers with rapid prototyping and testing of their specific designs. The ECP5-5G Versa Development Board is part of the ECP5-5G Versa Development Kit. The guide is intended to be referenced in conjunction with demo user guides to demonstrate the ECP5-5G FPGA.
