Schematic

Parts

Part
?Total Qty.
?Description
?Substitutions
?
R1
?1
?500 Ohm 1/4 W Resistor
?
?
R2
?1
?3K 1/4 W Resistor
?
?
R3
?1
?1K 1/4 W Resistor
?
?
R4
?1
?15 Ohm 1/4 W Resistor
?
?
R5
?1
?230 Ohm 1/4 W Resistor
?
?
R6
?1
?15K 1/4 W Resistor
?
?
R7
?1
?0.2 Ohm 10 W Resistor
?
?
C1
?1
?0.1uF 25V Ceramic Capacitor
?
?
C2
?1
?1uF 25V Electrolytic Capacitor
?
?
C3
?1
?1000pF 25V Ceramic Capacitor
?
?
D1
?1
?1N457 Diode
?
?
Q1
?1
?2N2905 PNP Transistor
?
?
U1
?1
?LM350 Regulator
?
?
U2
?1
?LM301A Op Amp
?
?
S1
?1
?Normally Open Push Button Switch
?
?
MISC
?1
?Wire, Board, Heatsink For U1, Case, Binding Posts or Alligator Clips For Output
?
Notes
1. The circuit was meant to be powered by a power supply, which is why there is no transformer, rectifier, or filter capacitors on the schematic. There is no reason why you cannot add these.

2. A heatsink will be needed for U1.

3. To use the circuit, hook it up to a power supply/plug it in. Then, connect the battery to be charged to the output terminals. All you have to do now is push S1 (the "Start" switch), and wait for the circuit to finish.

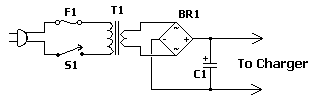

4. If you want to use the charger without having to provide an external power supply, use the following circuit.

Part
?Total Qty.
?Description
?Substitutions
?
C1
?1
?6800uF 25V Electrolytic Capcitor
?
?
T1
?1
?3A 15V Transformer
?
BR1
?1
?5A 50V Bridge Rectifier
?10A 50V Bridge Rectifier
?
S1
?1
?5A SPST Switch
?
F1
?1
?4A 250V Fuse
