1. GTX IP核的創建

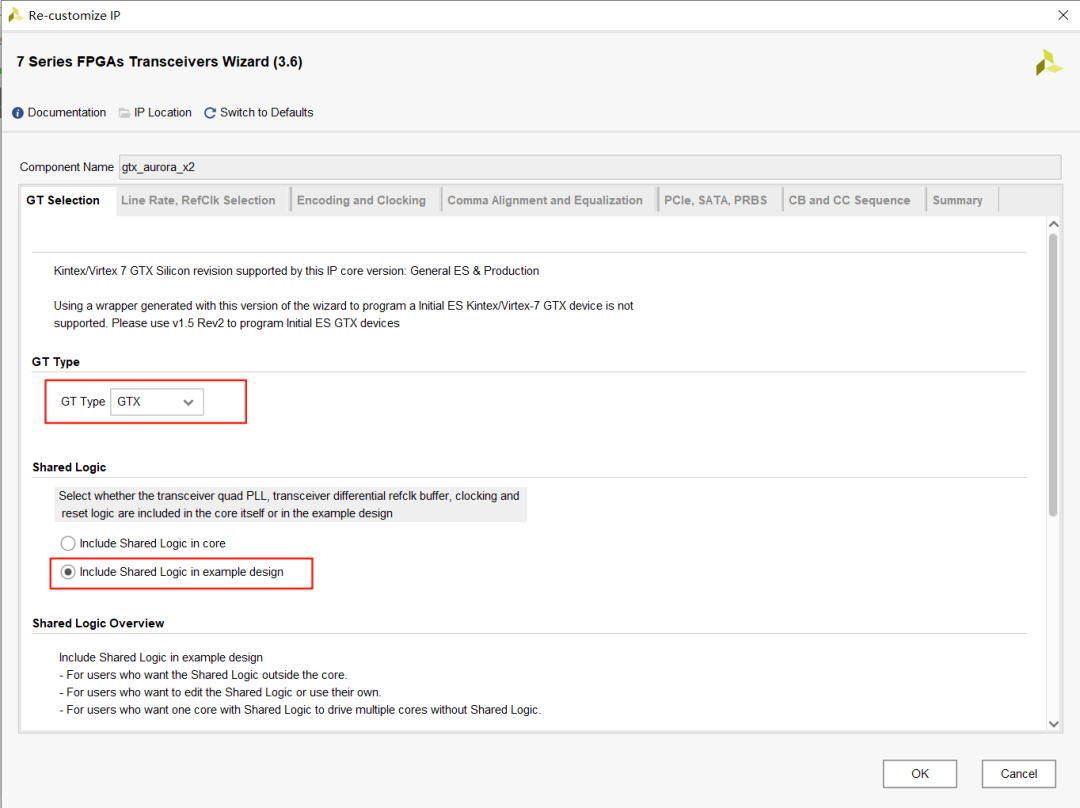

此選項根據你所用的FPGA型號確定GT類型，我所用的是7k325t系列，故GT類型為GTX

接下來，開始配置IP

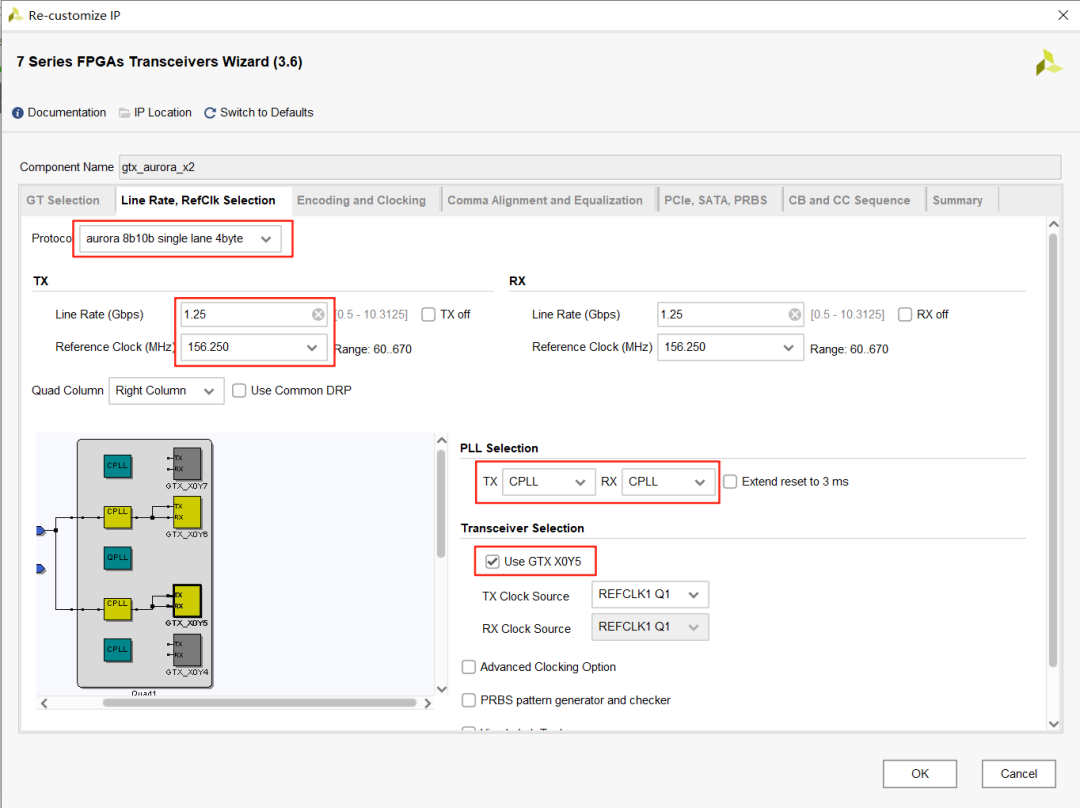

首先，這里的時鐘頻率是連接FPGA高速bank上的差分時鐘，根據自己項目實際需求進行配置即可

再者，強調一下，因為我的項目中對應的是光纖收發，線速率根據實際光口的不同進行適配選擇即可！

還有，估計有和我當時一樣的初學者看本篇文章，所以我就本著我當時初學時復雜且全是問號？的心情補充一下。開始廢話（高手跳過）：我這里是兩個高速收發器，亦就是兩路光纖收發，怎么來的呢，當然是選的，怎么選的呢，好問題，用你的鼠標選中左側灰色的收發器框圖，然后點擊選擇我用小紅框標記的選項“Use GTX X0Y6”，然后框圖從灰色變成黃色了，這個時候神奇的事情就發生了，艾~突然就又增加了一個，聰明的你就以此類推了，哈哈哈哈，這個框圖你得對照你項目中實際原理圖看仔細，你用的高速收發器是在哪個FPGAbank上的哪個坐標就行，不過也沒關系，就算這里你選錯了，到時候你約束引腳約束對了就可以了，不影響的。

好了，接著選

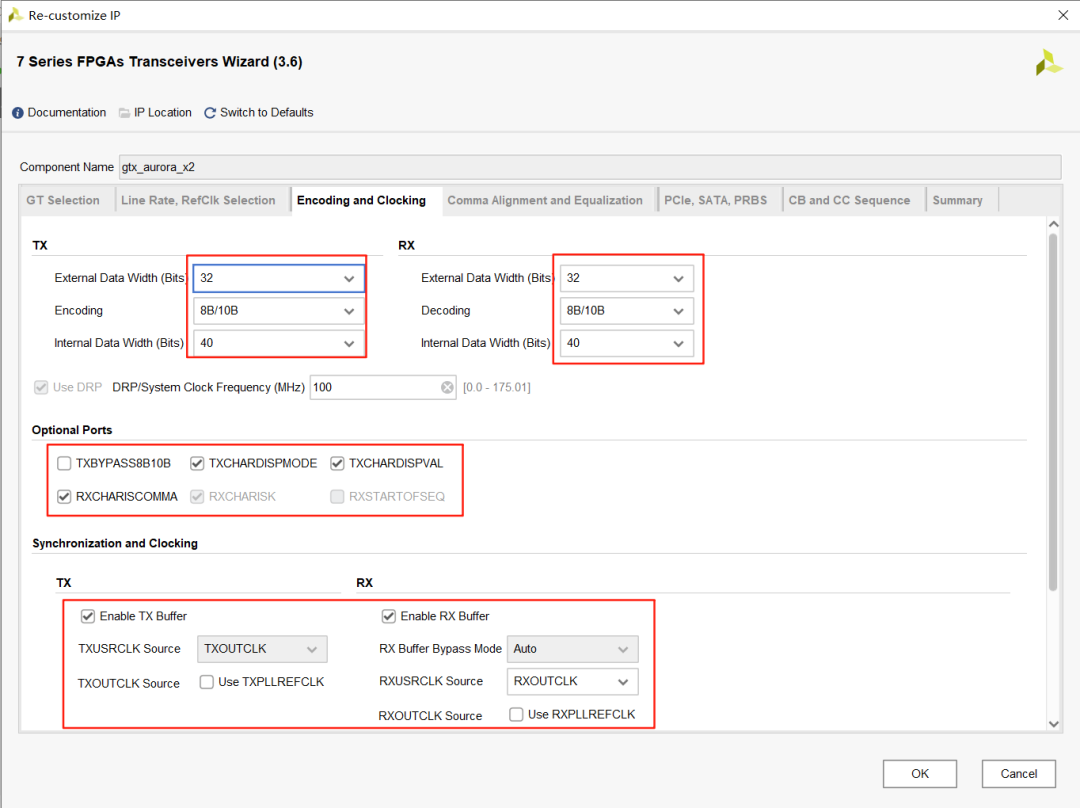

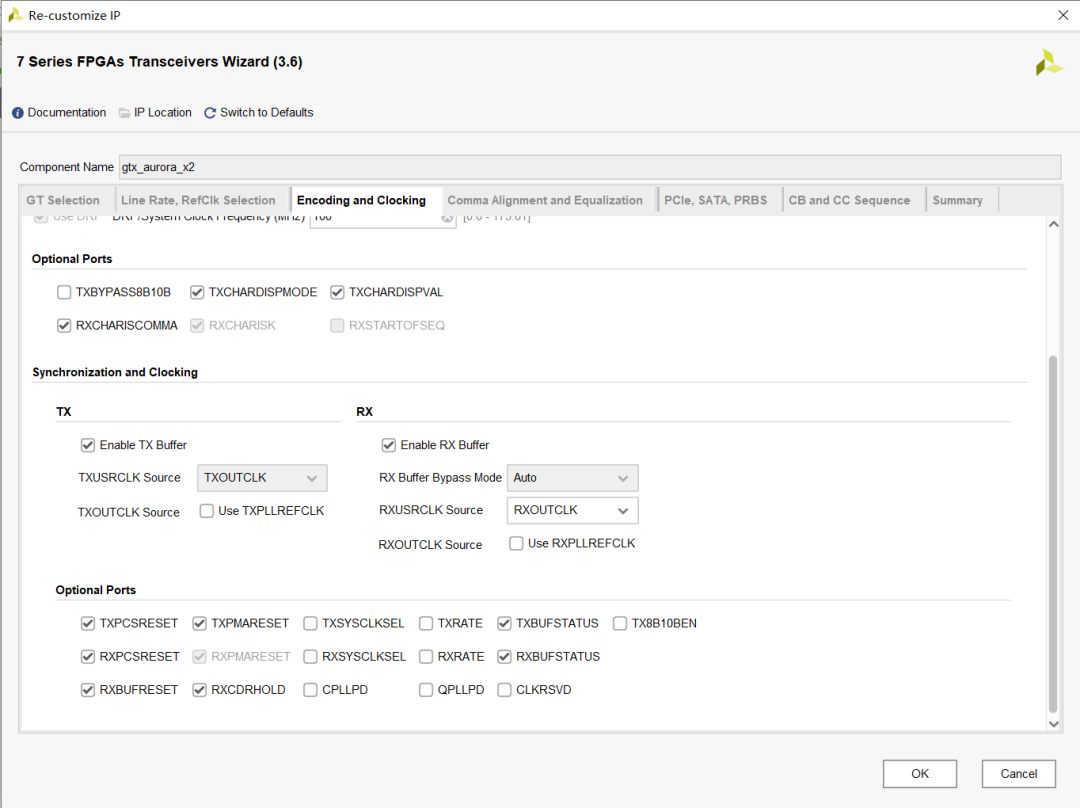

這里就開始配置收發器了，外部數據寬度，也就是咱們邏輯里面最終要用到的數據位寬，這里我用的是32位，根據你項目需求用就行了，就算其他位寬的，你用異步fifo轉不就行了，這能難倒咱們邏輯工程師嗎？開玩笑呢！好，編碼一般8B/10B，內部數據位寬就得注意了，這個地方還與最終咱們使用的userclk有關，在ug476手冊里面第100頁有具體講解（廣子：上xianyu搜麻醬就燒餅，獲取xilinx全系列文檔手冊），可以自己查查，我就簡單贅述兩句: TXUSRCLK Rate=Line Rate/Internal Datapath Width,如果這里你的內部位寬是20的時候，你最終的TXUSERCLK2=TXUSERCLK/2，具體細節深耕數據手冊！

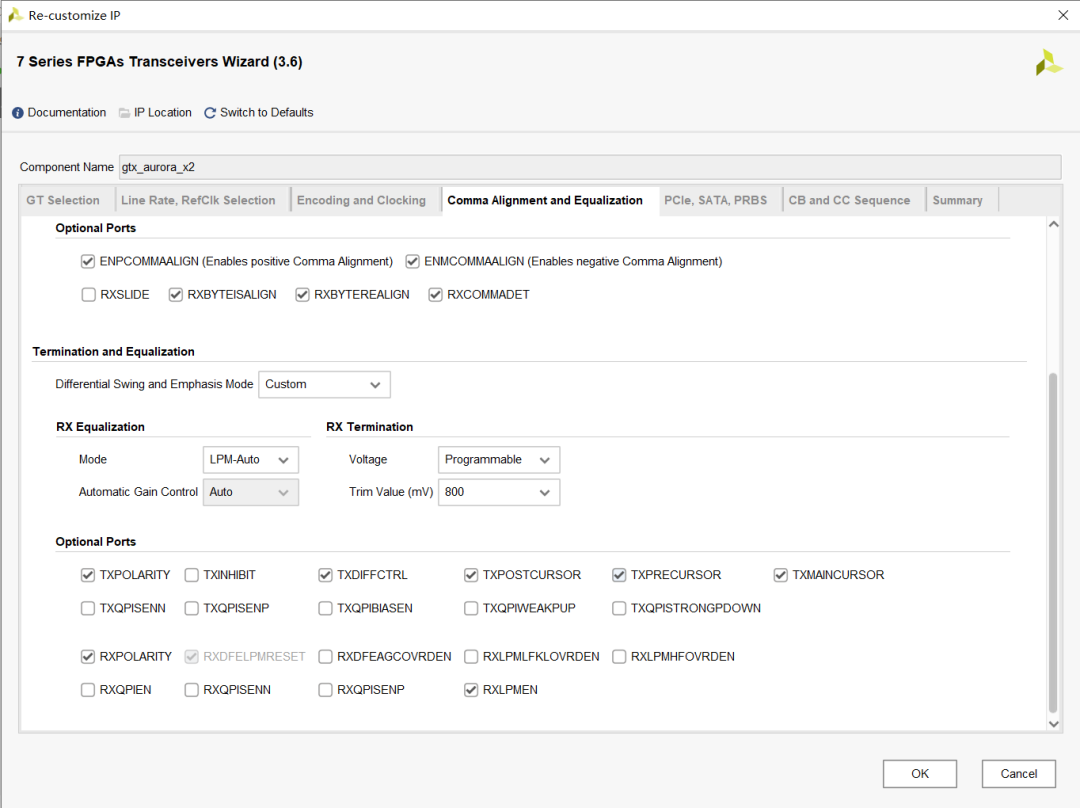

然后就是本頁其他配置都是默認的，不用管（如果有特殊需求除外）

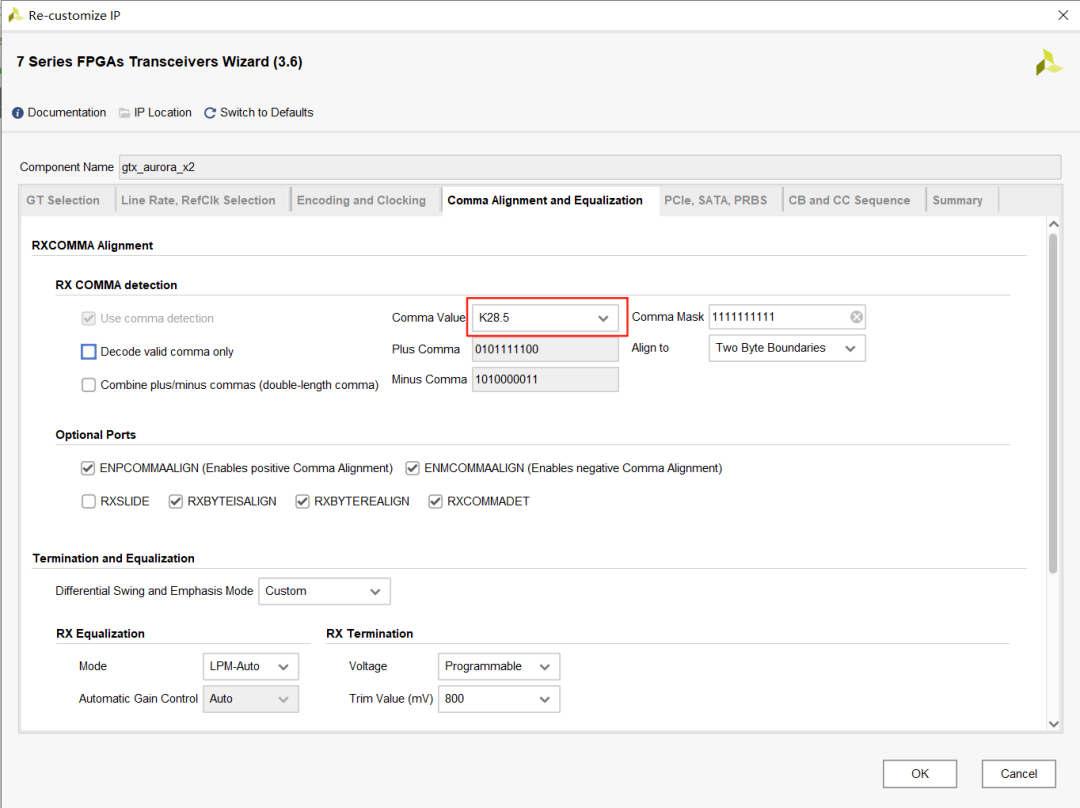

接著選，Comma Value我用的K28.5（BC碼），具體看我源碼中如何使用，其他配置默認！

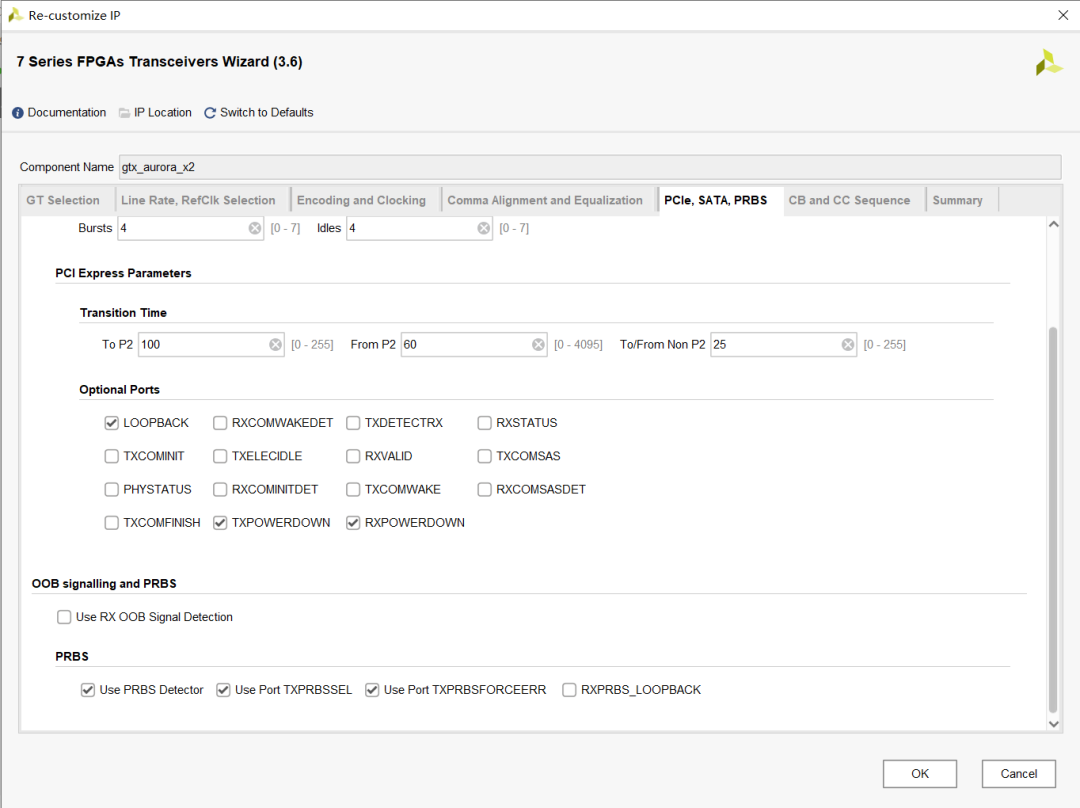

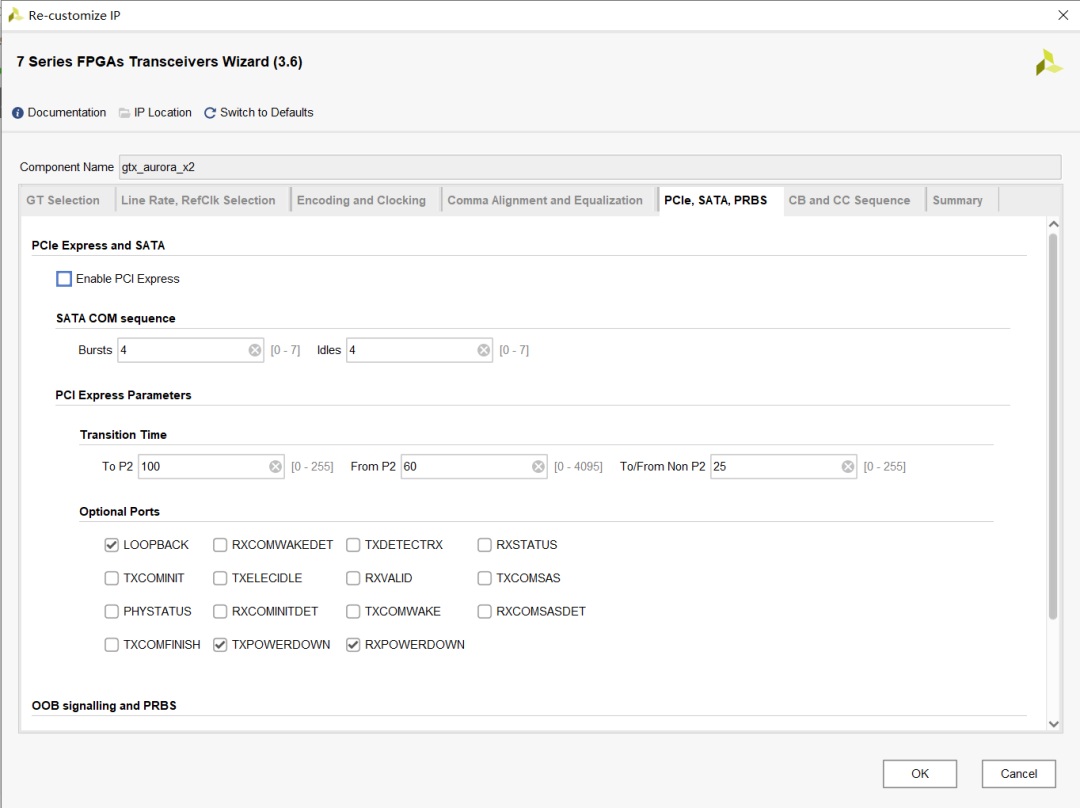

接著來，不用管，繼續默認

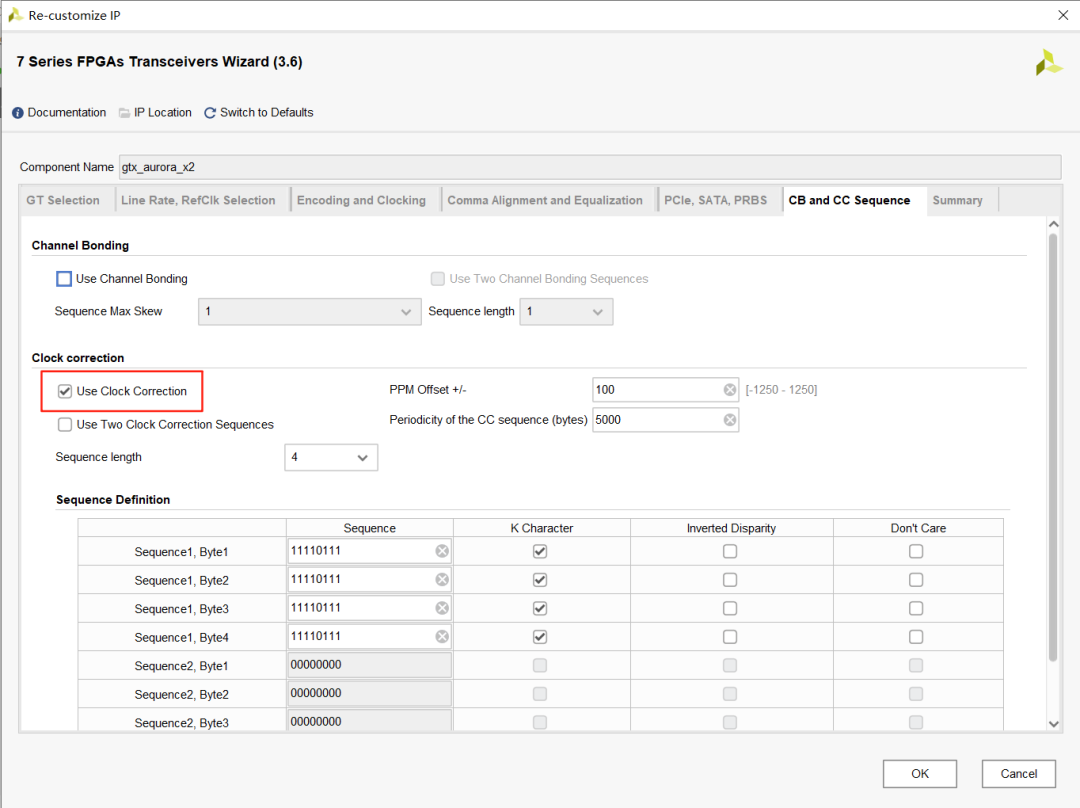

繼續來，勾選USE CLOCK CORRECTION，其余默認

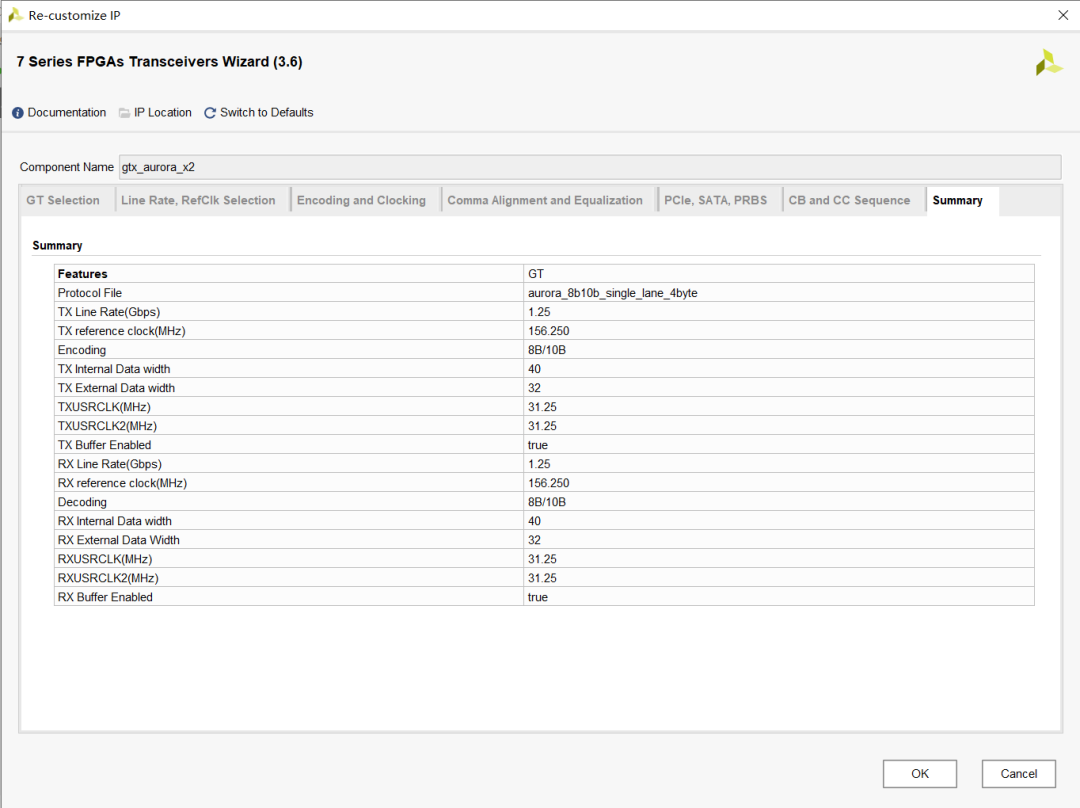

最后檢查所配置結束的IP參數，強調：最后我們在邏輯里面發送用的時鐘域是TXUSRCLK2，以此類推，接收用RXUSRCLK2！??！

2. 搭建工程且編碼

好了，咱們開始爆改啊啊啊啊啊啊??！

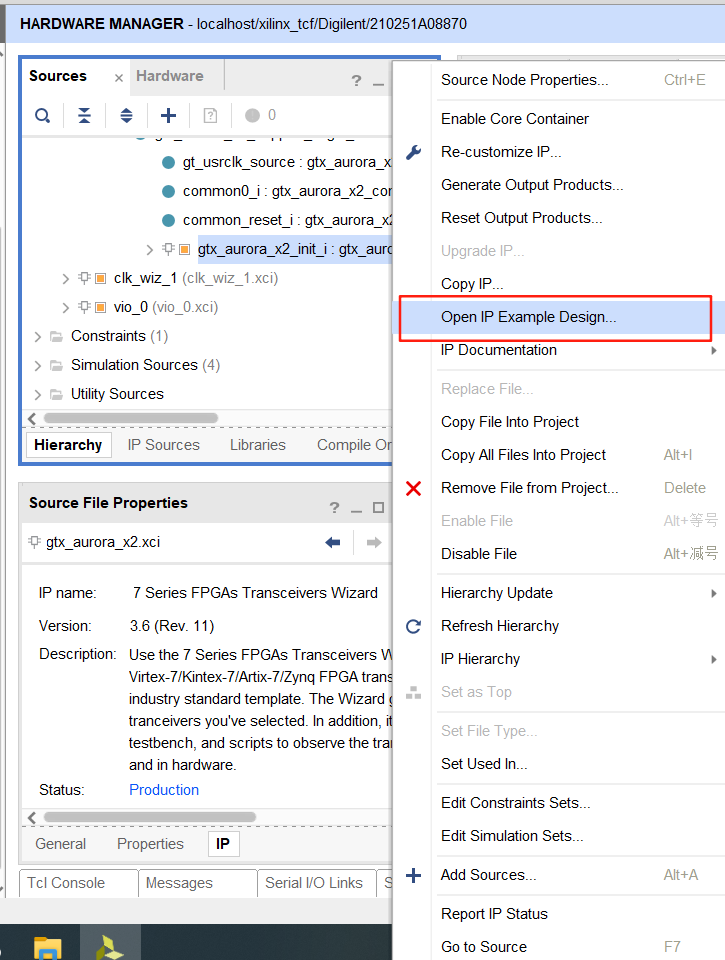

生成例程，完了只需修改例程頂層模塊gtx_aurora_x2_exdes.v文件即可

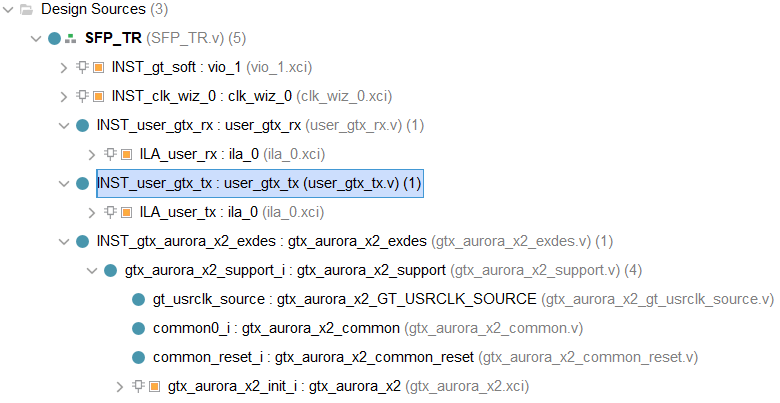

工程結構：

我在編碼模塊中用到了狀態機，而在解碼模塊中沒有用到，原則是：怎么簡明怎么來

頂層：

描述：頂層當中的sys_on_sim在實際使用時換成sys_on即可！

`timescale 1ns / 1ps////////////////////////////////////////////////////////////////////////////////////Company: //Engineer: FPGA NXH////Create Date: 2025/06/09 10:56:46//Design Name: //Module Name: SFP_TR//Project Name: //Target Devices: //Tool Versions: //Description: ////Dependencies: ////Revision://Revision 0.01 - File Created//Additional Comments:////////////////////////////////////////////////////////////////////////////////////module SFP_TR(   input          CLK_i,   input          SFP_CLK_IN_P,   input          SFP_CLK_IN_N,   input  [1:0]      SFP_2X_IN_P,   input  [1:0]      SFP_2X_IN_N,   output [1:0]      SFP_2X_OUT_P,   output [1:0]      SFP_2X_OUT_N,   output [3:0]      state_led );  //---------------clkand reset-----------------  wire          sys_clk;   wire          sys_rstn;  //---------------userrx-----------------------  wire          user_rx0_clk;   wire  [31:0]     user_rx0_data;   wire  [3:0]      user_rx0_kdata;   wire          user_rx0_link;   wire          user_rx1_clk;   wire  [31:0]     user_rx1_data;   wire  [3:0]      user_rx1_kdata;   wire          user_rx1_link;   wire  [31:0]     rX0_data;   wire          rX0_data_vld;   wire  [31:0]     rX1_data;   wire          rX1_data_vld;  //---------------usertx-----------------------  wire          user_tx0_clk;   wire  [31:0]     tx0_data;   wire  [3:0]      tx0_kdata;   wire          user_tx0_link;   wire          user_tx1_clk;   wire  [31:0]     tx1_data;   wire  [3:0]      tx1_kdata;   wire          user_tx1_link;  //---------------vio-------------------------------  wire          sys_on_sim;   wire          soft_vld;   wire          soft_rst_tx_vio;   wire          soft_rst_rx_vio;   wire  [2:0]      gt_loopback_vio;   wire          soft_rst_tx_vio_r;   wire          soft_rst_rx_vio_r;   wire  [2:0]      gt_loopback_vio_r;     vio_1 INST_gt_soft(     .clk        (sys_clk      ),        //input wire clk    .probe_out0(soft_vld      ), //output wire [0 : 0] probe_out0    .probe_out1(soft_rst_tx_vio_r ), //output wire [0 : 0] probe_out1    .probe_out2(soft_rst_rx_vio_r ), //output wire [0 : 0] probe_out2    .probe_out3(gt_loopback_vio_r ), //output wire [2 : 0] probe_out3    .probe_out4(sys_on_sim     )//output wire [0 : 0] probe_out4   );   assign soft_rst_tx_vio = soft_vld ? soft_rst_tx_vio_r : 'h0;   assign soft_rst_rx_vio = soft_vld ? soft_rst_rx_vio_r : 'h0;   assign gt_loopback_vio = soft_vld ? gt_loopback_vio_r : 'h0;  //-------------------sys_on-----------------------------  wire          sys_on;   reg  [4:0]      user_tx0_link_r='h0;   reg  [4:0]      user_tx1_link_r='h0;   always @(posedge user_tx0_clk)user_tx0_link_r <= {user_tx0_link_r[3:0], user_tx0_link}; ? ? always @?(posedge user_tx1_clk)?user_tx1_link_r <= {user_tx1_link_r[3:0], user_tx1_link}; ? ? ?assign ?sys_on =?(user_tx0_link_r[4] && user_tx1_link_r[4])?? 'h1 : 'h0; ? ?//-------------------CLK--------------------------------? ? ?clk_wiz_0 INST_clk_wiz_0( ? ? ? ? // Clock out ports ? ? ? ? .clk_out1 ? ? ? ? ? ? ? ? ? ? ? (sys_clk), ? ??//?output clk_out1 ? ? ? ?//?Status and control signals ? ? ? ?.reset(1'b0), ? ? ? ?//?input reset ? ? ? ?.locked(sys_rstn), ? ?//?output locked ? ? ? ?//?Clock in ports ? ? ? ? ? ? ? ? ? ?.clk_in1(CLK_i)//?input clk_in1 ? ? ); ? ? ?//-----------------USER?RX------------------------------? ? ?user_gtx_rx?#( ? ? ? ? .DATA_WIDTH ? ?(32), ? ? ? ?.KCHAR_WIDTH(4)? ? ?) ? ? ?INST_user_gtx_rx?( ? ? ? ? .clk ? ? ? ? ? ? ? ? ? ? ? ? ? ?(sys_clk), ? ? ? ?.rstn(sys_rstn), ? ? ? ?.rx0_clk(user_rx0_clk), ? ? ? ?.rx0_link(user_rx0_link), ? ? ? ?.rx0_data(user_rx0_data), ? ? ? ?.rx0_kdata(user_rx0_kdata), ? ? ? ?.rx1_clk(user_rx1_clk), ? ? ? ?.rx1_link(user_rx1_link), ? ? ? ?.rx1_data(user_rx1_data), ? ? ? ?.rx1_kdata(user_rx1_kdata), ? ? ? ?.user_rx0_data(rx0_data), ? ? ? ?.user_rx0_data_vld(rx0_data_vld), ? ? ? ?.user_rx1_data(rx1_data), ? ? ? ?.user_rx1_data_vld(rx1_data_vld)? ? ?); ? ?//-----------------USER?TX------------------------------? ? ?user_gtx_tx?#( ? ? ? ? .DATA_WIDTH ? ?(32), ? ? ? ?.KCHAR_WIDTH(4)? ? ?) ? ? INST_user_gtx_tx( ? ? ? ? .clk ? ? ? ? ? ? ? ? ? ? ? ? ? ?(sys_clk), ? ? ? ?.rstn(sys_rstn), ? ? ? ?.sys_on(sys_on_sim), ? ? ? ?.tx0_clk(user_tx0_clk), ? ? ? ?.tx0_link(user_tx0_link), ? ? ? ?.tx0_data(tx0_data), ? ? ? ?.tx0_kdata(tx0_kdata), ? ? ? ?.tx1_clk(user_tx1_clk), ? ? ? ?.tx1_link(user_tx1_link), ? ? ? ?.tx1_data(tx1_data), ? ? ? ?.tx1_kdata(tx1_kdata)? ? ?); ? ?//-----------------GTX-----------------------------------? ? ?gtx_aurora_x2_exdes INST_gtx_aurora_x2_exdes( ? ? ? ? .Q1_CLK1_GTREFCLK_PAD_N_IN ? ? ?(SFP_CLK_IN_N), ? ? ? ?.Q1_CLK1_GTREFCLK_PAD_P_IN(SFP_CLK_IN_P), ? ? ? ?.DRP_CLK_IN(sys_clk), ? ? ? ?.RXN_IN(SFP_2X_IN_N), ? ? ? ?.RXP_IN(SFP_2X_IN_P), ? ? ? ?.TXN_OUT(SFP_2X_OUT_N), ? ? ? ?.TXP_OUT(SFP_2X_OUT_P), ? ? ? ?//-------------user?interface-------------------------.soft_rst_tx(soft_rst_tx_vio), ? ? ? ?.soft_rst_rx(soft_rst_rx_vio), ? ? ? ?.gt_loopback(gt_loopback_vio_r), ? ? ? ?.user_rx0_clk(user_rx0_clk), ? ? ? ?.user_rx0_data(user_rx0_data), ? ? ? ?.user_rx0_kdata(user_rx0_kdata), ? ? ? ?.user_rx0_link(user_rx0_link), ? ? ? ?.user_rx1_clk(user_rx1_clk), ? ? ? ?.user_rx1_data(user_rx1_data), ? ? ? ?.user_rx1_kdata(user_rx1_kdata), ? ? ? ?.user_rx1_link(user_rx1_link), ? ? ? ?.user_tx0_clk(user_tx0_clk), ? ? ? ?.user_tx0_data(tx0_data), ? ? ? ?.user_tx0_kdata(tx0_kdata), ? ? ? ?.user_tx0_link(user_tx0_link), ? ? ? ?.user_tx1_clk(user_tx1_clk), ? ? ? ?.user_tx1_data(tx1_data), ? ? ? ?.user_tx1_kdata(tx1_kdata), ? ? ? ?.user_tx1_link(user_tx1_link)? ? ?); ? ?//-----------------PORT-----------------------------------? ? ?assign ?state_led = {user_tx0_link, user_tx1_link, user_rx0_link, user_rx1_link}; ? ?//-----------------DEBUG-----------------------------------endmodule

打包編碼：

編碼選用8b/10b，comma值用k28.5（BC碼），有同學就好奇，k28.5為啥就是BC碼，好吧，我當時也不懂艾，好在去取經了，現在就給你道來：0XBC=0B1011 1100，好，重點來了，0D28=0B11100,0D5=0B101,聰明的你已經發現了，BC=5和28相結合，K28.5分別把28和5換成二進制，然后放一起，再重新組合，低三位101放前面，高五位放后面，那不就成8‘b10111100即8’hBC了嗎，以此類推，其他的k碼怎么算你就知道了。關于k碼換算，你得去看文章，我這里只是讓你簡單了解一下，別迷糊了，BC是怎么來的不知道！??！

我的編碼順序：

1.等待有效數據的到來，這個過程一直向鏈路發送空閑碼，訓練鏈路

2.等有效數據來了發送幀頭，進行編碼

3.開始發送有效數據（此項目我發送的是順序數據，但是我在代碼中預留了關鍵握手信號vld和rdy，有需要的同學后期自己在我的代碼上面改就行了）

4.有效數據發送完成，進行編碼

5.發送幀尾進行編碼

6.接著發送空閑碼進行編碼

`timescale1ns / 1ps//////////////////////////////////////////////////////////////////////////////////// Company:// Engineer: FPGA NXH//// Create Date: 2025/06/09 1110// Design Name:// Module Name: user_gtx_tx// Project Name:// Target Devices:// Tool Versions:// Description://// Dependencies://// Revision:// Revision 0.01 - File Created// Additional Comments:////////////////////////////////////////////////////////////////////////////////////moduleuser_gtx_tx#   (  parameter DATA_WIDTH  =32,  parameter KCHAR_WIDTH  =4  ) (  input               clk,  input               rstn,  input               sys_on,  input               tx0_clk,  input               tx0_link,  output [DATA_WIDTH-1:0]      tx0_data,  output [KCHAR_WIDTH-1:0]      tx0_kdata,  input               tx1_clk,  input               tx1_link,  output [DATA_WIDTH-1:0]      tx1_data,  output [KCHAR_WIDTH-1:0]      tx1_kdata );  //------------parameter------------------------------localparamK_CHAR_VLD  =4'h0001;  localparamK_CHAR_NVLD =4'h0000;  localparamFRAM_IDLE  =32'h55_AA_00_BC;//空閑碼localparamFRAM_SOF   =32'h55_AA_FF_BC;//幀頭localparamFRAM_COM   =32'h55_AA_DD_BC;//有效數據發送完畢localparamFRAM_EOF   =32'h55_AA_EE_BC;//幀尾//------------register-------------------------------reg  [DATA_WIDTH-1:0]      cnt_data;  reg  [DATA_WIDTH-1:0]      cnt_data_r=16'h0;  reg                cnt_data_vld;  //-----------------預留------------------------------wire                rx_data_rdy;  reg                tx0_data_r_vld;  //---------------------------------------------------reg  [DATA_WIDTH-1:0]      tx0_data_r;  reg  [DATA_WIDTH-1:0]      tx1_data_r;  reg  [KCHAR_WIDTH-1:0]      tx0_kdata_r;  reg  [KCHAR_WIDTH-1:0]      tx1_kdata_r;  reg  [3:0]            tx0_link_r;  reg  [3:0]            tx1_link_r;    //------------status----------------------------------reg  [3:0]            state_cur;  reg  [3:0]            state_next;  //------------------link_r-----------------------------always@ (posedgetx0_clk) tx0_link_r <= {tx0_link_r[2:0], tx0_link}; ? ?always?@ (posedge?tx1_clk) tx1_link_r <= {tx1_link_r[2:0], tx1_link}; ? ?//---------------------預留-----------------------------assign? rx_data_rdy = (state_cur ==?'h1|| state_cur ==?'h2) ??1'h1?:?1'h0; ? ?//------------------------------------------------------always?@ (posedge?tx0_clk)?beginif?(!tx0_link_r[3])?begin? ? ? ? ? ? ?cnt_data ? ? ? ?<=?'h0; ? ? ? ? ? ? cnt_data_vld ? ?<=?'h0; ? ? ? ?endelseif?((state_cur ==?'h1|| state_cur ==?'h2) && state_next !=?'h3?&& cnt_data <=?32'h0000_00FF)?begin? ? ? ? ? ? ?cnt_data ? ? ? ?<= cnt_data +?'h1; ? ? ? ? ? ? cnt_data_vld ? ?<=?'h1; ? ? ? ?endelsebegin? ? ? ? ? ? ?cnt_data ? ? ? ?<=?'h0; ? ? ? ? ? ? cnt_data_vld ? ?<=?'h0; ? ? ? ?endendalways?@ (posedge?tx0_clk) cnt_data_r <= cnt_data; ? ?//------------------status------------------------------always?@ (posedge?tx0_clk)?beginif?(!tx0_link_r[3]) ? ? ? ? ? ? state_cur <=?'h0; ? ? ? ? ?else? ? ? ? ? ? ?state_cur <= state_next; ? ? ?endalways?@ (*)?begin? ? ? ? ?state_next = state_cur; ? ? ? ?case?(state_cur) ? ? ? ? ?'h0?: ??beginif?(sys_on) ? ? ? ? ? ? ? ?if?(tx0_link_r[3]) ? ? ? ? ? ? ? ? ? ? state_next =?'h1; ? ? ? ? ? ? ? ?else? ? ? ? ? ? ? ? ? ? ?state_next =?'h0; ? ? ? ? ? ?else? ? ? ? ? ? ? ? ? state_next =?'h0; ? ? ? ?end'h1?: ? state_next =?'h2; ? ? ? ?'h2?: ??beginif?(cnt_data_vld)?begin? ? ? ? ? ? ? ? ?state_next =?'h2; ? ? ? ? ? ?endelsebegin? ? ? ? ? ? ? ? ?state_next =?'h3; ? ? ? ? ? ?endend'h3?: ? state_next =?'h4; ? ? ? ?'h4?: ? state_next =?'h0; ? ? ? ?default?: ? state_next =?'h4; ? ? ? ?endcaseendalways?@ (posedge?tx0_clk)?beginif?(!tx0_link_r[3])?begin? ? ? ? ? ? ?tx0_data_r ?<=?'h0; ? ? ? ? ? ? tx0_kdata_r <=?'h0; ? ? ? ?endelsebegincase?(state_cur) ? ? ? ? ? ? ? ?'h0?: ??begin? ? ? ? ? ? ? ? ? ? ?tx0_data_r ?<= FRAM_IDLE; ? ? ? ? ??//發送空閑碼? ? ? ? ? ? ? ? ? ? ?tx0_kdata_r <=?4'b0001; ? ? ? ? ? ? ? ? ?end'h1?: ??begin? ? ? ? ? ? ? ? ? ? ? ? tx0_data_r ?<= FRAM_SOF; ? ? ? ? ? ?//發送幀頭? ? ? ? ? ? ? ? ? ? ?tx0_kdata_r <= K_CHAR_VLD; ? ? ? ? ? ? ? ? ?end'h2?: ??beginif?(cnt_data_vld)?begin//發送有效數據包? ? ? ? ? ? ? ? ? ? ? ? ?tx0_data_r ?<= cnt_data_r; ? ? ? ? ? ? ? ? ? ? ? ? tx0_kdata_r <= K_CHAR_NVLD; ? ? ? ? ? ? ? ? ? ?endelsebegin? ? ? ? ? ? ? ? ? ? ? ? ?tx0_data_r ?<= FRAM_COM; ? ? ? ?//有效數據包發送完畢? ? ? ? ? ? ? ? ? ? ? ? ?tx0_kdata_r <= K_CHAR_VLD; ? ? ? ? ? ? ? ? ? ?endend'h3?: ??begin? ? ? ? ? ? ? ? ? ? ?tx0_data_r ?<= FRAM_EOF; ? ? ? ? ? ?//發送幀尾? ? ? ? ? ? ? ? ? ? ?tx0_kdata_r <= K_CHAR_VLD; ? ? ? ? ? ? ? ?end'h4?: ??begin//發送空閑碼? ? ? ? ? ? ? ? ? ? ?tx0_data_r ?<= FRAM_IDLE; ? ? ? ? ? ? ? ? ? ? tx0_kdata_r <= K_CHAR_VLD; ? ? ? ? ? ? ? ?enddefault?: ? ; ? ? ? ? ? ?endcaseendend//------------------預留-------------------------------always?@ (posedge?tx0_clk)?beginif?(!tx0_link_r[3]) ? ? ? ? ? ? tx0_data_r_vld <=?'h0; ? ? ? ?elseif?(state_cur ==?'h2?&& cnt_data_vld)?//這個地方的cnt_data_vld最后可以換成實際的data_vld即可? ? ? ? ? ? ?tx0_data_r_vld <=?'h1; ? ? ? ?else? ? ? ? ? ? ?tx0_data_r_vld <=?'h0; ? ?end//------------------output port------------------------assign? tx0_data ? ?= tx0_data_r; ? ?assign? tx0_kdata ? = tx0_kdata_r; ? ?assign? tx1_data ? ?= tx1_link_r[3] ? tx0_data_r :?'h0; ? ?assign? tx1_kdata ? = tx1_link_r[3] ? tx0_kdata_r :?'h0; ? ?//----------------------DEBUG-----------------------? ? ?ila_0 ILA_user_tx ( ? ? ? ?.clk? ? ? ? (tx0_clk),?// input wire clk.probe0? ? ?({ ? ? ? ? ? ? ? ? ? ?'h0, ? ? ? ? ? ? ? ? ? ? sys_on, ? ? ? ? ? ? ? ? ? ? sys_on_r, ? ? ? ? ? ? ? ? ? ? cnt_data[31:0], ??//32? ? ? ? ? ? ? ? ? ? ?cnt_data_r, ? ? ? ? ? ? ? ? ? ? cnt_data_vld, ? ? ? ? ? ? ? ? ? ? tx0_data_r_vld, ? ? ? ? ? ? ? ? ? ? state_cur, ?//4? ? ? ? ? ? ? ? ? ? ?state_next,?//4? ? ? ? ? ? ? ? ? ? ?tx0_link_r,?//4? ? ? ? ? ? ? ? ? ? ?tx1_link_r,?//4? ? ? ? ? ? ? ? ? ? ?tx0_data_r,?//32? ? ? ? ? ? ? ? ? ? ?tx0_kdata_r?//32? ? ? ? ? })?// input wire [255:0] probe0? ? ?);endmodule

解包解碼：

心善的我再提示一下：解碼出來的時鐘域最后你得換成你自己的系統時鐘域，不太明白的同學就又問了，怎么換時鐘域啊啊啊啊啊，還能怎么換，異步fifo，用爆F(xiàn)PGA芯片資源，用就行了。此項目我沒轉換紅紅火火恍恍惚惚

解碼思路：

根據自己定制的編碼協議進行解碼

1.先解數據幀頭

2.得到有效數據

`timescale1ns / 1ps//////////////////////////////////////////////////////////////////////////////////// Company:// Engineer: FPGA NXH//// Create Date: 2025/06/09 1147// Design Name:// Module Name: user_gtx_rx// Project Name:// Target Devices:// Tool Versions:// Description://// Dependencies://// Revision:// Revision 0.01 - File Created// Additional Comments:////////////////////////////////////////////////////////////////////////////////////moduleuser_gtx_rx #   (  parameter DATA_WIDTH  =32,  parameter KCHAR_WIDTH  =4  ) (  input           clk,  input           rstn,  input           rx0_clk,  input           rx0_link,  input [DATA_WIDTH-1:0]  rx0_data,  input [KCHAR_WIDTH-1:0]  rx0_kdata,  input           rx1_clk,  input           rx1_link,  input [DATA_WIDTH-1:0]  rx1_data,  input [KCHAR_WIDTH-1:0]  rx1_kdata,  output [DATA_WIDTH-1:0]  user_rx0_data,  output           user_rx0_data_vld,  output [DATA_WIDTH-1:0]  user_rx1_data,  output           user_rx1_data_vld   );  //------------paramerter-----------------------------localparamFRAM_SOF   =32'h55_AA_FF_BC;//幀頭localparamFRAM_EOF   =32'h55_AA_EE_BC;//幀尾//------------register-------------------------------reg  [DATA_WIDTH-1:0]      rx0_data_r =0;  reg  [DATA_WIDTH-1:0]      rx1_data_r =0;  reg  [DATA_WIDTH-1:0]      rx0_data_1r=0;  reg  [DATA_WIDTH-1:0]      rx1_data_1r=0;  reg  [DATA_WIDTH-1:0]      rx0_data_2r=0;  reg  [DATA_WIDTH-1:0]      rx1_data_2r=0;  reg  [KCHAR_WIDTH-1:0]      rx0_kdata_r ='h0;  reg  [KCHAR_WIDTH-1:0]      rx1_kdata_r ='h0;  reg  [KCHAR_WIDTH-1:0]      rx0_kdata_1r='h0;  reg  [KCHAR_WIDTH-1:0]      rx1_kdata_1r='h0;  reg  [KCHAR_WIDTH-1:0]      rx0_kdata_2r='h0;  reg  [KCHAR_WIDTH-1:0]      rx1_kdata_2r='h0;  reg  [3:0]            rx0_link_r;  reg  [3:0]            rx1_link_r;  reg  [DATA_WIDTH-1:0]      user_data;  reg                user_data_vld;  reg                sof_vld;  reg                eof_vld;  reg                frame_vld;  reg  [2:0]            state_cur;  reg  [2:0]            state_next;  //------------------link_r buffer---------------------------always@ (posedgerx0_clk) rx0_link_r <= {rx0_link_r[2:0], rx0_link}; ? ?always?@ (posedge?rx1_clk) rx1_link_r <= {rx1_link_r[2:0], rx1_link}; ? ?//------------------data buffer-----------------------------always?@ (posedge?rx0_clk)?begin? ? ? ? ?rx0_data_r ? <= ?rx0_data; ? ? ? ? rx0_data_1r ?<= ?rx0_data_r; ? ? ? ? rx0_data_2r ?<= ?rx0_data_1r; ? ? ? ? ?rx1_data_r ? <= ?rx1_data; ? ? ? ? rx1_data_1r ?<= ?rx1_data_r; ? ? ? ? rx1_data_2r ?<= ?rx1_data_1r; ? ?endalways?@ (posedge?rx0_clk)?begin? ? ? ? ?rx0_kdata_r ?<= ?rx0_kdata; ? ? ? ? rx0_kdata_1r <= ?rx0_kdata_r; ? ? ? ? rx0_kdata_2r <= ?rx0_kdata_1r; ? ? ? ? ?rx1_kdata_r ?<= ?rx1_kdata; ? ? ? ? rx1_kdata_1r <= ?rx1_kdata_r; ? ? ? ? rx1_kdata_2r <= ?rx1_kdata_1r; ? ?endalways?@ (posedge?rx0_clk)?beginif?(!rx0_link_r[3])?begin? ? ? ? ? ? ?sof_vld <=?'h0; ? ? ? ?endelseif?(rx0_data_r==FRAM_SOF && rx0_kdata_r=='h1)?begin? ? ? ? ? ? ?sof_vld <=?'h1; ? ? ? ?endelsebegin? ? ? ? ? ? ?sof_vld <=?'h0; ? ? ? ?endendalways?@ (posedge?rx0_clk)?beginif?(!rx0_link_r[3])?begin? ? ? ? ? ? ?eof_vld <=?'h0; ? ? ? ?endelseif?(rx0_data_r==FRAM_EOF && rx0_kdata_r=='h1)?begin? ? ? ? ? ? ?eof_vld <=?'h1; ? ? ? ?endelsebegin? ? ? ? ? ? ?eof_vld <=?'h0; ? ? ? ?endendalways?@ (posedge?rx0_clk)?beginif?(!rx0_link_r[3])?begin? ? ? ? ? ? ?frame_vld <=?'h0; ? ? ? ?endelseif?(sof_vld || eof_vld)?begin? ? ? ? ? ? ?frame_vld <=?'h0; ? ? ? ?endelsebegin? ? ? ? ? ? ?frame_vld <=?'h1; ? ? ? ?endendalways?@ (posedge?rx0_clk)?beginif?(!rx0_link_r[3])?begin? ? ? ? ? ? ?user_data ? ? ? <=?'h0; ? ? ? ? ? ? user_data_vld ? <=?'h0; ? ? ? ?endelseif?(rx0_kdata_2r=='h0?&& frame_vld)?begin? ? ? ? ? ? ?user_data ? ? ? <= rx0_data_2r; ? ? ? ? ? ? user_data_vld ? <=?'h1; ? ? ? ?endelsebegin? ? ? ? ? ? ?user_data ? ? ? <= user_data; ? ? ? ? ? ? user_data_vld ? <=?'h0; ? ? ? ?endend//-------------------output port---------------------assign? user_rx0_data ? ? ? ?= user_data; ? ?assign? user_rx0_data_vld ? ?= user_data_vld; ? ?assign? user_rx1_data ? ? ? ?= rx1_link_r[3] ? user_data :?'h0; ? ?assign? user_rx1_data_vld ? ?= rx1_link_r[3] ? user_data_vld :?'h0; ? ?//----------------------DEBUG-----------------------? ? ?ila_0 ILA_user_rx ( ? ? ? ?.clk? ? ? ? (rx0_clk),?// input wire clk.probe0? ? ?({ ? ? ? ? ? ? ? ? ? ?'h0, ? ? ? ? ? ? ? ? ? ? rx0_data, ? ? ? ? ? ? ? ? ? ? rx0_kdata, ? ? ? ? ? ? ? ? ? ? sof_vld, ? ? ? ? ? ? ? ? ? ? eof_vld, ? ? ? ? ? ? ? ? ? ? frame_vld, ? ? ? ? ? ? ? ? ? ?// state_cur,// state_next,? ? ? ? ? ? ? ? ? ? ?rx0_link_r, ? ? ? ? ? ? ? ? ? ? rx1_link_r, ? ? ? ? ? ? ? ? ? ? ?rx0_data_r, ? ? ? ? ? ? ? ? ? ? rx0_kdata_r, ? ? ? ? ? ? ? ? ? ? ?rx0_data_1r, ? ? ? ? ? ? ? ? ? ? rx0_kdata_1r, ? ? ? ? ? ? ? ? ? ? ?rx0_data_2r, ? ? ? ? ? ? ? ? ? ? rx0_kdata_2r, ? ? ? ? ? ? ? ? ? ? ?user_data, ? ? ? ? ? ? ? ? ? ? user_data_vld ? ? ? ? })?// input wire [255:0] probe0? ? ?);endmodule

GT收發頂層：

這個模塊中，你得把原有的幀生成模塊和幀檢查模塊屏蔽掉使用?。。?！里面還有的參數進行了修改，同學們自己看源碼即可。

////////////////////////////////////////////////////////////////////////////////// ____ ____ // /  //  / ///___/  /  Vendor: Xilinx //    /   Version : 3.6//        Application : 7 Series FPGAs Transceivers Wizard // /  /     Filename : gtx_aurora_x2_exdes.v///___/ /   //   /  // \___/\___ //////Module gtx_aurora_x2_exdes//Generated by Xilinx 7 Series FPGAs Transceivers Wizard//////(c)Copyright 2010-2012 Xilinx, Inc. All rights reserved.////This file contains confidential and proprietary information//of Xilinx, Inc. and is protected under U.S. and//international copyright and other intellectual property//laws.////DISCLAIMER//This disclaimer is not a license and does not grant any//rights to the materials distributed herewith. Except as//otherwise provided in a valid license issued to you by//Xilinx, and to the maximum extent permitted by applicable//law:(1)THESE MATERIALS ARE MADE AVAILABLE"AS IS"AND//WITH ALL FAULTS, AND XILINX HEREBY DISCLAIMS ALL WARRANTIES//AND CONDITIONS, EXPRESS, IMPLIED, OR STATUTORY, INCLUDING//BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY, NON-//INFRINGEMENT, OR FITNESS FOR ANY PARTICULAR PURPOSE; and//(2)Xilinx shall not be liable(whether in contract or tort, // including negligence, or under any other theory of // liability)for any loss or damage of any kind or nature//related to, arising under or in connection with these//materials, including for any direct, or any indirect,//special, incidental, or consequential loss or damage//(including loss of data, profits, goodwill, or any type of // loss or damage suffered as a result of any action brought // by a third party)evenifsuch damage or loss was//reasonably foreseeable or Xilinx had been advised of the//possibility of the same.////CRITICAL APPLICATIONS//Xilinx products are not designed or intended to be fail-//safe, or for use in any application requiring fail-safe//performance, such as life-support or safety devices or//systems, Class III medical devices, nuclear facilities,//applications related to the deployment of airbags, or any//other applications that could lead to death, personal//injury, or severe property or environmental damage//(individually and collectively, "Critical // Applications"). Customer assumes the sole risk and//liability of any use of Xilinx products in Critical//Applications, subject only to applicable laws and//regulations governing limitations on product liability.////THIS COPYRIGHT NOTICE AND DISCLAIMER MUST BE RETAINED AS//PART OF THIS FILE AT ALL TIMES.  `timescale 1ns / 1ps `define DLY#1(*DowngradeIPIdentifiedWarnings="yes" *)//***********************************Entity Declaration************************(*CORE_GENERATION_INFO= "gtx_aurora_x2,gtwizard_v3_6_11,{protocol_file=aurora_8b10b_single_lane_4byte}" *)module gtx_aurora_x2_exdes#(   parameterEXAMPLE_CONFIG_INDEPENDENT_LANES  =  1,//configuration for frame gen and check   parameterEXAMPLE_LANE_WITH_START_CHAR    =  0,     // specifies lane with unique start frame char   parameterEXAMPLE_WORDS_IN_BRAM        =  512,    // specifies amount of data in BRAM   parameterEXAMPLE_SIM_GTRESET_SPEEDUP     =  "TRUE",  // simulation setting for GT SecureIP model   parameterEXAMPLE_USE_CHIPSCOPE        =  0,     // Set to 1 to use Chipscope to drive resets   parameterSTABLE_CLOCK_PERIOD         = 10 )(   input  wire        Q1_CLK1_GTREFCLK_PAD_N_IN,   input  wire        Q1_CLK1_GTREFCLK_PAD_P_IN,   input  wire        DRP_CLK_IN,   input  wire  [1:0]    RXN_IN,   input  wire  [1:0]    RXP_IN,   output wire  [1:0]    TXN_OUT,   output wire  [1:0]    TXP_OUT,   //-------------user interface-------------------------   input            soft_rst_tx,   input            soft_rst_rx,   input      [2:0]    gt_loopback,   output           user_rx0_clk,   output     [31:0]   user_rx0_data,   output     [3:0]    user_rx0_kdata,   output           user_rx0_link,   output           user_rx1_clk,   output     [31:0]   user_rx1_data,   output     [3:0]    user_rx1_kdata,   output           user_rx1_link,   output           user_tx0_clk,   input      [31:0]   user_tx0_data,   input      [3:0]    user_tx0_kdata,   output           user_tx0_link,   output           user_tx1_clk,   input      [31:0]   user_tx1_data,   input      [3:0]    user_tx1_kdata,   output           user_tx1_link );   wire soft_reset_i;  (*mark_debug= "TRUE" *)wire soft_reset_vio_i;//************************** Register Declarations ****************************   wire      gt_txfsmresetdone_i;   wire      gt_rxfsmresetdone_i;  (*ASYNC_REG= "TRUE" *)reg       gt_txfsmresetdone_r;  (*ASYNC_REG= "TRUE" *)reg       gt_txfsmresetdone_r2;   wire      gt0_txfsmresetdone_i;   wire      gt0_rxfsmresetdone_i;  (*ASYNC_REG= "TRUE" *)reg       gt0_txfsmresetdone_r;  (*ASYNC_REG= "TRUE" *)reg       gt0_txfsmresetdone_r2;  (*ASYNC_REG= "TRUE" *)reg       gt0_rxfsmresetdone_r;  (*ASYNC_REG= "TRUE" *)reg       gt0_rxfsmresetdone_r2;  (*ASYNC_REG= "TRUE" *)reg       gt0_rxresetdone_r;  (*ASYNC_REG= "TRUE" *)reg       gt0_rxresetdone_r2;  (*ASYNC_REG= "TRUE" *)reg       gt0_rxresetdone_r3;  (*ASYNC_REG= "TRUE" *)reg       gt0_rxresetdone_vio_r;  (*ASYNC_REG= "TRUE" *)reg       gt0_rxresetdone_vio_r2;  (*ASYNC_REG= "TRUE" *)reg       gt0_rxresetdone_vio_r3;   wire      gt1_txfsmresetdone_i;   wire      gt1_rxfsmresetdone_i;  (*ASYNC_REG= "TRUE" *)reg       gt1_txfsmresetdone_r;  (*ASYNC_REG= "TRUE" *)reg       gt1_txfsmresetdone_r2;  (*ASYNC_REG= "TRUE" *)reg       gt1_rxfsmresetdone_r;  (*ASYNC_REG= "TRUE" *)reg       gt1_rxfsmresetdone_r2;  (*ASYNC_REG= "TRUE" *)reg       gt1_rxresetdone_r;  (*ASYNC_REG= "TRUE" *)reg       gt1_rxresetdone_r2;  (*ASYNC_REG= "TRUE" *)reg       gt1_rxresetdone_r3;  (*ASYNC_REG= "TRUE" *)reg       gt1_rxresetdone_vio_r;  (*ASYNC_REG= "TRUE" *)reg       gt1_rxresetdone_vio_r2;  (*ASYNC_REG= "TRUE" *)reg       gt1_rxresetdone_vio_r3;   reg [5:0] reset_counter = 0;   reg   [3:0]  reset_pulse;//**************************** Wire Declarations ******************************////------------------------GT Wrapper Wires------------------------------//________________________________________________________________________//________________________________________________________________________//GT0(X1Y5)//-------------------------------CPLL Ports-------------------------------  wire      gt0_cpllfbclklost_i;   wire      gt0_cplllock_i;   wire      gt0_cpllrefclklost_i;   wire      gt0_cpllreset_i;  //--------------------------Channel - DRP Ports --------------------------  wire  [8:0]  gt0_drpaddr_i;   wire  [15:0] gt0_drpdi_i;   wire  [15:0] gt0_drpdo_i;   wire      gt0_drpen_i;   wire      gt0_drprdy_i;   wire      gt0_drpwe_i;  //-------------------------Digital Monitor Ports--------------------------  wire  [7:0]  gt0_dmonitorout_i;  //-----------------------------Loopback Ports-----------------------------  wire  [2:0]  gt0_loopback_i;  //----------------------------Power-Down Ports----------------------------  wire  [1:0]  gt0_rxpd_i;   wire  [1:0]  gt0_txpd_i;  //-------------------RX Initialization and Reset Ports--------------------  wire      gt0_eyescanreset_i;   wire      gt0_rxuserrdy_i;  //------------------------RX Margin Analysis Ports------------------------  wire      gt0_eyescandataerror_i;   wire      gt0_eyescantrigger_i;  //-----------------------Receive Ports - CDR Ports------------------------  wire      gt0_rxcdrhold_i;   wire      gt0_rxcdrovrden_i;  //-----------------Receive Ports - Clock Correction Ports-----------------  wire  [1:0]  gt0_rxclkcorcnt_i;  //----------------Receive Ports - FPGA RX interface Ports-----------------  wire  [31:0] gt0_rxdata_i;  //-----------------Receive Ports - Pattern Checker Ports------------------  wire      gt0_rxprbserr_i;   wire  [2:0]  gt0_rxprbssel_i;  //-----------------Receive Ports - Pattern Checker ports------------------  wire      gt0_rxprbscntreset_i;  //----------------Receive Ports - RX 8B/10B Decoder Ports-----------------  wire  [3:0]  gt0_rxdisperr_i;   wire  [3:0]  gt0_rxnotintable_i;  //-------------------------Receive Ports - RX AFE-------------------------  wire      gt0_gtxrxp_i;  //----------------------Receive Ports - RX AFE Ports----------------------  wire      gt0_gtxrxn_i;  //-----------------Receive Ports - RX Buffer Bypass Ports-----------------  wire      gt0_rxbufreset_i;   wire  [2:0]  gt0_rxbufstatus_i;  //------------Receive Ports - RX Byte and Word Alignment Ports------------  wire      gt0_rxbyteisaligned_i;   wire      gt0_rxbyterealign_i;   wire      gt0_rxcommadet_i;   wire      gt0_rxmcommaalignen_i;   wire      gt0_rxpcommaalignen_i;  //-------------------Receive Ports - RX Equalizer Ports-------------------  wire      gt0_rxdfelpmreset_i;   wire  [6:0]  gt0_rxmonitorout_i;   wire  [1:0]  gt0_rxmonitorsel_i;  //-------------Receive Ports - RX Fabric Output Control Ports-------------  wire      gt0_rxoutclk_i;   wire      gt0_rxoutclkfabric_i;  //-----------Receive Ports - RX Initialization and Reset Ports------------  wire      gt0_gtrxreset_i;   wire      gt0_rxpcsreset_i;   wire      gt0_rxpmareset_i;  //----------------Receive Ports - RX Margin Analysis ports----------------  wire      gt0_rxlpmen_i;  //---------------Receive Ports - RX Polarity Control Ports----------------  wire      gt0_rxpolarity_i;  //-----------------Receive Ports - RX8B/10B Decoder Ports-----------------  wire  [3:0]  gt0_rxchariscomma_i;   wire  [3:0]  gt0_rxcharisk_i;  //------------Receive Ports -RX Initialization and Reset Ports------------  wire      gt0_rxresetdone_i;  //----------------------TX Configurable Driver Ports----------------------  wire  [4:0]  gt0_txpostcursor_i;   wire  [4:0]  gt0_txprecursor_i;  //-------------------TX Initialization and Reset Ports--------------------  wire      gt0_gttxreset_i;   wire      gt0_txuserrdy_i;  //--------------Transmit Ports - 8b10b Encoder Control Ports--------------  wire  [3:0]  gt0_txchardispmode_i;   wire  [3:0]  gt0_txchardispval_i;  //----------------Transmit Ports - Pattern Generator Ports----------------  wire      gt0_txprbsforceerr_i;  //--------------------Transmit Ports - TX Buffer Ports--------------------  wire  [1:0]  gt0_txbufstatus_i;  //-------------Transmit Ports - TX Configurable Driver Ports--------------  wire  [3:0]  gt0_txdiffctrl_i;   wire  [6:0]  gt0_txmaincursor_i;  //----------------Transmit Ports - TX Data Path interface-----------------  wire  [31:0] gt0_txdata_i;  //--------------Transmit Ports - TX Driver and OOB signaling--------------  wire      gt0_gtxtxn_i;   wire      gt0_gtxtxp_i;  //---------Transmit Ports - TX Fabric Clock Output Control Ports----------  wire      gt0_txoutclk_i;   wire      gt0_txoutclkfabric_i;   wire      gt0_txoutclkpcs_i;  //-------------------Transmit Ports - TX Gearbox Ports--------------------  wire  [3:0]  gt0_txcharisk_i;  //-----------Transmit Ports - TX Initialization and Reset Ports-----------  wire      gt0_txpcsreset_i;   wire      gt0_txpmareset_i;   wire      gt0_txresetdone_i;  //---------------Transmit Ports - TX Polarity Control Ports---------------  wire      gt0_txpolarity_i;  //----------------Transmit Ports - pattern Generator Ports----------------  wire  [2:0]  gt0_txprbssel_i;  //________________________________________________________________________//________________________________________________________________________//GT1(X1Y6)//-------------------------------CPLL Ports-------------------------------  wire      gt1_cpllfbclklost_i;   wire      gt1_cplllock_i;   wire      gt1_cpllrefclklost_i;   wire      gt1_cpllreset_i;  //--------------------------Channel - DRP Ports --------------------------  wire  [8:0]  gt1_drpaddr_i;   wire  [15:0] gt1_drpdi_i;   wire  [15:0] gt1_drpdo_i;   wire      gt1_drpen_i;   wire      gt1_drprdy_i;   wire      gt1_drpwe_i;  //-------------------------Digital Monitor Ports--------------------------  wire  [7:0]  gt1_dmonitorout_i;  //-----------------------------Loopback Ports-----------------------------  wire  [2:0]  gt1_loopback_i;  //----------------------------Power-Down Ports----------------------------  wire  [1:0]  gt1_rxpd_i;   wire  [1:0]  gt1_txpd_i;  //-------------------RX Initialization and Reset Ports--------------------  wire      gt1_eyescanreset_i;   wire      gt1_rxuserrdy_i;  //------------------------RX Margin Analysis Ports------------------------  wire      gt1_eyescandataerror_i;   wire      gt1_eyescantrigger_i;  //-----------------------Receive Ports - CDR Ports------------------------  wire      gt1_rxcdrhold_i;   wire      gt1_rxcdrovrden_i;  //-----------------Receive Ports - Clock Correction Ports-----------------  wire  [1:0]  gt1_rxclkcorcnt_i;  //----------------Receive Ports - FPGA RX interface Ports-----------------  wire  [31:0] gt1_rxdata_i;  //-----------------Receive Ports - Pattern Checker Ports------------------  wire      gt1_rxprbserr_i;   wire  [2:0]  gt1_rxprbssel_i;  //-----------------Receive Ports - Pattern Checker ports------------------  wire      gt1_rxprbscntreset_i;  //----------------Receive Ports - RX 8B/10B Decoder Ports-----------------  wire  [3:0]  gt1_rxdisperr_i;   wire  [3:0]  gt1_rxnotintable_i;  //-------------------------Receive Ports - RX AFE-------------------------  wire      gt1_gtxrxp_i;  //----------------------Receive Ports - RX AFE Ports----------------------  wire      gt1_gtxrxn_i;  //-----------------Receive Ports - RX Buffer Bypass Ports-----------------  wire      gt1_rxbufreset_i;   wire  [2:0]  gt1_rxbufstatus_i;  //------------Receive Ports - RX Byte and Word Alignment Ports------------  wire      gt1_rxbyteisaligned_i;   wire      gt1_rxbyterealign_i;   wire      gt1_rxcommadet_i;   wire      gt1_rxmcommaalignen_i;   wire      gt1_rxpcommaalignen_i;  //-------------------Receive Ports - RX Equalizer Ports-------------------  wire      gt1_rxdfelpmreset_i;   wire  [6:0]  gt1_rxmonitorout_i;   wire  [1:0]  gt1_rxmonitorsel_i;  //-------------Receive Ports - RX Fabric Output Control Ports-------------  wire      gt1_rxoutclk_i;   wire      gt1_rxoutclkfabric_i;  //-----------Receive Ports - RX Initialization and Reset Ports------------  wire      gt1_gtrxreset_i;   wire      gt1_rxpcsreset_i;   wire      gt1_rxpmareset_i;  //----------------Receive Ports - RX Margin Analysis ports----------------  wire      gt1_rxlpmen_i;  //---------------Receive Ports - RX Polarity Control Ports----------------  wire      gt1_rxpolarity_i;  //-----------------Receive Ports - RX8B/10B Decoder Ports-----------------  wire  [3:0]  gt1_rxchariscomma_i;   wire  [3:0]  gt1_rxcharisk_i;  //------------Receive Ports -RX Initialization and Reset Ports------------  wire      gt1_rxresetdone_i;  //----------------------TX Configurable Driver Ports----------------------  wire  [4:0]  gt1_txpostcursor_i;   wire  [4:0]  gt1_txprecursor_i;  //-------------------TX Initialization and Reset Ports--------------------  wire      gt1_gttxreset_i;   wire      gt1_txuserrdy_i;  //--------------Transmit Ports - 8b10b Encoder Control Ports--------------  wire  [3:0]  gt1_txchardispmode_i;   wire  [3:0]  gt1_txchardispval_i;  //----------------Transmit Ports - Pattern Generator Ports----------------  wire      gt1_txprbsforceerr_i;  //--------------------Transmit Ports - TX Buffer Ports--------------------  wire  [1:0]  gt1_txbufstatus_i;  //-------------Transmit Ports - TX Configurable Driver Ports--------------  wire  [3:0]  gt1_txdiffctrl_i;   wire  [6:0]  gt1_txmaincursor_i;  //----------------Transmit Ports - TX Data Path interface-----------------  wire  [31:0] gt1_txdata_i;  //--------------Transmit Ports - TX Driver and OOB signaling--------------  wire      gt1_gtxtxn_i;   wire      gt1_gtxtxp_i;  //---------Transmit Ports - TX Fabric Clock Output Control Ports----------  wire      gt1_txoutclk_i;   wire      gt1_txoutclkfabric_i;   wire      gt1_txoutclkpcs_i;  //-------------------Transmit Ports - TX Gearbox Ports--------------------  wire  [3:0]  gt1_txcharisk_i;  //-----------Transmit Ports - TX Initialization and Reset Ports-----------  wire      gt1_txpcsreset_i;   wire      gt1_txpmareset_i;   wire      gt1_txresetdone_i;  //---------------Transmit Ports - TX Polarity Control Ports---------------  wire      gt1_txpolarity_i;  //----------------Transmit Ports - pattern Generator Ports----------------  wire  [2:0]  gt1_txprbssel_i;  //____________________________COMMONPORTS________________________________  //--------------------Common Block - Ref Clock Ports---------------------  wire      gt0_gtrefclk1_common_i;  //-----------------------Common Block - QPLL Ports------------------------  wire      gt0_qplllock_i;   wire      gt0_qpllrefclklost_i;   wire      gt0_qpllreset_i;  //-----------------------------Global Signals-----------------------------   wire      drpclk_in_i;   wire      DRPCLK_IN;   wire      gt0_tx_system_reset_c;   wire      gt0_rx_system_reset_c;   wire      gt1_tx_system_reset_c;   wire      gt1_rx_system_reset_c;   wire      tied_to_ground_i;   wire  [63:0] tied_to_ground_vec_i;   wire      tied_to_vcc_i;   wire  [7:0]  tied_to_vcc_vec_i;   wire      GTTXRESET_IN;   wire      GTRXRESET_IN;   wire      CPLLRESET_IN;   wire      QPLLRESET_IN;  //---------------------------User Clocks---------------------------------   wire      gt0_txusrclk_i;    wire      gt0_txusrclk2_i;    wire      gt0_rxusrclk_i;    wire      gt0_rxusrclk2_i;    wire      gt1_txusrclk_i;    wire      gt1_txusrclk2_i;    wire      gt1_rxusrclk_i;    wire      gt1_rxusrclk2_i;    //---------------------------Reference Clocks----------------------------     wire      q1_clk1_refclk_i;  //---------------------Frame check/gen Module Signals--------------------  wire      gt0_matchn_i;     wire  [3:0]  gt0_txcharisk_float_i;     wire  [15:0] gt0_txdata_float16_i;   wire  [31:0] gt0_txdata_float_i;        wire      gt0_block_sync_i;   wire      gt0_track_data_i;   wire  [7:0]  gt0_error_count_i;   wire      gt0_frame_check_reset_i;   wire      gt0_inc_in_i;   wire      gt0_inc_out_i;   wire  [31:0] gt0_unscrambled_data_i;   wire      gt1_matchn_i;     wire  [3:0]  gt1_txcharisk_float_i;     wire  [15:0] gt1_txdata_float16_i;   wire  [31:0] gt1_txdata_float_i;        wire      gt1_block_sync_i;   wire      gt1_track_data_i;   wire  [7:0]  gt1_error_count_i;   wire      gt1_frame_check_reset_i;   wire      gt1_inc_in_i;   wire      gt1_inc_out_i;   wire  [31:0] gt1_unscrambled_data_i;   wire      reset_on_data_error_i;   wire      track_data_out_i;    //---------------------Chipscope Signals---------------------------------(*mark_debug= "TRUE" *)wire  rxresetdone_vio_i;   wire  [35:0] tx_data_vio_control_i;   wire  [35:0] rx_data_vio_control_i;   wire  [35:0] shared_vio_control_i;   wire  [35:0] ila_control_i;   wire  [35:0] channel_drp_vio_control_i;   wire  [35:0] common_drp_vio_control_i;   wire  [31:0] tx_data_vio_async_in_i;   wire  [31:0] tx_data_vio_sync_in_i;   wire  [31:0] tx_data_vio_async_out_i;   wire  [31:0] tx_data_vio_sync_out_i;   wire  [31:0] rx_data_vio_async_in_i;   wire  [31:0] rx_data_vio_sync_in_i;   wire  [31:0] rx_data_vio_async_out_i;   wire  [31:0] rx_data_vio_sync_out_i;   wire  [31:0] shared_vio_in_i;   wire  [31:0] shared_vio_out_i;   wire  [163:0] ila_in_i;   wire  [31:0] channel_drp_vio_async_in_i;   wire  [31:0] channel_drp_vio_sync_in_i;   wire  [31:0] channel_drp_vio_async_out_i;   wire  [31:0] channel_drp_vio_sync_out_i;   wire  [31:0] common_drp_vio_async_in_i;   wire  [31:0] common_drp_vio_sync_in_i;   wire  [31:0] common_drp_vio_async_out_i;   wire  [31:0] common_drp_vio_sync_out_i;   wire  [31:0] gt0_tx_data_vio_async_in_i;   wire  [31:0] gt0_tx_data_vio_sync_in_i;   wire  [31:0] gt0_tx_data_vio_async_out_i;   wire  [31:0] gt0_tx_data_vio_sync_out_i;   wire  [31:0] gt0_rx_data_vio_async_in_i;   wire  [31:0] gt0_rx_data_vio_sync_in_i;   wire  [31:0] gt0_rx_data_vio_async_out_i;   wire  [31:0] gt0_rx_data_vio_sync_out_i;   wire  [163:0] gt0_ila_in_i;   wire  [31:0] gt0_channel_drp_vio_async_in_i;   wire  [31:0] gt0_channel_drp_vio_sync_in_i;   wire  [31:0] gt0_channel_drp_vio_async_out_i;   wire  [31:0] gt0_channel_drp_vio_sync_out_i;   wire  [31:0] gt0_common_drp_vio_async_in_i;   wire  [31:0] gt0_common_drp_vio_sync_in_i;   wire  [31:0] gt0_common_drp_vio_async_out_i;   wire  [31:0] gt0_common_drp_vio_sync_out_i;   wire  [31:0] gt1_tx_data_vio_async_in_i;   wire  [31:0] gt1_tx_data_vio_sync_in_i;   wire  [31:0] gt1_tx_data_vio_async_out_i;   wire  [31:0] gt1_tx_data_vio_sync_out_i;   wire  [31:0] gt1_rx_data_vio_async_in_i;   wire  [31:0] gt1_rx_data_vio_sync_in_i;   wire  [31:0] gt1_rx_data_vio_async_out_i;   wire  [31:0] gt1_rx_data_vio_sync_out_i;   wire  [163:0] gt1_ila_in_i;   wire  [31:0] gt1_channel_drp_vio_async_in_i;   wire  [31:0] gt1_channel_drp_vio_sync_in_i;   wire  [31:0] gt1_channel_drp_vio_async_out_i;   wire  [31:0] gt1_channel_drp_vio_sync_out_i;   wire  [31:0] gt1_common_drp_vio_async_in_i;   wire  [31:0] gt1_common_drp_vio_sync_in_i;   wire  [31:0] gt1_common_drp_vio_async_out_i;   wire  [31:0] gt1_common_drp_vio_sync_out_i;    wire      gttxreset_i;   wire      gtrxreset_i;   wire      mux_sel_i;   wire      user_tx_reset_i;   wire      user_rx_reset_i;   wire      tx_vio_clk_i;   wire      tx_vio_clk_mux_out_i;     wire      rx_vio_ila_clk_i;   wire      rx_vio_ila_clk_mux_out_i;   wire      cpllreset_i;     wire [(80 -32)-1:0] zero_vector_rx_80 ;  wire [(8 -4)-1:0] zero_vector_rx_8 ;  wire [79:0] gt0_rxdata_ila ;  wire [1:0] gt0_rxdatavalid_ila;  wire [7:0] gt0_rxcharisk_ila ;  wire gt0_txmmcm_lock_ila ;  wire gt0_rxmmcm_lock_ila ;  wire gt0_rxresetdone_ila ;  wire gt0_txresetdone_ila ;  wire [79:0] gt1_rxdata_ila ;  wire [1:0] gt1_rxdatavalid_ila;  wire [7:0] gt1_rxcharisk_ila ;  wire gt1_txmmcm_lock_ila ;  wire gt1_rxmmcm_lock_ila ;  wire gt1_rxresetdone_ila ;  wire gt1_txresetdone_ila ;//**************************** Main Body of Code *******************************  // Static signal Assigments     assign tied_to_ground_i       = 1'b0;   assign tied_to_ground_vec_i     = 64'h0000000000000000;   assign tied_to_vcc_i        = 1'b1;   assign tied_to_vcc_vec_i      = 8'hff;   assign zero_vector_rx_80 = 0;   assign zero_vector_rx_8 = 0;      assign q1_clk1_refclk_i           = 1'b0;  //------------------------------USERINTERFACE---------------------------//-------------channel0---------------------  assign user_rx0_clk  = gt0_rxusrclk2_i;   assign user_rx0_data  = gt0_rxdata_i;   assign user_rx0_kdata = gt0_rxcharisk_i;   assign user_rx0_link  = gt0_rxfsmresetdone_i;   assign user_tx0_clk  = gt0_txusrclk2_i;   assign gt0_txdata_i  = user_tx0_data;   assign gt0_txcharisk_i = user_tx0_kdata;   assign user_tx0_link  = gt0_txfsmresetdone_i;  //-------------channel1---------------------  assign user_rx1_clk  = gt1_rxusrclk2_i;   assign user_rx1_data  = gt1_rxdata_i;   assign user_rx1_kdata = gt1_rxcharisk_i;   assign user_rx1_link  = gt1_rxfsmresetdone_i;   assign user_tx1_clk  = gt1_txusrclk2_i;   assign gt1_txdata_i  = user_tx1_data;   assign gt1_txcharisk_i = user_tx1_kdata;   assign user_tx1_link  = gt1_txfsmresetdone_i;  //***********************************************************************////////---------------------------The GT Wrapper----------------------------////////***********************************************************************////Use the instantiation template in the example directory to add the GT wrapper to your design.  //In this example, the wrapper is wired up for basic operation with a frame generator and frame   //checker. The GTs will reset, then attempt to align and transmit data. If channel bonding is   //enabled, bonding should occur after alignment.  //While connecting the GT TX/RX Reset ports below, please add a delay of  //minimum 500ns as mentioned in AR 43482.      gtx_aurora_x2_support#(     .EXAMPLE_SIM_GTRESET_SPEEDUP  (EXAMPLE_SIM_GTRESET_SPEEDUP),    .STABLE_CLOCK_PERIOD(STABLE_CLOCK_PERIOD)  )   gtx_aurora_x2_support_i  (     .soft_reset_tx_in        (soft_rst_tx),    .soft_reset_rx_in(soft_rst_rx),    .dont_reset_on_data_error_in(tied_to_ground_i),  .q1_clk1_gtrefclk_pad_n_in(Q1_CLK1_GTREFCLK_PAD_N_IN),  .q1_clk1_gtrefclk_pad_p_in(Q1_CLK1_GTREFCLK_PAD_P_IN),    .gt0_tx_fsm_reset_done_out(gt0_txfsmresetdone_i),    .gt0_rx_fsm_reset_done_out(gt0_rxfsmresetdone_i),    .gt0_data_valid_in('b1),    .gt1_tx_fsm_reset_done_out(gt1_txfsmresetdone_i),    .gt1_rx_fsm_reset_done_out(gt1_rxfsmresetdone_i),    .gt1_data_valid_in('b1),   .gt0_txusrclk_out(gt0_txusrclk_i),  .gt0_txusrclk2_out(gt0_txusrclk2_i),  .gt0_rxusrclk_out(gt0_rxusrclk_i),  .gt0_rxusrclk2_out(gt0_rxusrclk2_i),   .gt1_txusrclk_out(gt1_txusrclk_i),  .gt1_txusrclk2_out(gt1_txusrclk2_i),  .gt1_rxusrclk_out(gt1_rxusrclk_i),  .gt1_rxusrclk2_out(gt1_rxusrclk2_i),    //_____________________________________________________________________//_____________________________________________________________________//GT0(X1Y5)//-------------------------------CPLL Ports-------------------------------.gt0_cpllfbclklost_out(gt0_cpllfbclklost_i),    .gt0_cplllock_out(gt0_cplllock_i),    .gt0_cpllreset_in(tied_to_ground_i),    //--------------------------Channel - DRP Ports --------------------------.gt0_drpaddr_in(gt0_drpaddr_i),    .gt0_drpdi_in(gt0_drpdi_i),    .gt0_drpdo_out(gt0_drpdo_i),    .gt0_drpen_in(gt0_drpen_i),    .gt0_drprdy_out(gt0_drprdy_i),    .gt0_drpwe_in(gt0_drpwe_i),    //-------------------------Digital Monitor Ports--------------------------.gt0_dmonitorout_out(gt0_dmonitorout_i),    //-----------------------------Loopback Ports-----------------------------.gt0_loopback_in(gt_loopback),    //----------------------------Power-Down Ports----------------------------.gt0_rxpd_in(gt0_rxpd_i),    .gt0_txpd_in(gt0_txpd_i),    //-------------------RX Initialization and Reset Ports--------------------.gt0_eyescanreset_in(tied_to_ground_i),    .gt0_rxuserrdy_in(tied_to_vcc_i),    //------------------------RX Margin Analysis Ports------------------------.gt0_eyescandataerror_out(gt0_eyescandataerror_i),    .gt0_eyescantrigger_in(tied_to_ground_i),    //-----------------------Receive Ports - CDR Ports------------------------.gt0_rxcdrhold_in(gt0_rxcdrhold_i),    .gt0_rxcdrovrden_in(tied_to_ground_i),    //-----------------Receive Ports - Clock Correction Ports-----------------.gt0_rxclkcorcnt_out(gt0_rxclkcorcnt_i),    //----------------Receive Ports - FPGA RX interface Ports-----------------.gt0_rxdata_out(gt0_rxdata_i),    //-----------------Receive Ports - Pattern Checker Ports------------------.gt0_rxprbserr_out(gt0_rxprbserr_i),    .gt0_rxprbssel_in(gt0_rxprbssel_i),    //-----------------Receive Ports - Pattern Checker ports------------------.gt0_rxprbscntreset_in(gt0_rxprbscntreset_i),    //----------------Receive Ports - RX 8B/10B Decoder Ports-----------------.gt0_rxdisperr_out(gt0_rxdisperr_i),    .gt0_rxnotintable_out(gt0_rxnotintable_i),    //-------------------------Receive Ports - RX AFE-------------------------.gt0_gtxrxp_in(RXP_IN[0]),    //----------------------Receive Ports - RX AFE Ports----------------------.gt0_gtxrxn_in(RXN_IN[0]),    //-----------------Receive Ports - RX Buffer Bypass Ports-----------------.gt0_rxbufreset_in(gt0_rxbufreset_i),    .gt0_rxbufstatus_out(gt0_rxbufstatus_i),    //------------Receive Ports - RX Byte and Word Alignment Ports------------.gt0_rxbyteisaligned_out(gt0_rxbyteisaligned_i),    .gt0_rxbyterealign_out(gt0_rxbyterealign_i),    .gt0_rxcommadet_out(gt0_rxcommadet_i),    .gt0_rxmcommaalignen_in('b1),    .gt0_rxpcommaalignen_in('b1),    //-------------------Receive Ports - RX Equalizer Ports-------------------.gt0_rxdfelpmreset_in(tied_to_ground_i),    .gt0_rxmonitorout_out(gt0_rxmonitorout_i),    .gt0_rxmonitorsel_in(2'b00),    //-------------Receive Ports - RX Fabric Output Control Ports-------------.gt0_rxoutclkfabric_out(gt0_rxoutclkfabric_i),    //-----------Receive Ports - RX Initialization and Reset Ports------------.gt0_gtrxreset_in(tied_to_ground_i),    .gt0_rxpcsreset_in(tied_to_ground_i),    .gt0_rxpmareset_in(gt0_rxpmareset_i),    //----------------Receive Ports - RX Margin Analysis ports----------------.gt0_rxlpmen_in(gt0_rxlpmen_i),    //---------------Receive Ports - RX Polarity Control Ports----------------.gt0_rxpolarity_in(gt0_rxpolarity_i),    //-----------------Receive Ports - RX8B/10B Decoder Ports-----------------.gt0_rxchariscomma_out(gt0_rxchariscomma_i),    .gt0_rxcharisk_out(gt0_rxcharisk_i),    //------------Receive Ports -RX Initialization and Reset Ports------------.gt0_rxresetdone_out(gt0_rxresetdone_i),    //----------------------TX Configurable Driver Ports----------------------.gt0_txpostcursor_in(gt0_txpostcursor_i),    .gt0_txprecursor_in(gt0_txprecursor_i),    //-------------------TX Initialization and Reset Ports--------------------.gt0_gttxreset_in(tied_to_ground_i),    .gt0_txuserrdy_in(tied_to_vcc_i),    //--------------Transmit Ports - 8b10b Encoder Control Ports--------------.gt0_txchardispmode_in(gt0_txchardispmode_i),    .gt0_txchardispval_in(gt0_txchardispval_i),    //----------------Transmit Ports - Pattern Generator Ports----------------.gt0_txprbsforceerr_in(gt0_txprbsforceerr_i),    //--------------------Transmit Ports - TX Buffer Ports--------------------.gt0_txbufstatus_out(gt0_txbufstatus_i),    //-------------Transmit Ports - TX Configurable Driver Ports--------------.gt0_txdiffctrl_in(gt0_txdiffctrl_i),    .gt0_txmaincursor_in(7'b0000000),    //----------------Transmit Ports - TX Data Path interface-----------------.gt0_txdata_in(gt0_txdata_i),    //--------------Transmit Ports - TX Driver and OOB signaling--------------.gt0_gtxtxn_out(TXN_OUT[0]),    .gt0_gtxtxp_out(TXP_OUT[0]),    //---------Transmit Ports - TX Fabric Clock Output Control Ports----------.gt0_txoutclkfabric_out(gt0_txoutclkfabric_i),    .gt0_txoutclkpcs_out(gt0_txoutclkpcs_i),    //-------------------Transmit Ports - TX Gearbox Ports--------------------.gt0_txcharisk_in(gt0_txcharisk_i),    //-----------Transmit Ports - TX Initialization and Reset Ports-----------.gt0_txpcsreset_in(tied_to_ground_i),    .gt0_txpmareset_in(tied_to_ground_i),    .gt0_txresetdone_out(gt0_txresetdone_i),    //---------------Transmit Ports - TX Polarity Control Ports---------------.gt0_txpolarity_in(gt0_txpolarity_i),    //----------------Transmit Ports - pattern Generator Ports----------------.gt0_txprbssel_in(gt0_txprbssel_i),    //_____________________________________________________________________//_____________________________________________________________________//GT1(X1Y6)//-------------------------------CPLL Ports-------------------------------.gt1_cpllfbclklost_out(gt1_cpllfbclklost_i),    .gt1_cplllock_out(gt1_cplllock_i),    .gt1_cpllreset_in(tied_to_ground_i),    //--------------------------Channel - DRP Ports --------------------------.gt1_drpaddr_in(gt1_drpaddr_i),    .gt1_drpdi_in(gt1_drpdi_i),    .gt1_drpdo_out(gt1_drpdo_i),    .gt1_drpen_in(gt1_drpen_i),    .gt1_drprdy_out(gt1_drprdy_i),    .gt1_drpwe_in(gt1_drpwe_i),    //-------------------------Digital Monitor Ports--------------------------.gt1_dmonitorout_out(gt1_dmonitorout_i),    //-----------------------------Loopback Ports-----------------------------.gt1_loopback_in(gt1_loopback_i),    //----------------------------Power-Down Ports----------------------------.gt1_rxpd_in(gt1_rxpd_i),    .gt1_txpd_in(gt1_txpd_i),    //-------------------RX Initialization and Reset Ports--------------------.gt1_eyescanreset_in(tied_to_ground_i),    .gt1_rxuserrdy_in(tied_to_vcc_i),    //------------------------RX Margin Analysis Ports------------------------.gt1_eyescandataerror_out(gt1_eyescandataerror_i),    .gt1_eyescantrigger_in(tied_to_ground_i),    //-----------------------Receive Ports - CDR Ports------------------------.gt1_rxcdrhold_in(gt1_rxcdrhold_i),    .gt1_rxcdrovrden_in(tied_to_ground_i),    //-----------------Receive Ports - Clock Correction Ports-----------------.gt1_rxclkcorcnt_out(gt1_rxclkcorcnt_i),    //----------------Receive Ports - FPGA RX interface Ports-----------------.gt1_rxdata_out(gt1_rxdata_i),    //-----------------Receive Ports - Pattern Checker Ports------------------.gt1_rxprbserr_out(gt1_rxprbserr_i),    .gt1_rxprbssel_in(gt1_rxprbssel_i),    //-----------------Receive Ports - Pattern Checker ports------------------.gt1_rxprbscntreset_in(gt1_rxprbscntreset_i),    //----------------Receive Ports - RX 8B/10B Decoder Ports-----------------.gt1_rxdisperr_out(gt1_rxdisperr_i),    .gt1_rxnotintable_out(gt1_rxnotintable_i),    //-------------------------Receive Ports - RX AFE-------------------------.gt1_gtxrxp_in(RXP_IN[1]),    //----------------------Receive Ports - RX AFE Ports----------------------.gt1_gtxrxn_in(RXN_IN[1]),    //-----------------Receive Ports - RX Buffer Bypass Ports-----------------.gt1_rxbufreset_in(gt1_rxbufreset_i),    .gt1_rxbufstatus_out(gt1_rxbufstatus_i),    //------------Receive Ports - RX Byte and Word Alignment Ports------------.gt1_rxbyteisaligned_out(gt1_rxbyteisaligned_i),    .gt1_rxbyterealign_out(gt1_rxbyterealign_i),    .gt1_rxcommadet_out(gt1_rxcommadet_i),    .gt1_rxmcommaalignen_in('b1),    .gt1_rxpcommaalignen_in('b1),    //-------------------Receive Ports - RX Equalizer Ports-------------------.gt1_rxdfelpmreset_in(tied_to_ground_i),    .gt1_rxmonitorout_out(gt1_rxmonitorout_i),    .gt1_rxmonitorsel_in(2'b00),    //-------------Receive Ports - RX Fabric Output Control Ports-------------.gt1_rxoutclkfabric_out(gt1_rxoutclkfabric_i),    //-----------Receive Ports - RX Initialization and Reset Ports------------.gt1_gtrxreset_in(tied_to_ground_i),    .gt1_rxpcsreset_in(tied_to_ground_i),    .gt1_rxpmareset_in(gt1_rxpmareset_i),    //----------------Receive Ports - RX Margin Analysis ports----------------.gt1_rxlpmen_in(gt1_rxlpmen_i),    //---------------Receive Ports - RX Polarity Control Ports----------------.gt1_rxpolarity_in(gt1_rxpolarity_i),    //-----------------Receive Ports - RX8B/10B Decoder Ports-----------------.gt1_rxchariscomma_out(gt1_rxchariscomma_i),    .gt1_rxcharisk_out(gt1_rxcharisk_i),    //------------Receive Ports -RX Initialization and Reset Ports------------.gt1_rxresetdone_out(gt1_rxresetdone_i),    //----------------------TX Configurable Driver Ports----------------------.gt1_txpostcursor_in(gt1_txpostcursor_i),    .gt1_txprecursor_in(gt1_txprecursor_i),    //-------------------TX Initialization and Reset Ports--------------------.gt1_gttxreset_in(tied_to_ground_i),    .gt1_txuserrdy_in(tied_to_vcc_i),    //--------------Transmit Ports - 8b10b Encoder Control Ports--------------.gt1_txchardispmode_in(gt1_txchardispmode_i),    .gt1_txchardispval_in(gt1_txchardispval_i),    //----------------Transmit Ports - Pattern Generator Ports----------------.gt1_txprbsforceerr_in(gt1_txprbsforceerr_i),    //--------------------Transmit Ports - TX Buffer Ports--------------------.gt1_txbufstatus_out(gt1_txbufstatus_i),    //-------------Transmit Ports - TX Configurable Driver Ports--------------.gt1_txdiffctrl_in(gt1_txdiffctrl_i),    .gt1_txmaincursor_in(7'b0000000),    //----------------Transmit Ports - TX Data Path interface-----------------.gt1_txdata_in(gt1_txdata_i),    //--------------Transmit Ports - TX Driver and OOB signaling--------------.gt1_gtxtxn_out(TXN_OUT[1]),    .gt1_gtxtxp_out(TXP_OUT[1]),    //---------Transmit Ports - TX Fabric Clock Output Control Ports----------.gt1_txoutclkfabric_out(gt1_txoutclkfabric_i),    .gt1_txoutclkpcs_out(gt1_txoutclkpcs_i),    //-------------------Transmit Ports - TX Gearbox Ports--------------------.gt1_txcharisk_in(gt1_txcharisk_i),    //-----------Transmit Ports - TX Initialization and Reset Ports-----------.gt1_txpcsreset_in(tied_to_ground_i),    .gt1_txpmareset_in(tied_to_ground_i),    .gt1_txresetdone_out(gt1_txresetdone_i),    //---------------Transmit Ports - TX Polarity Control Ports---------------.gt1_txpolarity_in(gt1_txpolarity_i),    //----------------Transmit Ports - pattern Generator Ports----------------.gt1_txprbssel_in(gt1_txprbssel_i),  //____________________________COMMONPORTS________________________________    .gt0_qplloutclk_out(),    .gt0_qplloutrefclk_out(),    .sysclk_in(DRP_CLK_IN)  );  //IBUFDS IBUFDS_DRP_CLK  //(   //   .I (DRP_CLK_IN_P),  //.IB(DRP_CLK_IN_N),  //.O(DRPCLK_IN)// );  //BUFG DRP_CLK_BUFG  //(   //   .I               (DRPCLK_IN),  //.O(drpclk_in_i)//);   //***********************************************************************////////---------------------------User Module Resets-------------------------////////***********************************************************************////All the User Modules i.e. FRAME_GEN, FRAME_CHECK and the sync modules  //are held in reset till the RESETDONE goes high.   //The RESETDONE is registered a couple of times on *USRCLK2 and connected   //to the reset of the modules   always @(posedge gt0_rxusrclk2_i or negedge gt0_rxresetdone_i)   begin    if(!gt0_rxresetdone_i)    begin       gt0_rxresetdone_r  <= ? `DLY 1'b0; ? ? ? ? ? ? gt0_rxresetdone_r2 ? <= ? `DLY 1'b0; ? ? ? ? ? ? gt0_rxresetdone_r3 ? <= ? `DLY 1'b0; ? ? ? ? end ? ? ? ? else ? ? ? ? begin ? ? ? ? ? ? gt0_rxresetdone_r ? ?<= ? `DLY gt0_rxresetdone_i; ? ? ? ? ? ? gt0_rxresetdone_r2 ? <= ? `DLY gt0_rxresetdone_r; ? ? ? ? ? ? gt0_rxresetdone_r3 ? <= ? `DLY gt0_rxresetdone_r2; ? ? ? ? end ? ? end ? ? ? ? ? ?always @(posedge ?gt0_txusrclk2_i or negedge gt0_txfsmresetdone_i)? ? ? begin ? ? ? ?if(!gt0_txfsmresetdone_i)? ? ? ? ?begin ? ? ? ? ? ? gt0_txfsmresetdone_r ? ?<= ? `DLY 1'b0; ? ? ? ? ? ? gt0_txfsmresetdone_r2 ? <= ? `DLY 1'b0; ? ? ? ? end ? ? ? ? else ? ? ? ? begin ? ? ? ? ? ? gt0_txfsmresetdone_r ? ?<= ? `DLY gt0_txfsmresetdone_i; ? ? ? ? ? ? gt0_txfsmresetdone_r2 ? <= ? `DLY gt0_txfsmresetdone_r; ? ? ? ? end ? ? end ?always @(posedge gt1_rxusrclk2_i or negedge gt1_rxresetdone_i)? ? ? begin ? ? ? ?if(!gt1_rxresetdone_i)? ? ? ? ?begin ? ? ? ? ? ? gt1_rxresetdone_r ? ?<= ? `DLY 1'b0; ? ? ? ? ? ? gt1_rxresetdone_r2 ? <= ? `DLY 1'b0; ? ? ? ? ? ? gt1_rxresetdone_r3 ? <= ? `DLY 1'b0; ? ? ? ? end ? ? ? ? else ? ? ? ? begin ? ? ? ? ? ? gt1_rxresetdone_r ? ?<= ? `DLY gt1_rxresetdone_i; ? ? ? ? ? ? gt1_rxresetdone_r2 ? <= ? `DLY gt1_rxresetdone_r; ? ? ? ? ? ? gt1_rxresetdone_r3 ? <= ? `DLY gt1_rxresetdone_r2; ? ? ? ? end ? ? end ? ? ? ? ? ?always @(posedge ?gt1_txusrclk2_i or negedge gt1_txfsmresetdone_i)? ? ? begin ? ? ? ?if(!gt1_txfsmresetdone_i)? ? ? ? ?begin ? ? ? ? ? ? gt1_txfsmresetdone_r ? ?<= ? `DLY 1'b0; ? ? ? ? ? ? gt1_txfsmresetdone_r2 ? <= ? `DLY 1'b0; ? ? ? ? end ? ? ? ? else ? ? ? ? begin ? ? ? ? ? ? gt1_txfsmresetdone_r ? ?<= ? `DLY gt1_txfsmresetdone_i; ? ? ? ? ? ? gt1_txfsmresetdone_r2 ? <= ? `DLY gt1_txfsmresetdone_r; ? ? ? ? end ? ? end ? ?//***********************************************************************////////------------------------? Frame Generators ?---------------------------////////***********************************************************************////?The example design uses Block RAM based frame generators to provide test ? ?//?data to the GTs for transmission. By default the frame generators are ? ? ?//?loaded with an incrementing data sequence that includes commas/alignment ? ?//?characters for alignment. If your protocol uses channel bonding, the ? ? ?//?frame generator will also be preloaded with a channel bonding sequence. ? ? ? ??//?You can modify the data transmitted by changing the INIT values of the frame ? ?//?generator in this file. Pay careful attention to bit order and the spacing ? ?//?of your control and alignment characters. ? ?//?gtx_aurora_x2_GT_FRAME_GEN?#//( ? ? // ? ? .WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM)//?) ? ?//?gt0_frame_gen ? ?//( ? ? // ? ? // User Interface ? ? // ? ? .TX_DATA_OUT ? ? ? ? ? ? ? ? ? ?({gt0_txdata_float_i,gt0_txdata_i,gt0_txdata_float16_i}), ? ?//.TXCTRL_OUT({gt0_txcharisk_float_i,gt0_txcharisk_i}), ? ?////?System Interface ? ?//.USER_CLK(gt0_txusrclk2_i), ? ?//.SYSTEM_RESET(gt0_tx_system_reset_c)//?); ? ?//?gtx_aurora_x2_GT_FRAME_GEN?#//( ? ? // ? ? .WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM)//?) ? ?//?gt1_frame_gen ? ?//( ? ? // ? ? // User Interface ? ? // ? ? .TX_DATA_OUT ? ? ? ? ? ? ? ? ? ?({gt1_txdata_float_i,gt1_txdata_i,gt1_txdata_float16_i}), ? ?//.TXCTRL_OUT({gt1_txcharisk_float_i,gt1_txcharisk_i}), ? ?////?System Interface ? ?//.USER_CLK(gt1_txusrclk2_i), ? ?//.SYSTEM_RESET(gt1_tx_system_reset_c)//?); ? ?//***********************************************************************////////------------------------? Frame Checkers ?-----------------------------////////***********************************************************************////?The example design uses Block RAM based frame checkers to verify incoming ? ? ??//?data. By default the frame generators are loaded with a data sequence that ? ? ?//?matches the outgoing sequence of the frame generators for the TX ports. ? ? ? ??//?You can modify the expected data sequence by changing the INIT values of the frame ? ?//?checkers in this file. Pay careful attention to bit order and the spacing ? ?//?of your control and alignment characters. ? ? ? ??//?When the frame checker receives data, it attempts to synchronise to the ? ? ?//?incoming pattern by looking for the first sequence in the pattern. Once it ? ? ?//?finds the first sequence, it increments through the sequence, and indicates an ? ? ?//?error whenever the next value received does not match the expected value. ? ?//?assign gt0_frame_check_reset_i =?(EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?reset_on_data_error_i:gt0_matchn_i; ? ?//?gt0_frame_check0 is always connected to the lane with the start of char ? ? ?//?and this lane starts off the data checking on all the other lanes. The INC_IN port is tied off ? ?//?assign gt0_inc_in_i = 1'b0;//? ? ?gtx_aurora_x2_GT_FRAME_CHECK?#//( // .RX_DATA_WIDTH ( 32 ),//.RXCTRL_WIDTH( 4 ),//.COMMA_DOUBLE( 16'h04bc ),//.WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM),//.START_OF_PACKET_CHAR( 32'h060504bc )//? ? ?)//? ? ?gt0_frame_check//( // ? ? ? ? // GT Interface // ? ? ? ? .RX_DATA_IN ? ? ? ? ? ? ? ? ? ? (gt0_rxdata_i),//.RXCTRL_IN(gt0_rxcharisk_i),//.RXENMCOMMADET_OUT(gt0_rxmcommaalignen_i),//.RXENPCOMMADET_OUT(gt0_rxpcommaalignen_i),//.RX_ENCHAN_SYNC_OUT( ),//.RX_CHANBOND_SEQ_IN(tied_to_ground_i),////?Control Interface//.INC_IN(gt0_inc_in_i),//.INC_OUT(gt0_inc_out_i),//.PATTERN_MATCHB_OUT(gt0_matchn_i),//.RESET_ON_ERROR_IN(gt0_frame_check_reset_i),////?System Interface//.USER_CLK(gt0_rxusrclk2_i),//.SYSTEM_RESET(gt0_rx_system_reset_c),//.ERROR_COUNT_OUT(gt0_error_count_i),//.TRACK_DATA_OUT(gt0_track_data_i)//? ? ?);//? ? ?assign gt1_frame_check_reset_i =?(EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?reset_on_data_error_i:gt1_matchn_i; ? ?//?in the?"independent lanes"?configuration, each of the lanes looks for the unique start char and ? ?//?in this case, the INC_IN port is tied off. ? ?//?Else, the data checking is triggered by the?"master"?lane ? ?//?assign gt1_inc_in_i =?(EXAMPLE_CONFIG_INDEPENDENT_LANES==0)?gt0_inc_out_i:1'b0;//? ? ?gtx_aurora_x2_GT_FRAME_CHECK?#//( // .RX_DATA_WIDTH ( 32 ),//.RXCTRL_WIDTH( 4 ),//.COMMA_DOUBLE( 16'h04bc ),//.WORDS_IN_BRAM(EXAMPLE_WORDS_IN_BRAM),//.START_OF_PACKET_CHAR( 32'h060504bc )//? ? ?)//? ? ?gt1_frame_check//( // ? ? ? ? // GT Interface // ? ? ? ? .RX_DATA_IN ? ? ? ? ? ? ? ? ? ? (gt1_rxdata_i),//.RXCTRL_IN(gt1_rxcharisk_i),//.RXENMCOMMADET_OUT(gt1_rxmcommaalignen_i),//.RXENPCOMMADET_OUT(gt1_rxpcommaalignen_i),//.RX_ENCHAN_SYNC_OUT( ),//.RX_CHANBOND_SEQ_IN(tied_to_ground_i),////?Control Interface//.INC_IN(gt1_inc_in_i),//.INC_OUT(gt1_inc_out_i),//.PATTERN_MATCHB_OUT(gt1_matchn_i),//.RESET_ON_ERROR_IN(gt1_frame_check_reset_i),////?System Interface//.USER_CLK(gt1_rxusrclk2_i),//.SYSTEM_RESET(gt1_rx_system_reset_c),//.ERROR_COUNT_OUT(gt1_error_count_i),//.TRACK_DATA_OUT(gt1_track_data_i)//? ? ?);//? ? ?assign TRACK_DATA_OUT = track_data_out_i;//? ? ?assign track_data_out_i = ?//? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?gt0_track_data_i &//? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?gt1_track_data_i ;//-------------------------------------------------------------------------------------//-------------------------Debug?Signals assignment--------------------? ? ?assign ?gt0_rxlpmen_i ? ? ? ? ? ? ? ? ? ? ? ?= ?tied_to_vcc_i; ? ? assign ?gt1_rxlpmen_i ? ? ? ? ? ? ? ? ? ? ? ?= ?tied_to_vcc_i;//------------?optional Ports assignments?--------------assign ?gt0_rxprbscntreset_i ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt0_rxprbssel_i ? ? ? ? ? ? ? ? ? ? ?= ?0; assign ?gt0_loopback_i ? ? ? ? ? ? ? ? ? ? ? = ?0; ? assign ?gt0_txdiffctrl_i ? ? ? ? ? ? ? ? ? ? = ?0; assign ?gt0_rxbufreset_i ? ? ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt0_rxcdrhold_i ? ? ? ? ? ? ? ? ? ? ?= ?tied_to_ground_i;?//------GTH/GTPassign ?gt0_rxdfelpmreset_i ? ? ? ? ? ? ? ? ?= ?tied_to_ground_i; assign ?gt0_rxpmareset_i ? ? ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt0_rxpolarity_i ? ? ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt0_rxpd_i ? ? ? ? ? ? ? ? ? ? ? ? ? = ?0; assign ?gt0_txprecursor_i ? ? ? ? ? ? ? ? ? ?= ?0; assign ?gt0_txpostcursor_i ? ? ? ? ? ? ? ? ? = ?0; assign ?gt0_txchardispmode_i ? ? ? ? ? ? ? ? = ?0; assign ?gt0_txchardispval_i ? ? ? ? ? ? ? ? ?= ?0; assign ?gt0_txpolarity_i ? ? ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt0_txpd_i ? ? ? ? ? ? ? ? ? ? ? ? ? = ?0; assign ?gt0_txprbsforceerr_i ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt0_txprbssel_i ? ? ? ? ? ? ? ? ? ? ?= ?0; assign ?gt1_rxprbscntreset_i ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt1_rxprbssel_i ? ? ? ? ? ? ? ? ? ? ?= ?0; assign ?gt1_loopback_i ? ? ? ? ? ? ? ? ? ? ? = ?0; ? assign ?gt1_txdiffctrl_i ? ? ? ? ? ? ? ? ? ? = ?0; assign ?gt1_rxbufreset_i ? ? ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt1_rxcdrhold_i ? ? ? ? ? ? ? ? ? ? ?= ?tied_to_ground_i;?//------GTH/GTPassign ?gt1_rxdfelpmreset_i ? ? ? ? ? ? ? ? ?= ?tied_to_ground_i; assign ?gt1_rxpmareset_i ? ? ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt1_rxpolarity_i ? ? ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt1_rxpd_i ? ? ? ? ? ? ? ? ? ? ? ? ? = ?0; assign ?gt1_txprecursor_i ? ? ? ? ? ? ? ? ? ?= ?0; assign ?gt1_txpostcursor_i ? ? ? ? ? ? ? ? ? = ?0; assign ?gt1_txchardispmode_i ? ? ? ? ? ? ? ? = ?0; assign ?gt1_txchardispval_i ? ? ? ? ? ? ? ? ?= ?0; assign ?gt1_txpolarity_i ? ? ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt1_txpd_i ? ? ? ? ? ? ? ? ? ? ? ? ? = ?0; assign ?gt1_txprbsforceerr_i ? ? ? ? ? ? ? ? = ?tied_to_ground_i; assign ?gt1_txprbssel_i ? ? ? ? ? ? ? ? ? ? ?= ?0;//------------------------------------------------------//?assign resets for frame_gen modules ? ? assign ?gt0_tx_system_reset_c = !gt0_txfsmresetdone_r2; ? ? assign ?gt1_tx_system_reset_c = !gt1_txfsmresetdone_r2; ? ?//?assign resets for frame_check modules ? ? assign ?gt0_rx_system_reset_c = !gt0_rxresetdone_r3; ? ? assign ?gt1_rx_system_reset_c = !gt1_rxresetdone_r3; ?assign gt0_drpaddr_i = 9'd0; assign gt0_drpdi_i = 16'd0; assign gt0_drpen_i = 1'b0; assign gt0_drpwe_i = 1'b0; assign gt1_drpaddr_i = 9'd0; assign gt1_drpdi_i = 16'd0; assign gt1_drpen_i = 1'b0; assign gt1_drpwe_i = 1'b0; assign soft_reset_i = tied_to_ground_i; endmodule ? ? ?

3. 在線調試

調試思路：如果沒有多余的板卡，你就用ip核進行回環調試，具體看ug476手冊第88頁進行配置（廣子：上xianyu搜麻醬就燒餅，獲取xilinx全系列文檔手冊），近端pcs和近端pma，如果這樣調試通了，那基本沒問題了。

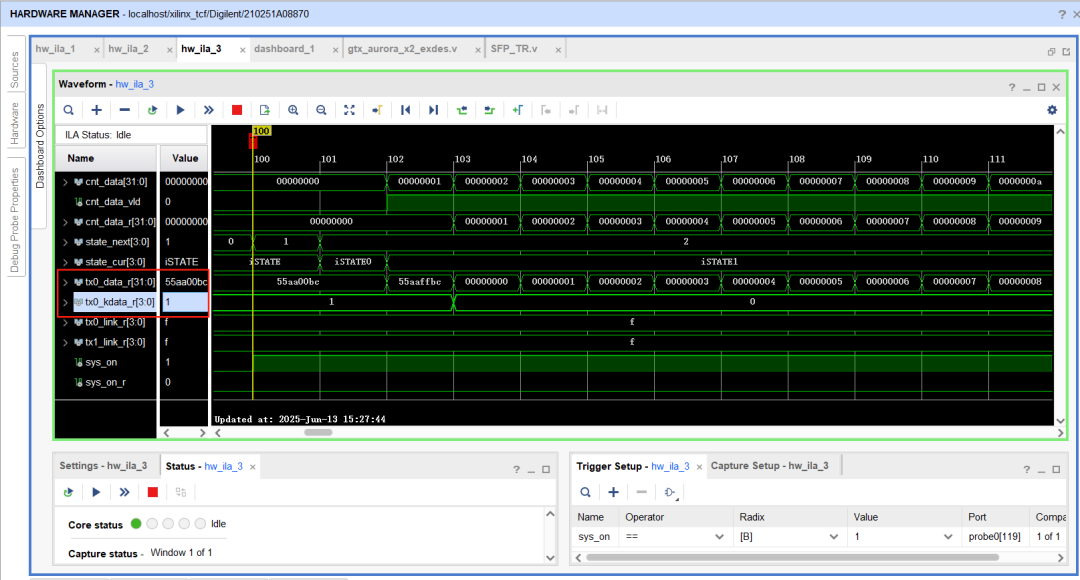

TX鏈路：

可以很清晰的看到，當我的sys_on拉高的時候，經過編碼后的數據包已經有效的發送出去了

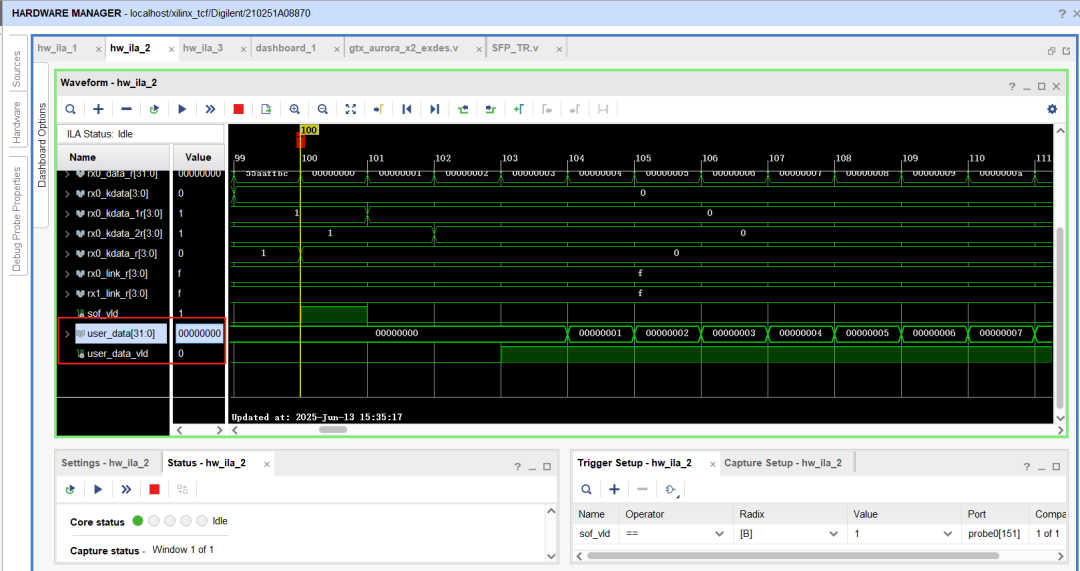

RX鏈路：

可以看到，當我的vld有效的時候，接收到的正好是發送過來的順序數，和發送的有效數據包一致！

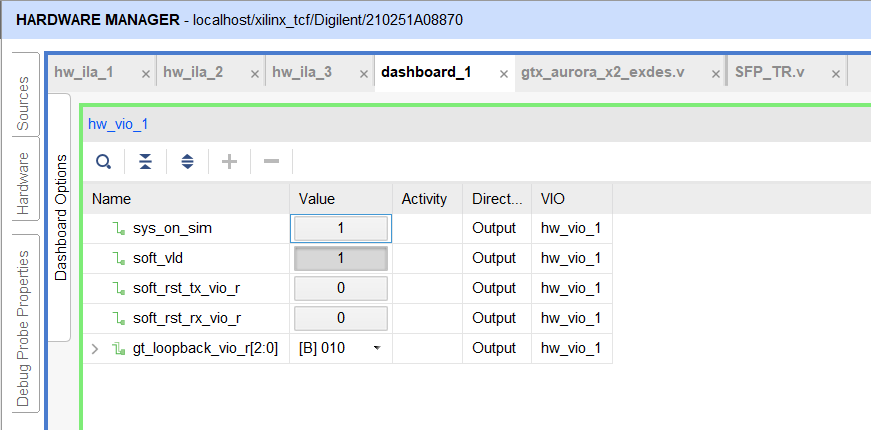

vio調試：

說明：

1.sys_on_sim是總的系統啟動信號

2.soft_vld是控制剩余的復位GT鏈路信號和回環測試的信號
