一. 為什么要實施BSP瘦身計劃

當前RT-Thread倉庫中BSP和.git內容占比約90%，而RT-Thread核心代碼及文檔僅占約100MB，約為3%。為進一步優化用戶體驗，我們計劃了對現有BSP結構進行改進。過去，為了實現開箱即用的快速開發，HAL庫被集成到BSP中，但隨著支持的芯片和BSP數量增加，包體體積顯著增長，且部分HAL內容可能未被充分利用。

為此，我們提出優化方案：將廠商SDK以軟件包形式提供，保留RT-Thread的適配接口，用戶可根據需求靈活選擇所需芯片的SDK并集成到BSP中。這樣既保持了快速開發的便利性，又顯著減小了包體體積，讓RT-Thread更輕量、高效，滿足多樣化的芯片應用場景。

本指南以stm32為例。

二. 操作流程

操作流程大致可以分為三步。以 stm32f4 為例。

（一）. 軟件包索引倉庫更新

軟件包目前統一放到下面的目錄中，bsp中默認選中即可。

https://github.com/RT-Thread/packages/tree/master/peripherals/hal-sdk

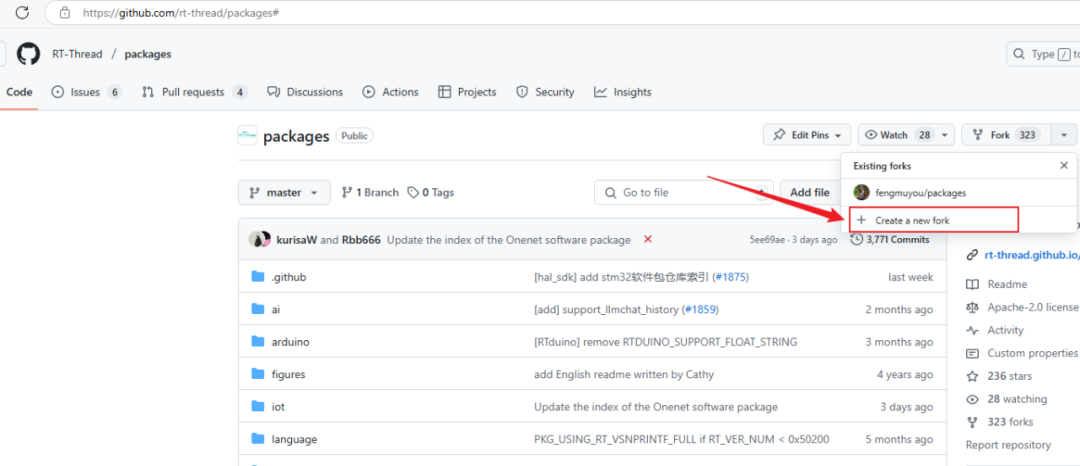

1.fork一份軟件包索引倉庫

倉庫地址：RT-Thread/packages: packages index repository for rt-thread.

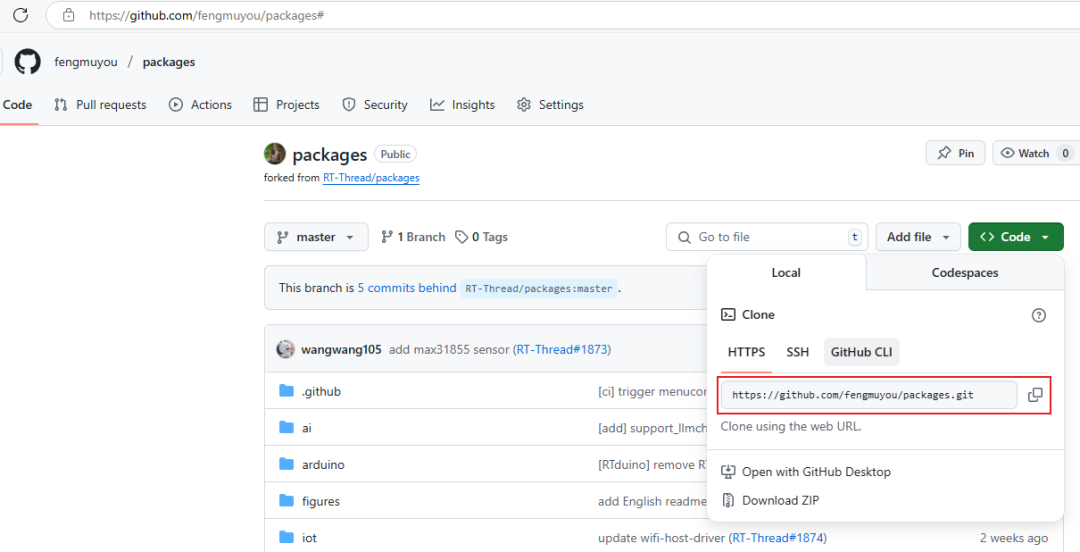

2.將fork的倉庫克隆到本地

gitclonehttps://github.com/fengmuyou/packages.git

3. 打開本地倉庫進行修改

在本地打開克隆的索引倉庫，創建一個新的分支，在packages\peripherals\hal-sdk路徑下創建stm32文件夾

git checkout -b"f4_hal"http://創建一個新分支

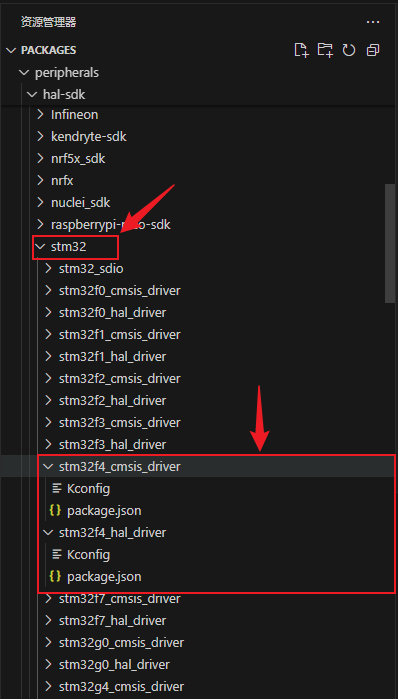

4. 添加stm32f4索引文件夾

在stm32下添加stm32f4_cmsis_driver文件夾和stm32f4_hal_driver文件夾，在兩個文件夾下分別添加Kconfig、package.json這兩個文件

stm32f4_cmsis_drivers

1.Kconfig

# Kconfig file for package stm32f4_cmsis_drivermenuconfig PKG_USING_STM32F4_CMSIS_DRIVER bool"STM32 F4 CMSIS driver package" select PKG_USING_CMSIS_CORE defaultnifPKG_USING_STM32F4_CMSIS_DRIVER config PKG_STM32F4_CMSIS_DRIVER_PATH string default"/packages/peripherals/hal-sdk/stm32/stm32f4_cmsis_driver" choice prompt"Version" help Select the package version config PKG_USING_STM32F4_CMSIS_DRIVER_LATEST_VERSION bool"latest" endchoice config PKG_STM32F4_CMSIS_DRIVER_VER string default"latest" ifPKG_USING_STM32F4_CMSIS_DRIVER_LATEST_VERSIONendif

2.package.json

{ "name":"stm32f4_cmsis_driver", "description":"STM32 F4 CMSIS driver package", "description_zh":"STM32 F4 CMSIS 驅動包", "enable":"PKG_USING_STM32F4_CMSIS_DRIVER", "keywords": [ "stm32f4_cmsis_driver", "STM32" ], "category":"peripherals", "author": { "name":"RT-Thread-packages", "email":"package_team@rt-thread.com", "github":"RT-Thread-packages" }, "license":"Apache-2.0", "repository":"https://github.com/RT-Thread-packages/stm32f4_cmsis_driver", "icon":"unknown", "homepage":"https://github.com/RT-Thread-packages/stm32f4_cmsis_driver#readme", "doc":"unknown", "site": [ { "version":"latest", "URL":"https://github.com/RT-Thread-packages/stm32f4_cmsis_driver.git", "filename":"", "VER_SHA":"master" } ]}

stm32f4_hal_driver

1.Kconfig

# Kconfig file for package stm32f4_hal_drivermenuconfig PKG_USING_STM32F4_HAL_DRIVER bool"STM32 F4 HAL driver package" select PKG_USING_STM32F4_CMSIS_DRIVER defaultnifPKG_USING_STM32F4_HAL_DRIVER config PKG_STM32F4_HAL_DRIVER_PATH string default"/packages/peripherals/hal-sdk/stm32/stm32f4_hal_driver" choice prompt"Version" help Select the package version config PKG_USING_STM32F4_HAL_DRIVER_LATEST_VERSION bool"latest" endchoice config PKG_STM32F4_HAL_DRIVER_VER string default"latest" ifPKG_USING_STM32F4_HAL_DRIVER_LATEST_VERSIONendif

2.package.json

{ "name":"stm32f4_hal_driver", "description":"STM32 F4 HAL driver package", "description_zh":"STM32 F4 HAL 驅動包", "enable":"PKG_USING_STM32F4_HAL_DRIVER", "keywords": [ "stm32f4_hal_driver", "STM32" ], "category":"peripherals", "author": { "name":"RT-Thread-packages", "email":"package_team@rt-thread.com", "github":"RT-Thread-packages" }, "license":"BSD-3-Clause", "repository":"https://github.com/RT-Thread-packages/stm32f4_hal_driver", "icon":"unknown", "homepage":"https://github.com/RT-Thread-packages/stm32f4_hal_driver#readme", "doc":"unknown", "site": [ { "version":"latest", "URL":"https://github.com/RT-Thread-packages/stm32f4_hal_driver.git", "filename":"", "VER_SHA":"master" } ]}

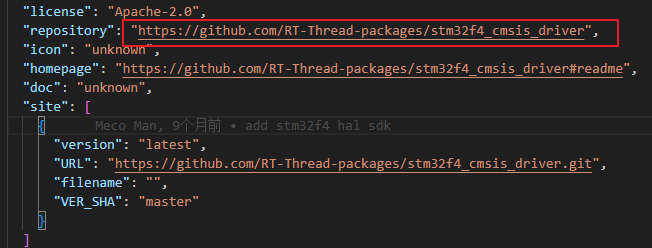

注意！?。。簜}庫地址要保證正確，軟件包才能正確地被拉下來。

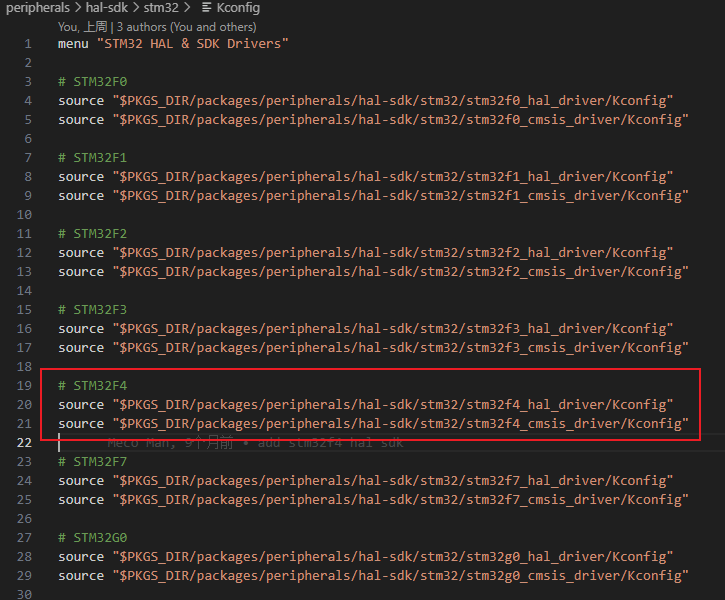

5. 修改Kconfig文件

在stm32文件夾下的 Kconfig 文件里添加配置，確保能找到對應的Kconfig文件

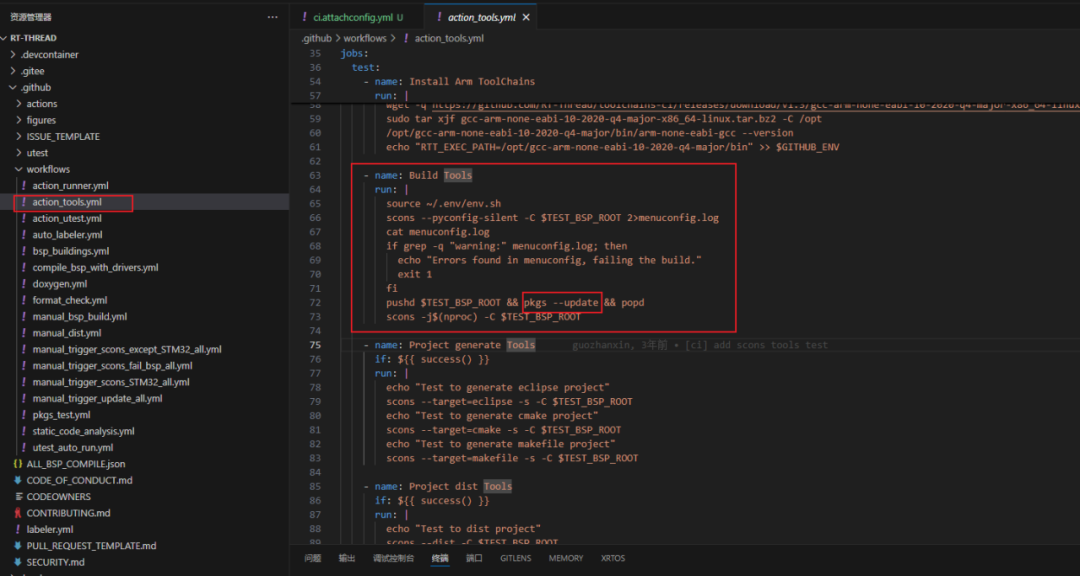

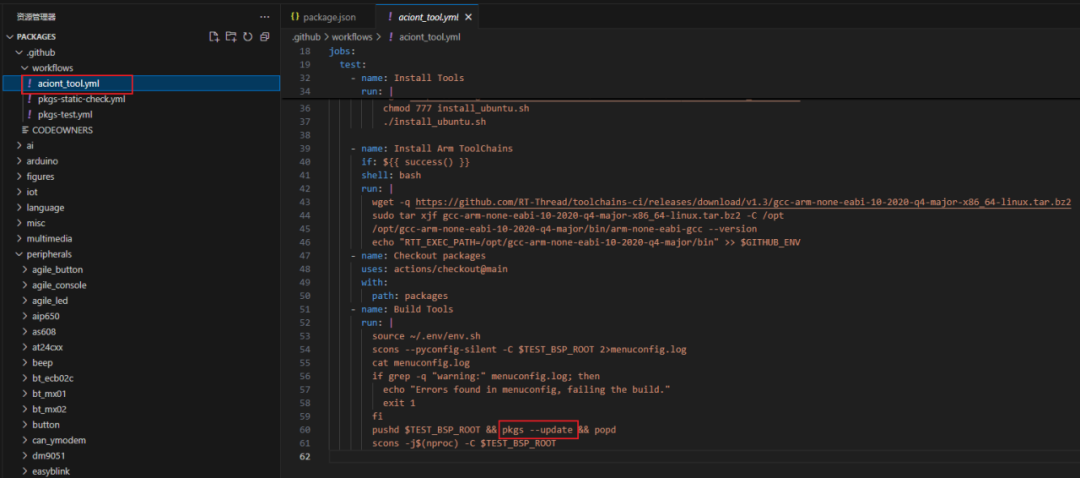

6. 工作流文件修改

在workflows/aciont_tool.yml 文件里添加 pkgs --update，這個修改一次即可，后續添加其他軟件包索引不用再修改。

7. 修改完之后進行提交

gitadd.gitcommit-m "add stm32_f4 軟件包倉庫索引"git push origin f4_hal

8. 創建pr，等待審核合并。

（二）. 軟件包倉庫更新

1. 軟件包分為cmsis與drivers

首先就是分別 forkcmsis與 drivers 兩個軟件包倉庫，并克隆倉庫到本地，在本地創建一個新分支再進行修改。

2. 適配stm32f4_cmsis_driver

創建一個新的分支

git checkout -b f4_cmsis//創建一個新分支

添加 SConscript 文件

添加啟動文件選擇以及system_stm32f4xx.c文件，芯片型號宏定義在 stm32f4xx.h 文件下可以找到。

frombuildingimport*importos# Import environment variablesImport('env')# Get the current working directorycwd = GetCurrentDir()# Initialize include paths and source files listpath = [os.path.join(cwd,'Include')]src = [os.path.join(cwd,'Source','Templates','system_stm32f4xx.c')]# Map microcontroller units (MCUs) to their corresponding startup filesmcu_startup_files = { 'STM32F401xC':'startup_stm32f401xc.s', 'STM32F401xE':'startup_stm32f401xe.s', 'STM32F405xx':'startup_stm32f405xx.s', 'STM32F407xx':'startup_stm32f407xx.s', 'STM32F410Cx':'startup_stm32f410cx.s', 'STM32F410Rx':'startup_stm32f410rx.s', 'STM32F410Tx':'startup_stm32f410tx.s', 'STM32F411xE':'startup_stm32f411xe.s', 'STM32F412Cx':'startup_stm32f412cx.s', 'STM32F412Rx':'startup_stm32f412rx.s', 'STM32F412Vx':'startup_stm32f412vx.s', 'STM32F412Zx':'startup_stm32f412zx.s', 'STM32F413xx':'startup_stm32f413xx.s', 'STM32F415xx':'startup_stm32f415xx.s', 'STM32F417xx':'startup_stm32f417xx.s', 'STM32F423xx':'startup_stm32f423xx.s', 'STM32F427xx':'startup_stm32f427xx.s', 'STM32F429xx':'startup_stm32f429xx.s', 'STM32F437xx':'startup_stm32f437xx.s', 'STM32F439xx':'startup_stm32f439xx.s', 'STM32F446xx':'startup_stm32f446xx.s', 'STM32F469xx':'startup_stm32f469xx.s', 'STM32F479xx':'startup_stm32f479xx.s',}# Check each defined MCU, match the platform and append the appropriate startup fileformcu, startup_fileinmcu_startup_files.items(): ifmcuinenv.get('CPPDEFINES', []): ifrtconfig.PLATFORMin['gcc','llvm-arm']: src += [os.path.join(cwd,'Source','Templates','gcc', startup_file)] elifrtconfig.PLATFORMin['armcc','armclang']: src += [os.path.join(cwd,'Source','Templates','arm', startup_file)] elifrtconfig.PLATFORMin['iccarm']: src += [os.path.join(cwd,'Source','Templates','iar', startup_file)] break# Define the build groupgroup = DefineGroup('STM32F4-CMSIS', src, depend=['PKG_USING_STM32F4_CMSIS_DRIVER'], CPPPATH=path)# Return the build groupReturn('group')

添加stm32_update.py文件，并運行，對啟動文件進行修改

python stm32_update.py//運行stm32_update.py

# Copyright (c) 2006-2022, RT-Thread Development Team## SPDX-License-Identifier: Apache-2.0## Change Logs:# Date Author Notes# 2021-10-11 Meco Man First version# This file is suggested to use under Linux environment.# > python stm32_update.py# update STM32 startup assembly language file:# 1.replace main to entry (GCC)# 2.reduce the heap size as 0x000 (Keil IAR)# 3.extend the GCC stack size as 0x400, which is the same as Keil and IAR startup files.importosimportre# replace 'bl main' to 'bl entry'defstm32update_main2entry(path): oldline ='' newline ='' forroot, dirs, filesinos.walk(path): forfileinfiles: ifos.path.splitext(file)[1] =='.s':# find .s files (Keil MDK) file_path = os.path.join(root,file) flag_need_replace =False withopen(file_path,'r+',)asf: whileTrue: line = f.readline() ifline =='': break elif('bl'inline)and('main'inline):# find 'bl main' oldline = line# bl main newline = line.replace('main','entry')# use 'entry' to replace 'main' flag_need_replace =True# mark that need to be replaced break if(flag_need_replace ==True):# use 'entry' to replace 'main' f.seek(0) content = f.read() f.seek(0) f.truncate() newcontent = content.replace(oldline, newline) f.write(newcontent)#reduce the heap size as 0x000defstm32update_heap2zero(path): oldline ='' newline ='' forroot, dirs, filesinos.walk(path): forfileinfiles: file_path = os.path.join(root,file) ifos.path.splitext(file)[1] =='.s':# find .s files (Keil MDK) withopen(file_path,'r+',)asf: flag_need_replace =False whileTrue: line = f.readline() ifline =='': break re_result = re.match('\\s*Heap_Size\\s+EQU\\s+0[xX][0-9a-fA-F]+', line) ifre_result !=None: oldline = line newline = re.sub('0[xX][0-9a-fA-F]+','0x00000000', oldline) flag_need_replace =True break ifflag_need_replace ==True: f.seek(0) content = f.read() f.seek(0) f.truncate() newcontent = content.replace(oldline, newline) f.write(newcontent) elifos.path.splitext(file)[1] =='.icf':# find .icf files (IAR) withopen(file_path,'r+',)asf: flag_need_replace =False whileTrue: line = f.readline() ifline =='': break re_result = re.match('\\s*define\\s+symbol\\s+__ICFEDIT_size_heap__\\s*=\\s*0[xX][0-9a-fA-F]+', line) ifre_result !=None: oldline = line newline = re.sub('0[xX][0-9a-fA-F]+','0x000', oldline) flag_need_replace =True break ifflag_need_replace ==True: f.seek(0) content = f.read() f.seek(0) f.truncate() newcontent = content.replace(oldline, newline) f.write(newcontent) elifos.path.splitext(file)[1] =='.lds':# find .lds files (GCC) withopen(file_path,'r+',)asf: flag_need_replace =False whileTrue: line = f.readline() ifline =='': break re_result = re.match('\\s*_system_stack_size\\s*=\\s*0[xX][0-9a-fA-F]+', line) ifre_result !=None: oldline = line newline = re.sub('0[xX][0-9a-fA-F]+','0x400', oldline) flag_need_replace =True break ifflag_need_replace ==True: f.seek(0) content = f.read() f.seek(0) f.truncate() newcontent = content.replace(oldline, newline) f.write(newcontent)defstm32_update(path): stm32update_main2entry(path) stm32update_heap2zero(path)if__name__ =="__main__": stm32_update(os.getcwd()) print("STM32 startup assembly language file update successfully!")

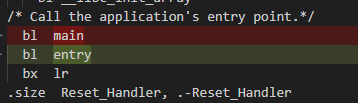

ps：對啟動文件修改主要是將gcc下啟動文件的入口函數由 main 改成 entry。

以及將arm下啟動文件的堆的大小改為0。

修改完成后提交

gitadd.gitcommit-m "adapt stm32f4 cmsis for rtt"git push origin f4_cmsis

創建pr，等待審核合并。

3. 適配stm32f4_hal_driver

創建一個新的分支

git checkout -b f4_drivers//創建一個新分支

添加 SConscript 文件，可根據 rt-thread\bsp\stm32\libraries\STM32F4xx_HAL 文件夾下的 SConscript 對應著修改，改變文件引用的路徑。

frombuilding import *import oscwd = GetCurrentDir()path = [os.path.join(cwd,'Inc')]src_path = os.path.join(cwd,'Src')path += [os.path.join(cwd,'Inc/Legacy')]CPPDEFINES = ['USE_HAL_DRIVER']src = [os.path.join(src_path,'stm32f4xx_hal.c'),os.path.join(src_path,'stm32f4xx_hal_cec.c'),os.path.join(src_path,'stm32f4xx_hal_cortex.c'),os.path.join(src_path,'stm32f4xx_hal_crc.c'),os.path.join(src_path,'stm32f4xx_hal_cryp.c'),os.path.join(src_path,'stm32f4xx_hal_cryp_ex.c'),os.path.join(src_path,'stm32f4xx_hal_dma.c'),os.path.join(src_path,'stm32f4xx_hal_dma_ex.c'),os.path.join(src_path,'stm32f4xx_hal_pwr.c'),os.path.join(src_path,'stm32f4xx_hal_pwr_ex.c'),os.path.join(src_path,'stm32f4xx_hal_rcc.c'),os.path.join(src_path,'stm32f4xx_hal_rcc_ex.c'),os.path.join(src_path,'stm32f4xx_hal_rng.c'),os.path.join(src_path,'stm32f4xx_hal_gpio.c'),]ifGetDepend(['RT_USING_SERIAL'])orGetDepend(['RT_USING_NANO','RT_USING_CONSOLE']): src += [os.path.join(src_path,'stm32f4xx_hal_uart.c')] src += [os.path.join(src_path,'stm32f4xx_hal_usart.c')]ifGetDepend(['RT_USING_I2C']): src += [os.path.join(src_path,'stm32f4xx_hal_i2c.c')] src += [os.path.join(src_path,'stm32f4xx_hal_i2c_ex.c')]ifGetDepend(['RT_USING_SPI']): src += [os.path.join(src_path,'stm32f4xx_hal_spi.c')] src += [os.path.join(src_path,'stm32f4xx_hal_qspi.c')]ifGetDepend(['RT_USING_USB']): src += [os.path.join(src_path,'stm32f4xx_hal_pccard.c')] src += [os.path.join(src_path,'stm32f4xx_hal_pcd.c')] src += [os.path.join(src_path,'stm32f4xx_hal_pcd_ex.c')] src += [os.path.join(src_path,'stm32f4xx_hal_hcd.c')] src += [os.path.join(src_path,'stm32f4xx_ll_usb.c')]ifGetDepend(['RT_USING_CAN']): src += [os.path.join(src_path,'stm32f4xx_hal_can.c')]ifGetDepend(['RT_USING_HWTIMER'])orGetDepend(['RT_USING_PWM'])orGetDepend(['RT_USING_PULSE_ENCODER']): src += [os.path.join(src_path,'stm32f4xx_hal_tim.c')] src += [os.path.join(src_path,'stm32f4xx_hal_tim_ex.c')] src += [os.path.join(src_path,'stm32f4xx_hal_lptim.c')]ifGetDepend(['BSP_USING_ETH']): ifGetDepend(['BSP_ETH_LEGACY_MODULE_ENABLED']): src += [os.path.join(src_path,'Legacy/stm32f4xx_hal_eth.c')] else: src += [os.path.join(src_path,'stm32f4xx_hal_eth.c')]ifGetDepend(['RT_USING_ADC']): src += [os.path.join(src_path,'stm32f4xx_hal_adc.c')] src += [os.path.join(src_path,'stm32f4xx_hal_adc_ex.c')]ifGetDepend(['RT_USING_DAC']): src += [os.path.join(src_path,'stm32f4xx_hal_dac.c')] src += [os.path.join(src_path,'stm32f4xx_hal_dac_ex.c')]ifGetDepend(['RT_USING_RTC']): src += [os.path.join(src_path,'stm32f4xx_hal_rtc.c')] src += [os.path.join(src_path,'stm32f4xx_hal_rtc_ex.c')]ifGetDepend(['RT_USING_WDT']): src += [os.path.join(src_path,'stm32f4xx_hal_iwdg.c')] src += [os.path.join(src_path,'stm32f4xx_hal_wwdg.c')]ifGetDepend(['RT_USING_SDIO']): src += [os.path.join(src_path,'stm32f4xx_ll_sdmmc.c')] src += [os.path.join(src_path,'stm32f4xx_hal_sd.c')]ifGetDepend(['RT_USING_AUDIO']): src += [os.path.join(src_path,'stm32f4xx_hal_i2s.c')] src += [os.path.join(src_path,'stm32f4xx_hal_i2s_ex.c')] src += [os.path.join(src_path,'stm32f4xx_hal_sai.c')] src += [os.path.join(src_path,'stm32f4xx_hal_sai_ex.c')]ifGetDepend(['RT_USING_MTD_NOR']): src += [os.path.join(src_path,'stm32f4xx_hal_nor.c')]ifGetDepend(['RT_USING_MTD_NAND']): src += [os.path.join(src_path,'stm32f4xx_hal_nand.c')]ifGetDepend(['BSP_USING_FMC']): src += [os.path.join(src_path,'stm32f4xx_ll_fmc.c')] src += [os.path.join(src_path,'stm32f4xx_ll_fsmc.c')]ifGetDepend(['BSP_USING_SDRAM']): src += [os.path.join(src_path,'stm32f4xx_hal_sdram.c')]ifGetDepend(['BSP_USING_EXT_FMC_IO']): src += [os.path.join(src_path,'stm32f4xx_hal_sram.c')]ifGetDepend(['BSP_USING_ON_CHIP_FLASH']): src += [os.path.join(src_path,'stm32f4xx_hal_flash.c')] src += [os.path.join(src_path,'stm32f4xx_hal_flash_ex.c')] src += [os.path.join(src_path,'stm32f4xx_hal_flash_ramfunc.c')]ifGetDepend(['BSP_USING_LTDC']): src += [os.path.join(src_path,'stm32f4xx_hal_ltdc.c')] src += [os.path.join(src_path,'stm32f4xx_hal_ltdc_ex.c')] src += [os.path.join(src_path,'stm32f4xx_hal_dma2d.c')] src += [os.path.join(src_path,'stm32f4xx_ll_dma2d.c')] src += [os.path.join(src_path,'stm32f4xx_hal_dsi.c')]group= DefineGroup('STM32F4-HAL', src, depend = ['PKG_USING_STM32F4_HAL_DRIVER'], CPPPATH = path, CPPDEFINES = CPPDEFINES)Return('group')

修改完成后提交

gitadd.gitcommit-m "adapt stm32f4 drivers for rtt"git push origin f4_drivers

創建pr，等待審核合并。

（三）. 主線倉庫更新

這里bsp的修改以stm32f407-rt-spark為例，具體的需要把f4系列所有的bsp都進行修改，編譯測試通過后再提交。

1. 準備工作

fork 一份最新的主線倉庫，克隆到本地，基于master分支創建一個新的分支。

創建一個新的分支

git checkout -bf4_sdk

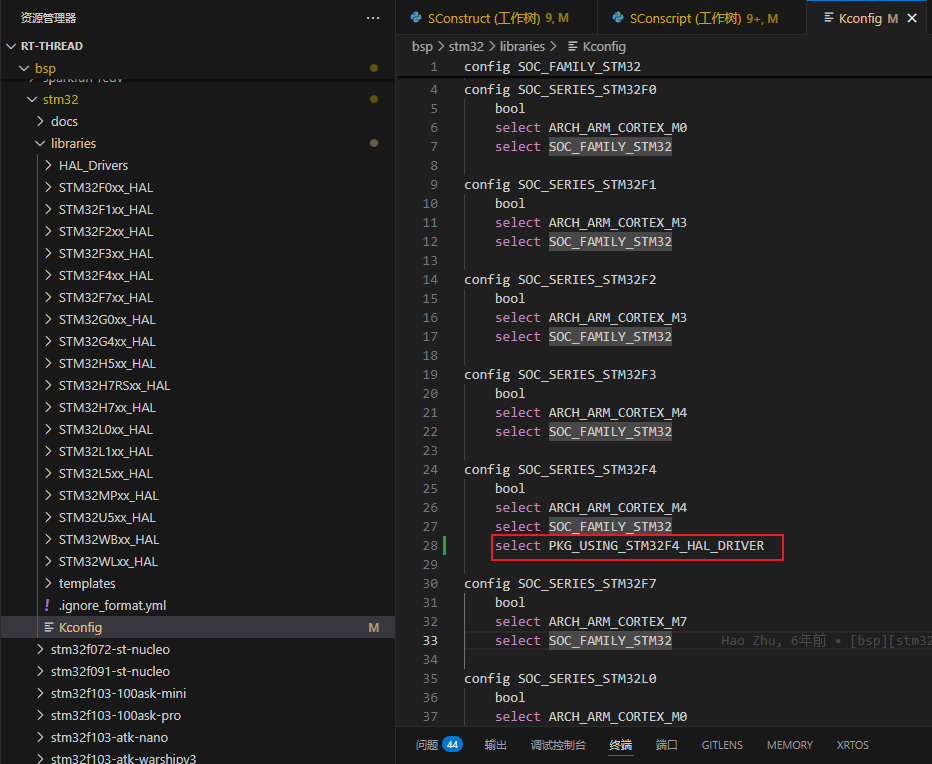

2. 在主線倉庫目錄（bsp\stm32\libraries\Kconfig）中 select PKG_USING_STM32xx_HAL_DRIVER

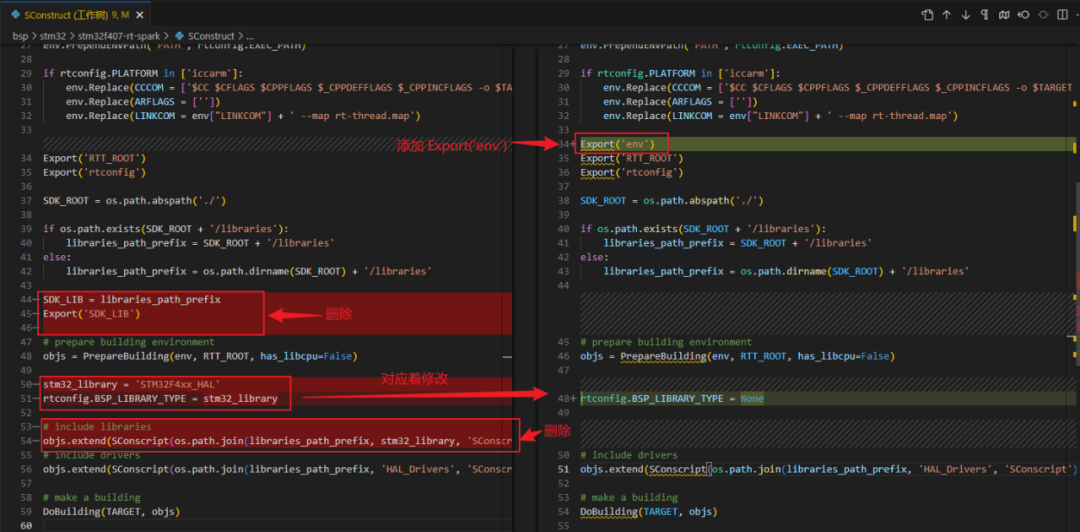

3. 修改SConstruct文件

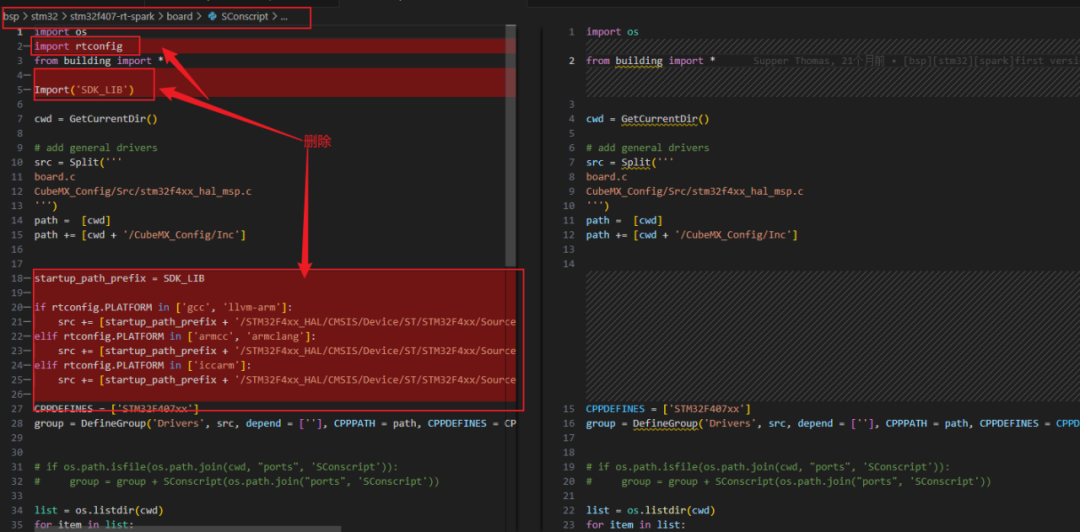

4. board文件夾下的SConscript

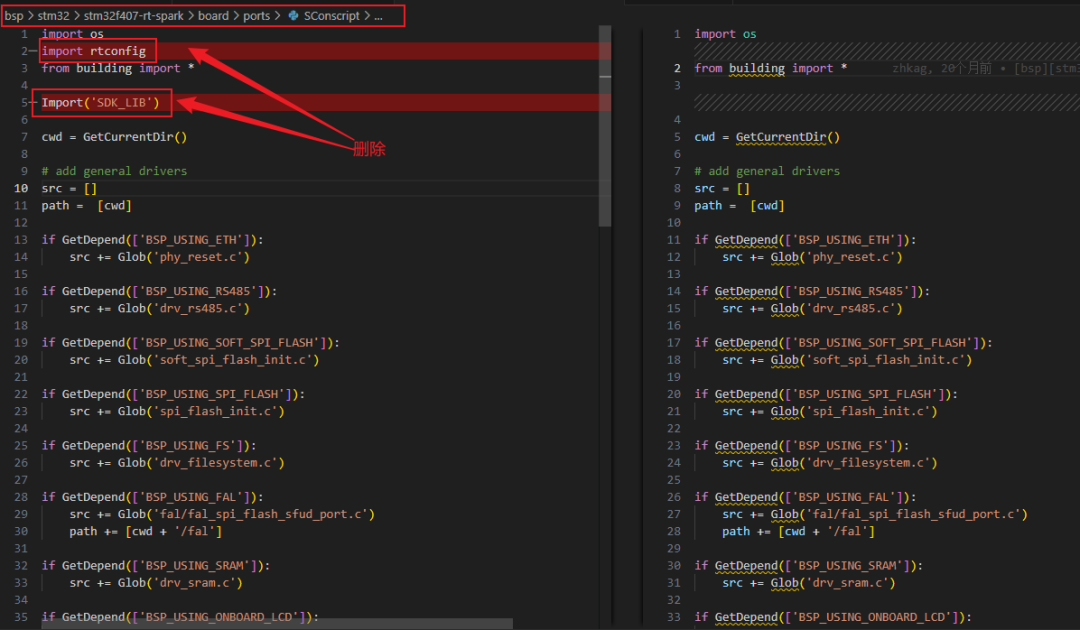

5. 在port文件夾下添加SConscript文件

ps: stm32f407-rt-spark 的 port 文件夾下有SConscript文件，我們只需簡單的修改即可。有些bsp的port文件下沒有SConscript文件，需要我們自己添加，可以參考這里進行修。

6. 在 README.md 文件添加說明

在快速上手下添加說明

中文版本

**請注意?。?！**在執行編譯工作前請先打開ENV執行以下指令（該指令用于拉取必要的HAL庫及CMSIS庫，否則無法通過編譯）：```bashpkgs --update```

英文版本

**Attentionplease！?。?*Beforethe compilation work, please openENVand execute the following command (thiscommand is used to pull the necessaryHALlibrary andCMSISlibrary, otherwise it cannot be compiled)：```bashpkgs --update```

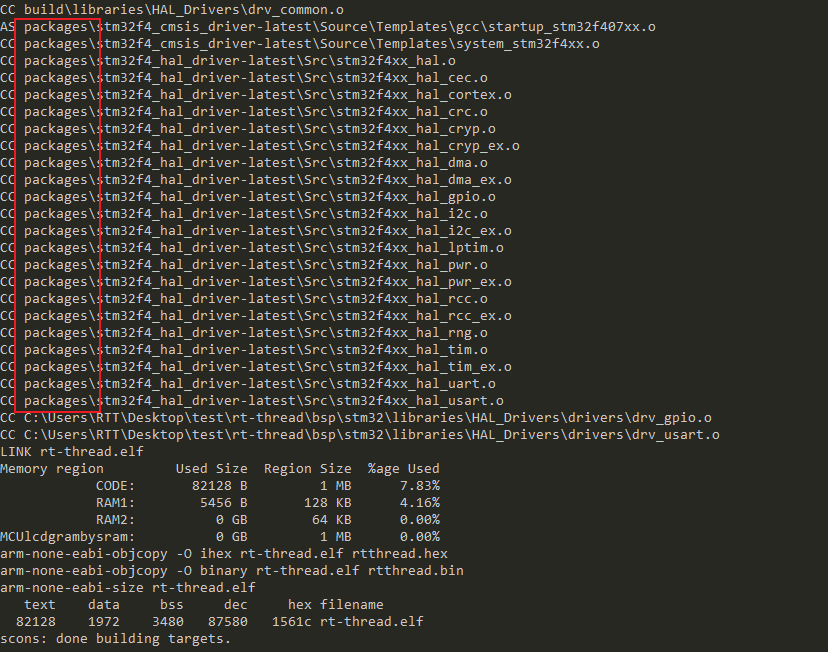

7.編譯結果

確保能編譯 packages 下的 f4_hal 文件

8. 燒錄測試

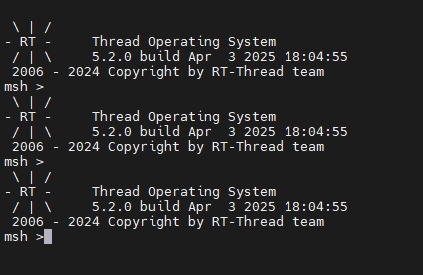

將rt-thread.elf文件燒錄到板子上，觀察是否能夠正常運行。

ps：板子支持的一些外設也需要在env中開啟，進行編譯測試。

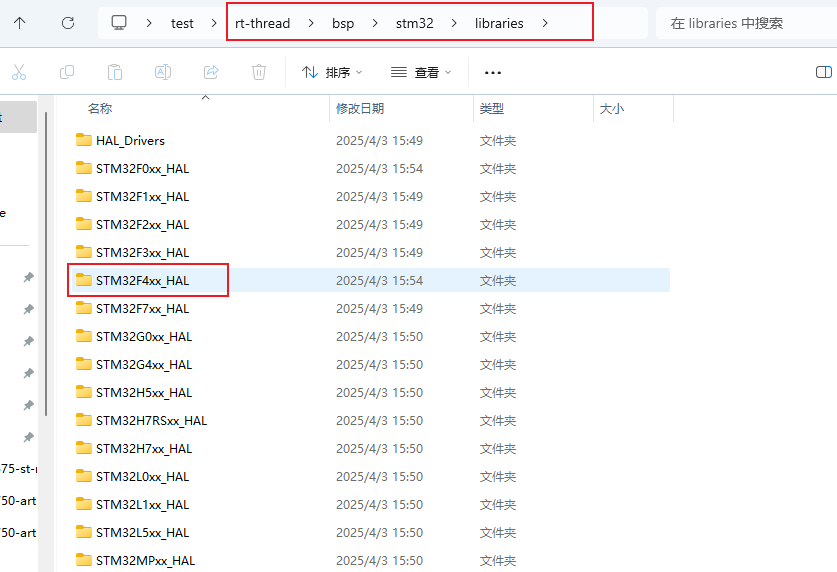

9. 刪除主線上的STM32F4_HAL驅動

ps: 請把f4系列所有的bsp都進行修改，測試通過后在刪除主線上的 STM32F4_HAL 驅動。

10.修改工作流文件

在workflows/aciont_tool.yml 文件里添加 pkgs --update，這個修改一次即可，后續添加其他修改其他bsp不用再修改。

11.提交到遠程倉庫

全部測試沒問題后，提交的遠程倉庫。

gitadd.gitcommit-m "bsp:Separate STM32F4 HAL drivers"git push origin f4_sdk

12. 創建pr，等待審核合并。
