MAX16065, MAX16066 12/8通道閃存配置系統(tǒng)管理器，提供非易失故障寄存器

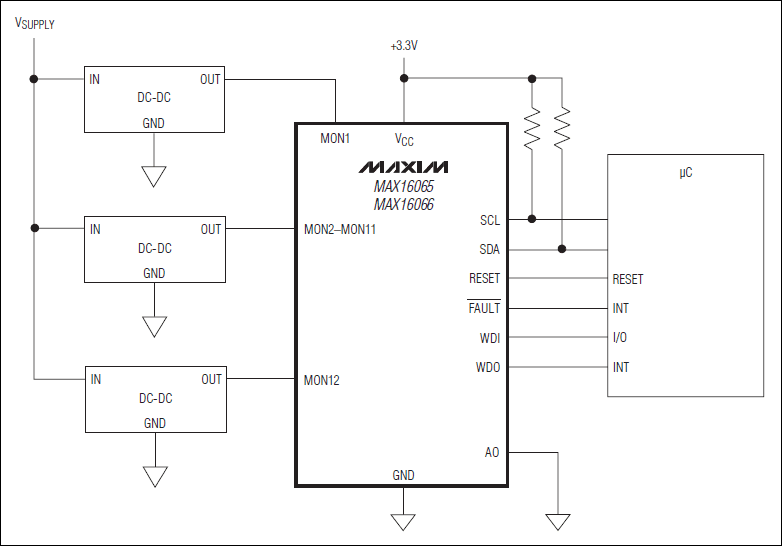

Description

The MAX16065/MAX16066 flash-configurable system managers monitor and sequence multiple system voltages. The MAX16065/MAX16066 can also accurately monitor (±2.5%) one current channel using a dedicated high-side current-sense amplifier. The MAX16065 manages up to twelve system voltages simultaneously, and the MAX16066 manages up to eight supply voltages. These devices integrate a selectable differential or single-ended analog-to-digital converter (ADC) and configurable outputs for sequencing power supplies. Device configuration information, including overvoltage and undervoltage limits, timing settings, and the sequencing order is stored in nonvolatile flash memory. During a fault condition, fault flags and channel voltages can be automatically stored in the nonvolatile flash memory for later read-back.

The internal 1% accurate 10-bit ADC measures each input and compares the result to one overvoltage, one undervoltage, and one early warning limit that can be configured as either undervoltage or overvoltage. A fault signal asserts when a monitored voltage falls outside the set limits. Up to three independent fault output signals are configurable to assert under various fault conditions.

Because the MAX16065/MAX16066 support a power-supply voltage of up to 14V, they can be powered directly from the 12V intermediate bus in many systems.

The integrated sequencer provides precise control over the power-up and power-down order of up to twelve (MAX16065) or up to eight (MAX16066) power supplies. Eight outputs (EN_OUT1–EN_OUT8) are configurable with charge-pump outputs to directly drive external n-channel MOSFETs.

The MAX16065/MAX16066 include eight/six programmable general-purpose inputs/outputs (GPIO_s). GPIO_s are flash configurable as dedicated fault outputs, as a watchdog input or output, or as a manual reset.

The MAX16065/MAX16066 feature nonvolatile fault memory for recording information during system shutdown events. The fault logger records a failure in the internal flash and sets a lock bit protecting the stored fault data from accidental erasure. An SMBus? or a JTAG serial interface configures the MAX16065/MAX16066. The MAX16065 is available in a 48-pin, 7mm x 7mm, TQFN package, and the MAX16066 is available in a 40-pin, 6mm x 6mm, TQFN package. Both devices are fully specified from -40°C to +85°C.

Key Features

Operate from 2.8V to 14V
±2.5% Current-Monitoring Accuracy
1% Accurate 10-Bit ADC Monitors 12/8 Voltage Inputs
Single-Ended or Differential ADC for System Voltage/Current Monitoring
Integrated High-Side Current-Sense Amplifier
12/8 Monitored Inputs with Overvoltage/Undervoltage/Early Warning Limit
Nonvolatile Fault Event Logger
Power-Up and Power-Down Sequencing Capability
Independent Secondary Sequence Block
12/8 Outputs for Sequencing/Power-Good Indicators
Two Programmable Fault Outputs and One Reset Output
Eight General-Purpose Inputs/Outputs Configurable as:
Dedicated Fault Outputs
Watchdog Timer Function
Manual Reset
Margin Enable
SMBus (with Timeout) or JTAG Interface
Flash Configurable Time Delays and Thresholds
-40°C to +85°C Operating Temperature Range

Applications/Uses

Networking Equipment
?Servers
?Storage/Raid Systems
?Telecom Equipment (Base Stations, Access)
?
