概述

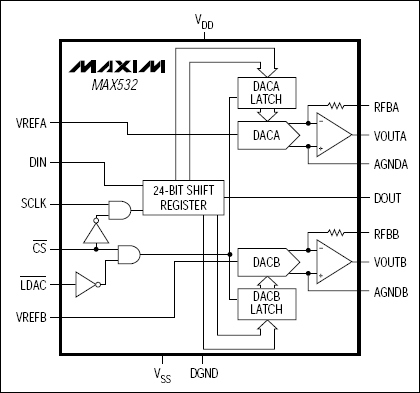

The MAX532 is a complete, dual, serial-input, 12-bit multiplying digital-to-analog converter (MDAC) with output amplifiers. No external user trims are required to achieve full specified performance. The MAX532's 3-wire serial interface minimizes the number of package pins, so it uses less board space than parallel-interface parts. The interface is SPI?, QSPI? and Microwire? compatible. A serial output, DOUT, allows cascading of two or more MAX532s and read-back of the data written to the device.

The device's serial interface minimizes digital-noise feed-through from its logic pins to its analog outputs. Serial interfacing also simplifies opto-coupler-isolated or transformer-isolated applications. The MAX532 is specified with ±12V to ±15V power supplies. All logic inputs are TTL and CMOS compatible. It comes in space-saving 16-pin DIP and wide SO packages.

?

Two 12-Bit MDACs with Output Amplifiers

Fast, 6MHz 3-Wire Interface

SPI, QSPI, and Microwire Compatible

±12V Output Swing

±10mA Output Current

2.5μs Settling Time to ±1/2LSB

Guaranteed Monotonic Over Temperature

Low Integral Nonlinearity: ±1/2LSB Max

Low Gain Tempc 2ppm/°C

Operates from ±12V to ±15V Supplies

Power-On Reset

Available in 16-Pin DIP and Wide SO Packages
